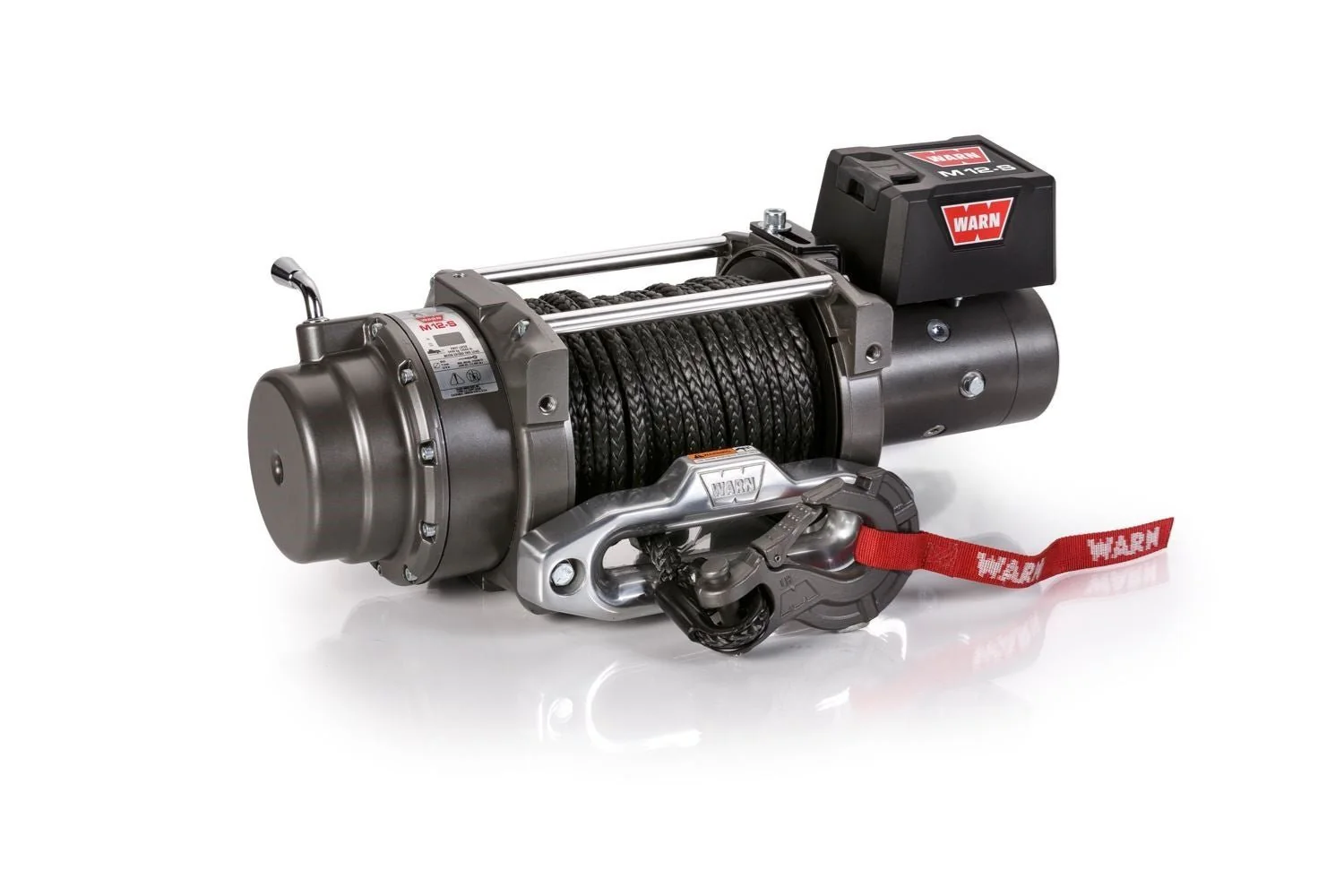

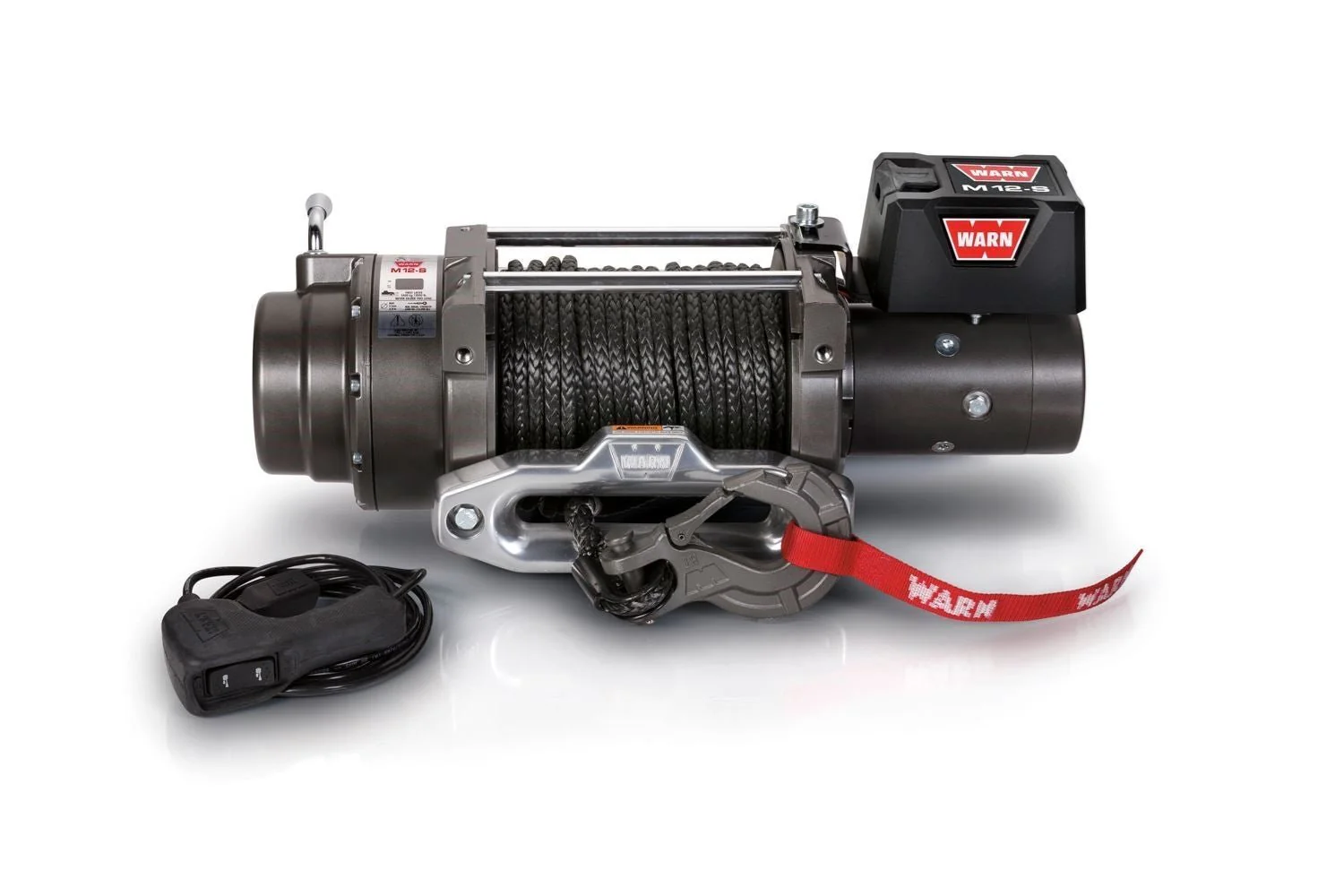

Warn 97720 M12-S Electric Winch - 12,000 lbs. Pull Rating, 100 ft. Synthetic Rope
WARN M12-S Winch – 12,000 lb Synthetic Rope | Heavy-Duty Performance
Big torque, 12,000 lbs. of pulling power, and a fast no-load retrieval speed make the WARN M12-S the workhorse you need for full-size trucks and demanding recovery. Built for heavy-duty use, this large-frame winch combines raw strength with proven reliability to get the job done every time.
Key Features
-
12,000 lb (5,440 kg) pulling capacity – built for big trucks and heavy loads
-
Max line pull speed: 12,000 lbs / 3.86 ft per minute
-
Series-wound, high-speed motor – delivers both fast line speed and strong pulls
-
Durable 3-stage planetary geartrain – ensures smooth and reliable operation
-
Superior braking system – provides confident load control during winching
-
Remote-mount control box – allows flexible mounting options
-
Remote control with 12' (3.7m) lead – easy, safe operation at a distance
-
125 ft of 3/8" steel cable – long reach with dependable strength
-
Chip-resistant powder-coated finish – corrosion and impact protection
-
Includes mounting hardware (winch mount sold separately)
Specs
-
Rated Line Pull: 12,000 lbs (5,440 kg) single-line
-
Motor: 12V DC, series wound
-
Electrical Controls: Contactor
-
Remote Control: Remote switch with 12’ (3.7m) lead
-
Geartrain: 3-stage planetary
-
Gear Ratio: 261:1
-
Clutch (Freespooling): Rotating ring gear
-
Brake: Automatic mechanical cone
-

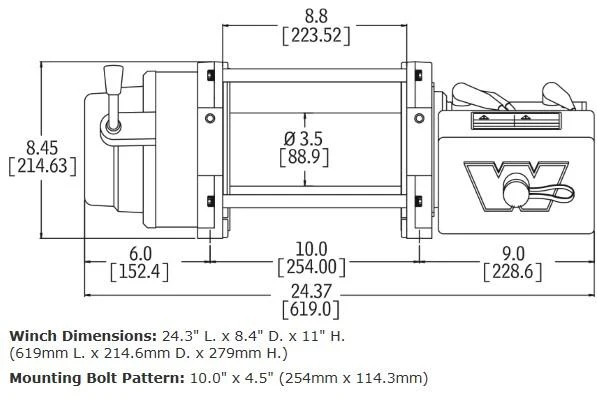

Drum Diameter/Length: 3.5” / 8.2” (9 cm / 21 cm)
-
Rope: 3/8” x 100’ (9.5 mm x 30 m) Spydura synthetic rope
-
Fairlead: Aluminum hawse
-
Recommended Battery: 650 CCA minimum for winching
-
Battery Leads: 2 gauge, 72” (1.83 m)
-
Finish: Argent gray powder coat
-
Weight: 102 lbs (46 kg)
-
Warranty: Limited lifetime (mechanical components); 7 years (electrical components)
