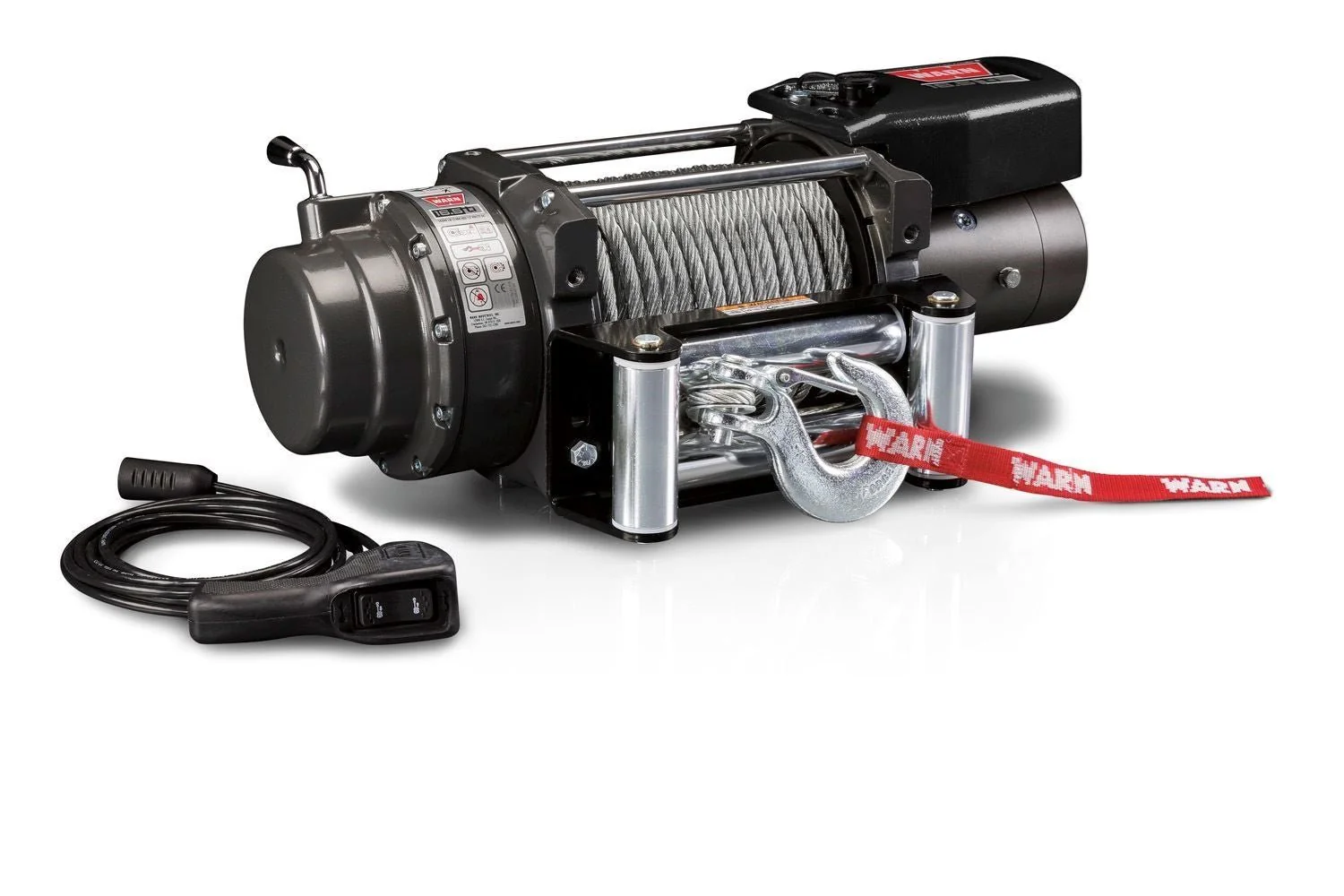

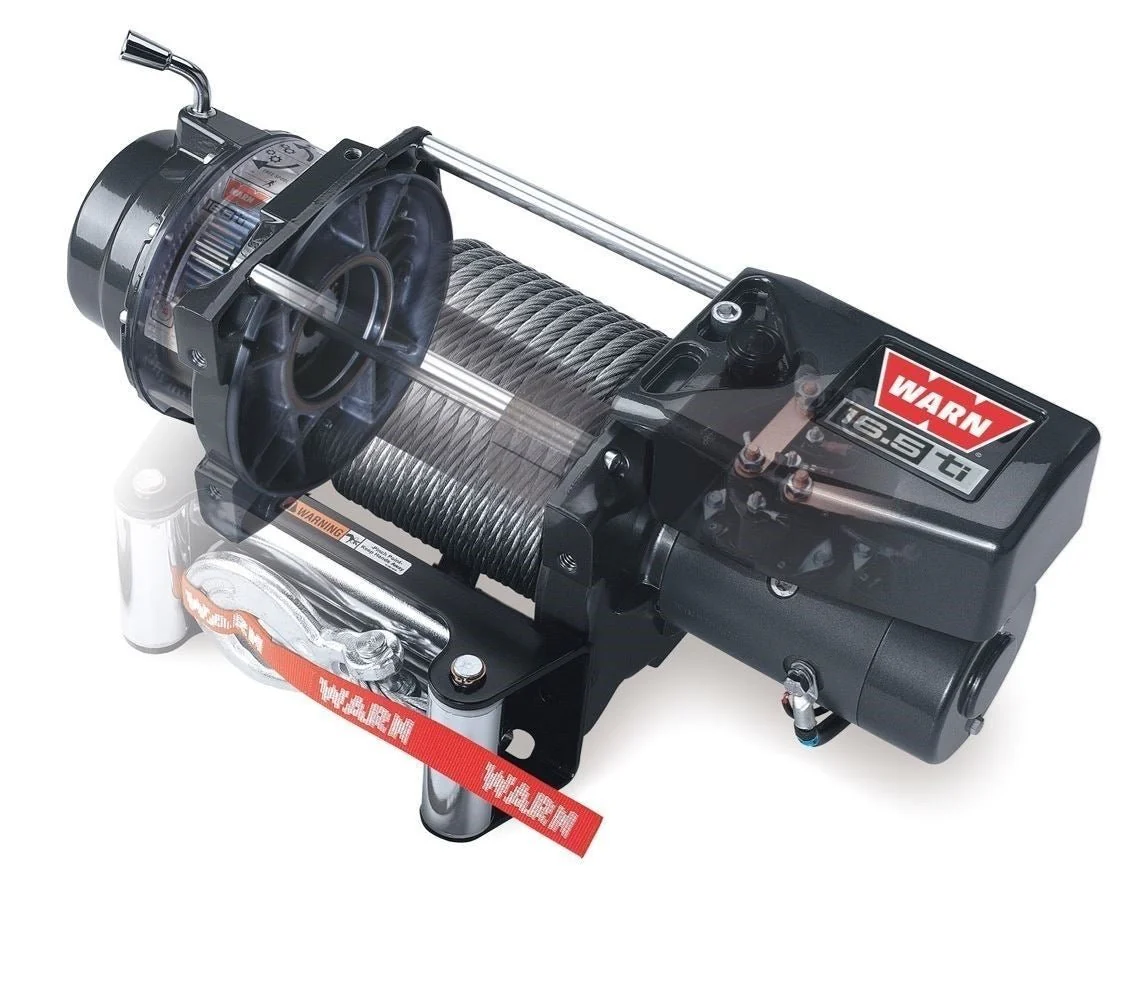

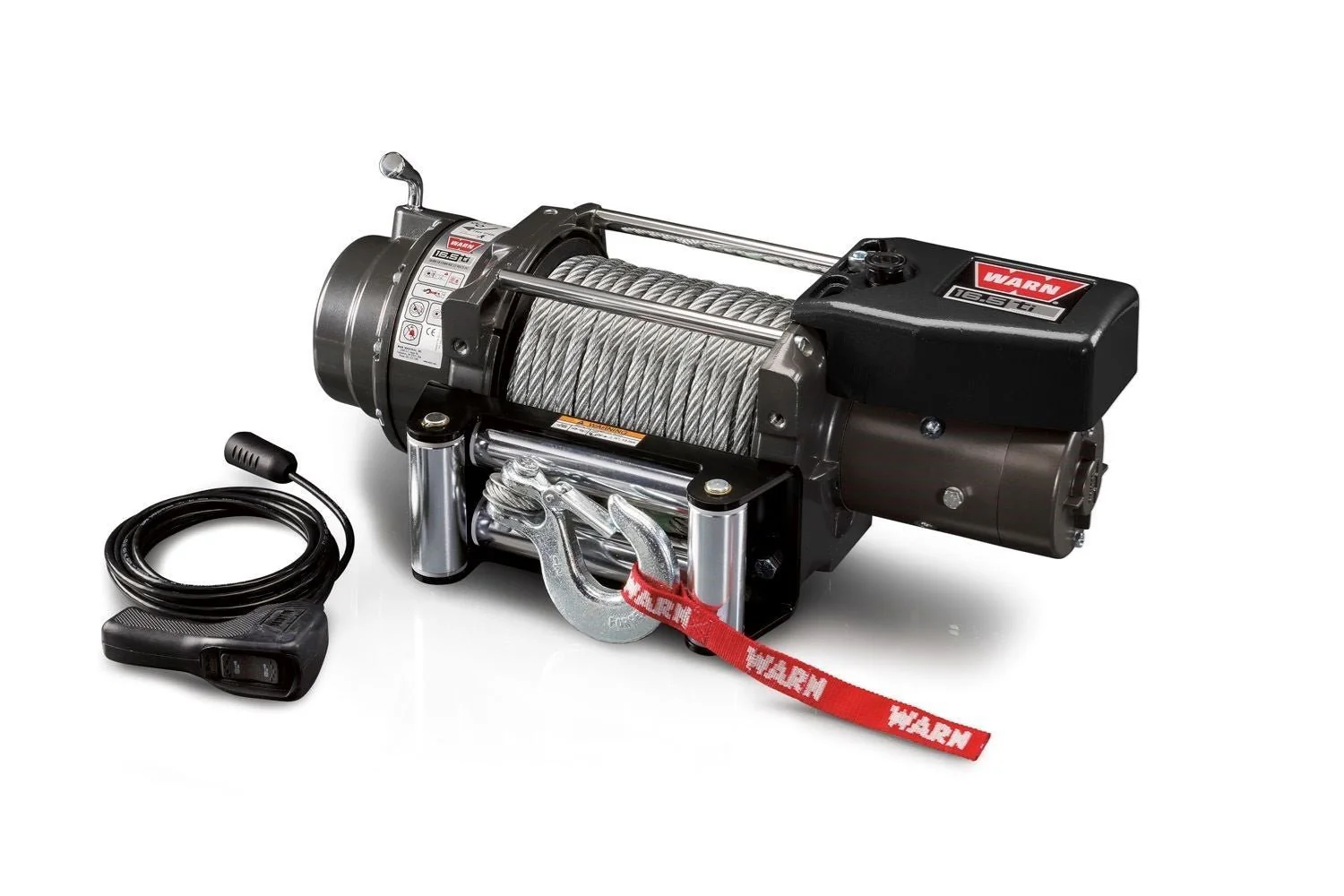

WARN 16.5ti Thermometric Winch – 16,500 lb Capacity | Heavy-Duty Recovery

The WARN 16.5ti is the ultimate heavy-duty winch, delivering a massive 16,500 lbs. of pulling power with advanced thermometric technology for operator feedback and control. Built for the toughest jobs, this winch combines strength, speed, and reliability, making it the most advanced high-capacity winch in WARN’s lineup.

Key Features:

• 16,500 lb Pulling Capacity – Industry-leading strength for the biggest trucks and heaviest recovery needs.

• Thermometric Technology – Provides real-time feedback with an LED indicator to prevent overheating.

• Extreme-Duty Sealing – Protects internal components from water, mud, and harsh environments.

• High-Speed Series-Wound Motor – Delivers faster line speeds with lower amp draw for efficient performance.

• Exclusive Brake Design – Ensures superior load control and safe operation.

• Durable Geartrain – 3-stage planetary system for smooth, reliable pulls.

• Protective Build – Aluminum control box cover and chip-resistant powder-coated finish for corrosion resistance.

• Wire Rope – Equipped with 90' of 7/16" aircraft-grade steel cable and roller fairlead.

• Remote Control – 12’ handheld remote with integrated thermometric LED feedback.

• Warranty – Limited lifetime (mechanical) and 7-year (electrical).

Features

• Extreme-duty sealing helps protect the winch from the outside elements
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Exclusive brake design provides superior control while winching
• Aluminum control box cover for added protection of the electronics
• Durable 3-stage planetary geartrain for smooth, reliable, operation
• Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
• Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
• 90' of 7/16" (27m of 11mm) diameter wire rope
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.



Specifications

• Line Material: Steel
• Maximum Pull Rating: 16,500 Pounds
• Remote Type: Wired
• Brake: Direct Drive Cone
• Color: Gray
• Drive Gear Type: Planetary
• Electrical Control Type: Solenoid
• Fairlead Type: Roller
• Freespooling: Yes
• Gear Reduction Ratio: 315:1
• Includes Mounting Hardware: No
• Line Diameter: 7/16 Inch
• Line Length: 90 Feet
• Max Amp Draw / Line Pull: 507 Max Amp Draw/ 16500 Pound
• Max Load Line Speed: 3.24 Feet Per Minute
• Meets SAE J706 Standard: No
• Motor Horsepower: 4.6 Horsepower
• Motor Type: Series Wound
• Mounting Hole: 4
• Mounting Pattern Length: 10 Inch
• Mounting Pattern Width: 4.5 Inch
• Quantity: Sold individually
• Recommended Use: Trucks and SUV
• Thermal Shutoff: No
• Type: Electric
• Voltage: 12 Volts

Warranty

• Warranty: Limited Lifetime Manufacturer's Warranty For Mechanical Components
