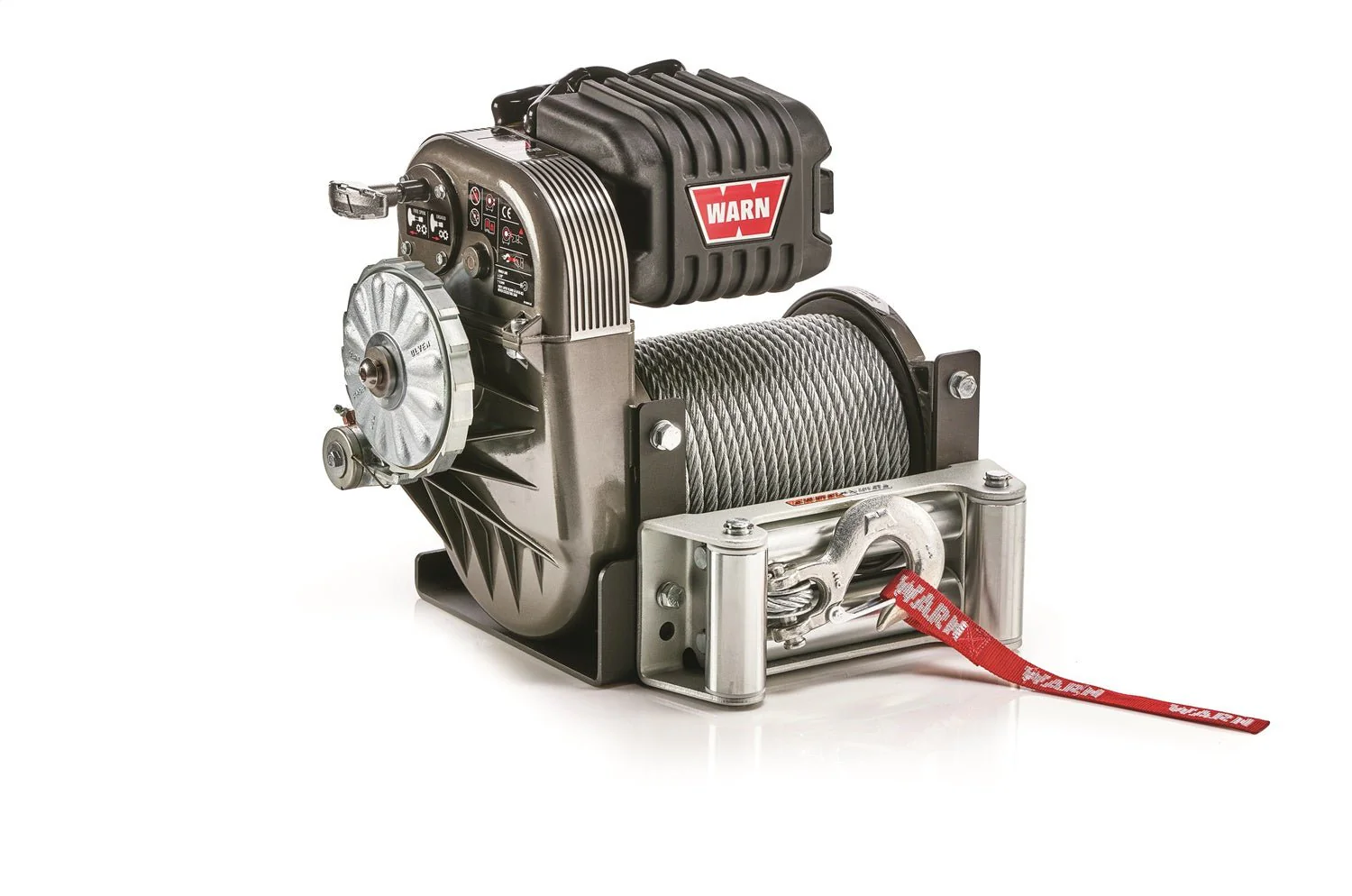

WARN M8274 Winch – 10,000 lb Steel Rope | Upright Icon, Made in USA

The WARN M8274 is the most iconic winch ever built—now evolved with more power, modern upgrades, and the same legendary speed and durability off-roaders trust. With a new 6 HP motor, 10,000 lb pulling capacity, and 150’ of aircraft-grade steel rope, the M8274 delivers unmatched performance for today’s larger, heavier rigs.

Key Features:

• 10,000 lb pulling capacity with 150’ of 3/8” aircraft-grade steel rope

• High-output 6 HP motor for faster, stronger recovery power

• IP68-rated Albright® contactor for maximum reliability and control

• Upright design offers the fastest line speed of any WARN winch

• Ergonomic stainless steel clutch T-handle for easier operation

• Upgraded internals with Oilite® bushings and stronger brake shaft assembly

• Restyled polymer control pack housing blends classic style with modern design

• Proudly made in the USA in Clackamas, Oregon

Features

• High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.) - ideal for today's larger, heavier vehicles
• IP68 waterproof Albright electrical contactor for the ultimate in reliability and control
• Restyled high-strength polymer control pack housing for a modern twist on classic styling
• Ergonomic stainless steel clutch T-handle is easier to use than before
• Two Oilite bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
• Bolt-and-washer assembly replaces retaining ring on brake shaft
• Made in the USA in Clackamas, Oregon

Specs

• Rated Line Pull = 10,000 lbs.
• Voltage = 12V
• Motor = 6 HP
• Remote Control = Remote switch, 12 ft. lead
• Gear Ratio = 134.1
• Weight = 54.9 lbs.
• Wire Rope = 125 ft. of 3/8
• Fairlead = Roller
• Type of Winch = Electric
• 125' of 3/8" diameter aircraft-grade steel cable
• High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)
• IP68 waterproof Albright electrical contractor for the ultimate in reliability and control
• Restyled high-strength polymer control pack housing for a modern twist on classic styling
• Ergonomic stainless steel clutch T-handle is easier to use than before
• Two Oilite bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
• Bolt-and-washer assembly replaces retaining ring on brake shaft
• Made in the USA in Clackamas, Oregon
