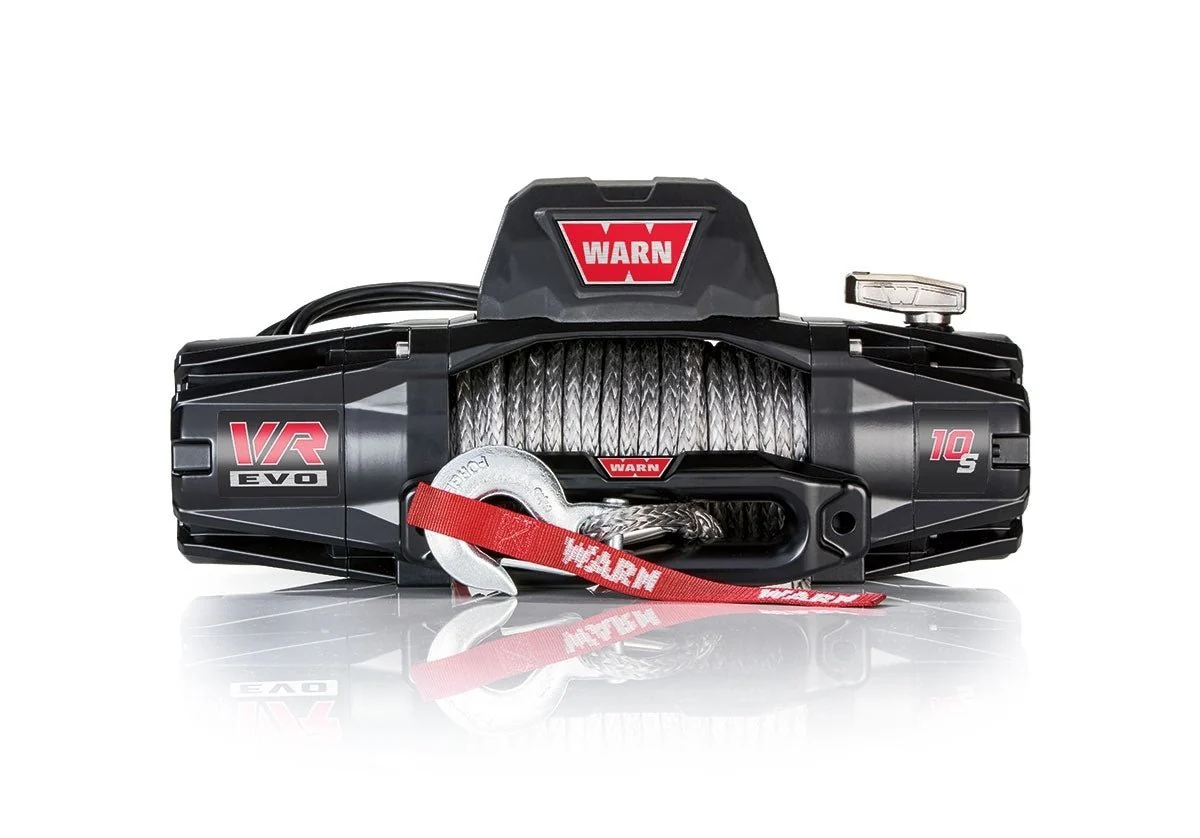

WARN VR EVO 10-S Winch – 10,000 lb | Synthetic Rope

The WARN VR EVO 10 is built for ½-ton pickups, Jeeps, and larger SUVs—delivering the ideal balance of pulling power, speed, and reliability. With a 10,000 lb capacity, IP68-rated waterproof construction, and tactical styling, it’s the ultimate standard-duty winch at a price that won’t break your budget.

Key Features

• 10,000 lb Pulling Capacity – Perfect for ½-ton trucks, Jeeps, and SUVs.

• Durable Synthetic Rope – Equipped with 90' of 3/8" Synthetic rope and a Hawse fairlead.

• IP68 Waterproof Construction – Sealed to keep out water, mud, and dust for dependable recovery in all conditions.

• Series-Wound Motor & Planetary Gear Train – Delivers faster line speed under load with reduced amp draw.

• Albright® Contactor – High-performance, ultra-reliable contactor ensures consistent power.

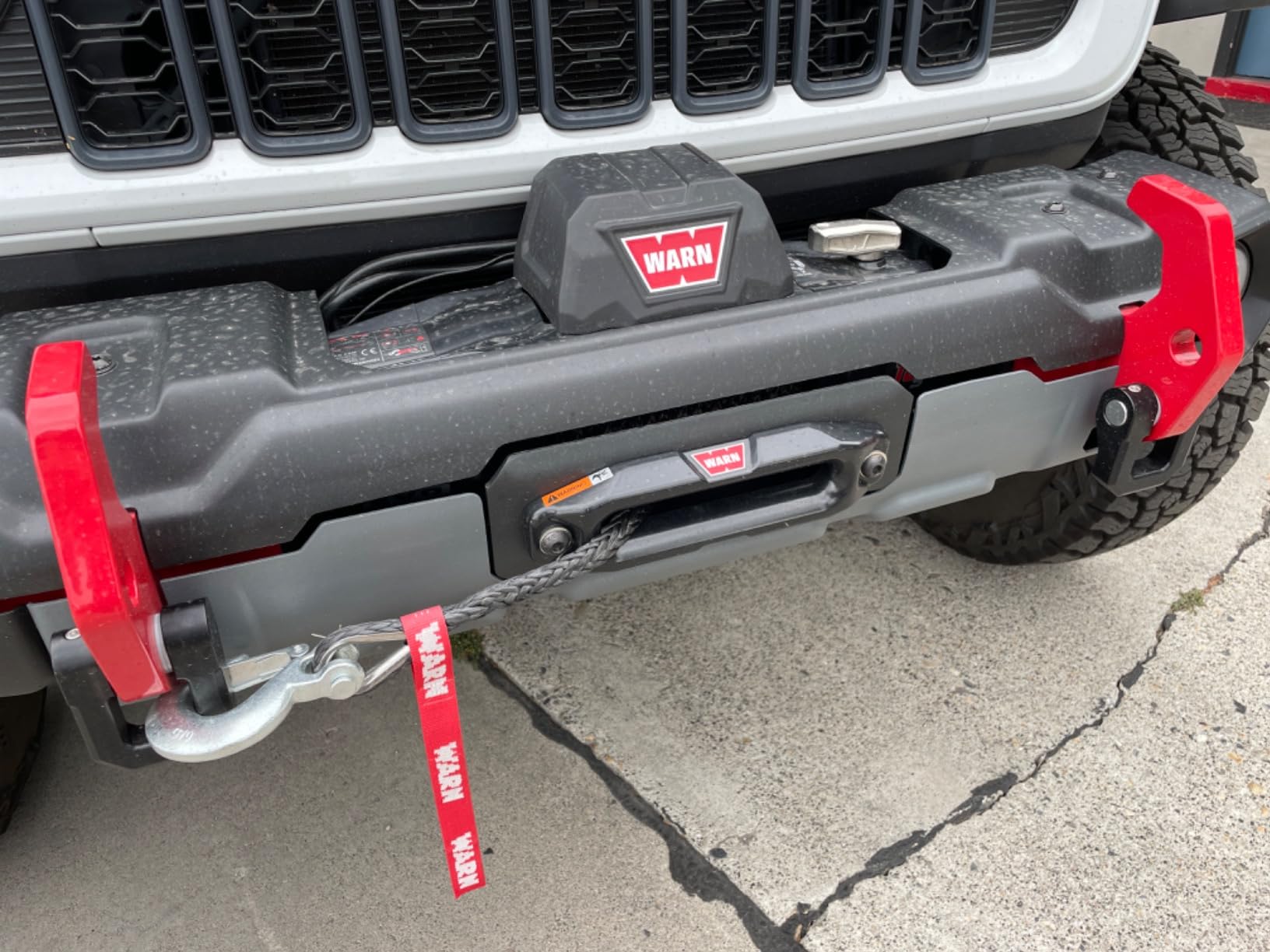

• Relocatable Control Pack – Allows for low-profile installations where space is limited.

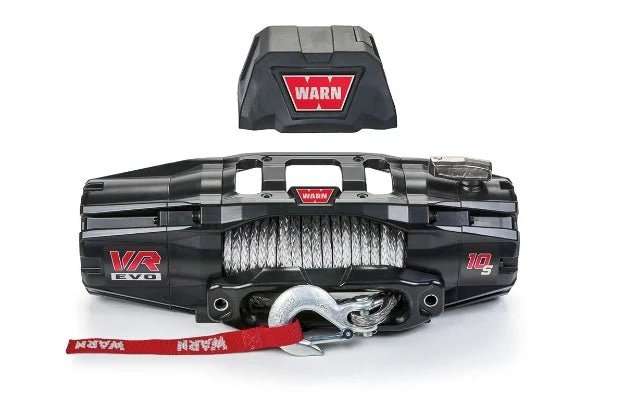

• One-Piece Cast-Aluminum Tie Plate – Adds strength and durability to the entire winch assembly.

• Corded Remote – Includes 11.5' (3.5m) corded remote for easy, reliable operation.

Why Choose the VR EVO 10?

Engineered for tough jobs and weekend adventures alike, the VR EVO 10s combines WARN’s proven reliability with modern design and efficiency. It’s the hardworking winch you need for everyday recovery situations.

Warranty

• Limited Lifetime Warranty on mechanical components

• 7-Year Warranty on electrical components

Specs

• Type: Electric
• Recommended Use: Vehicle Recovery
• Mount Type: Vehicle Mount
• Voltage: 12 Volt DC
• Electrical Control Type: Albright Contactor
• Motor Type: Series Wound
• Drive Gear Type: 3-Stage Planetary
• Gear Reduction Ratio: 218:1
• Free Spooling: Yes
• Brake Type: Spring
• Line Diameter (in.): 3/8 Inch
• Line Length (ft.): 90
• Line Material: Synthetic

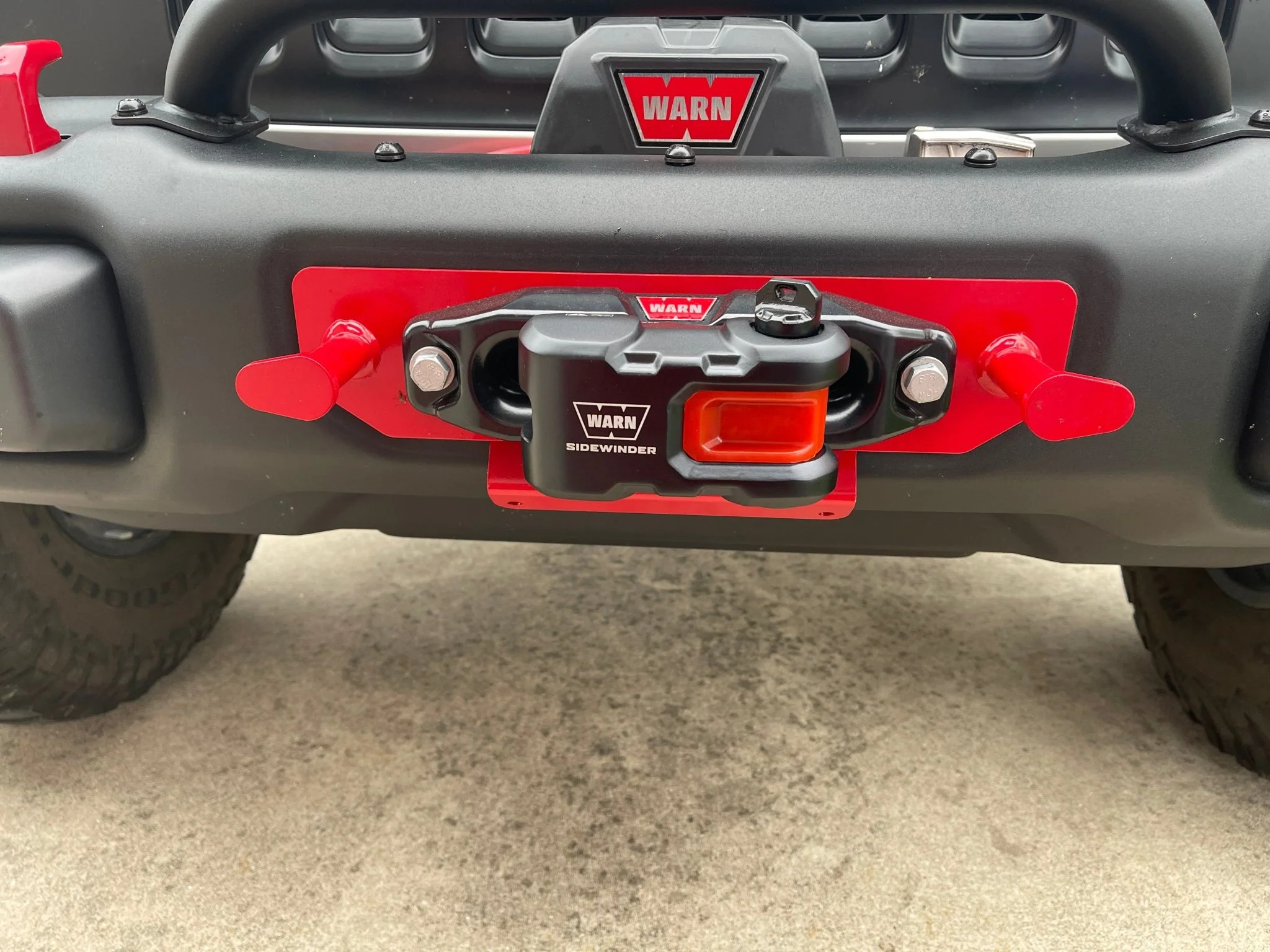

• Fairlead Type: Hawse
• Remote Type: 2 In 1 Plug In Remote With Wireless Capability

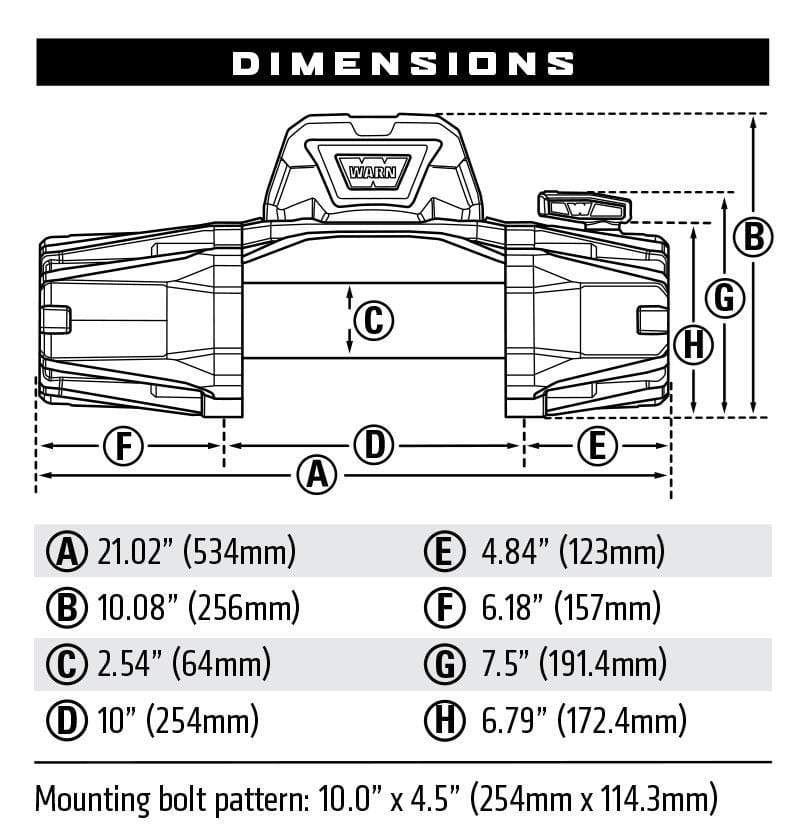

• Mounting Hole Quantity: 4
• Mounting Pattern Length (in.): 10 Inch
• Mounting Pattern Width (in.): 4-1/2 Inch
• Includes Mounting Hardware: Yes
• Color: Black
• Drum Material: Steel
• Max Line Pull/ Line Speed: 10,000 Pound/5.2 Feet Per Minute
• Max Amp Draw/ Line Pull: 358 Amps / 10,000 lbs.

Features

• A Powerful Series-Wound Motor And Planetary Gear Train Deliver Faster Line Speed Under Load, With Lower Amp Draw
• IP68-Rated Waterproof Winch Construction Keeps The Elements Out
• High-Performance Albright Contactor Delivers Maximum Reliability
• Control Packs Can Be Relocated For Low-Profile Installations
• Durable, One-Piece Cast-Aluminum Tie-Plate For Added Strength And Durability
• 2-In-1 Wired And Wireless Remote
• Limited Lifetime Mechanical Warranty And Limited 7 Year Electrical Warranty

Warranty

• Limited lifetime warranty for mechanical parts and 7 years on the electrical
