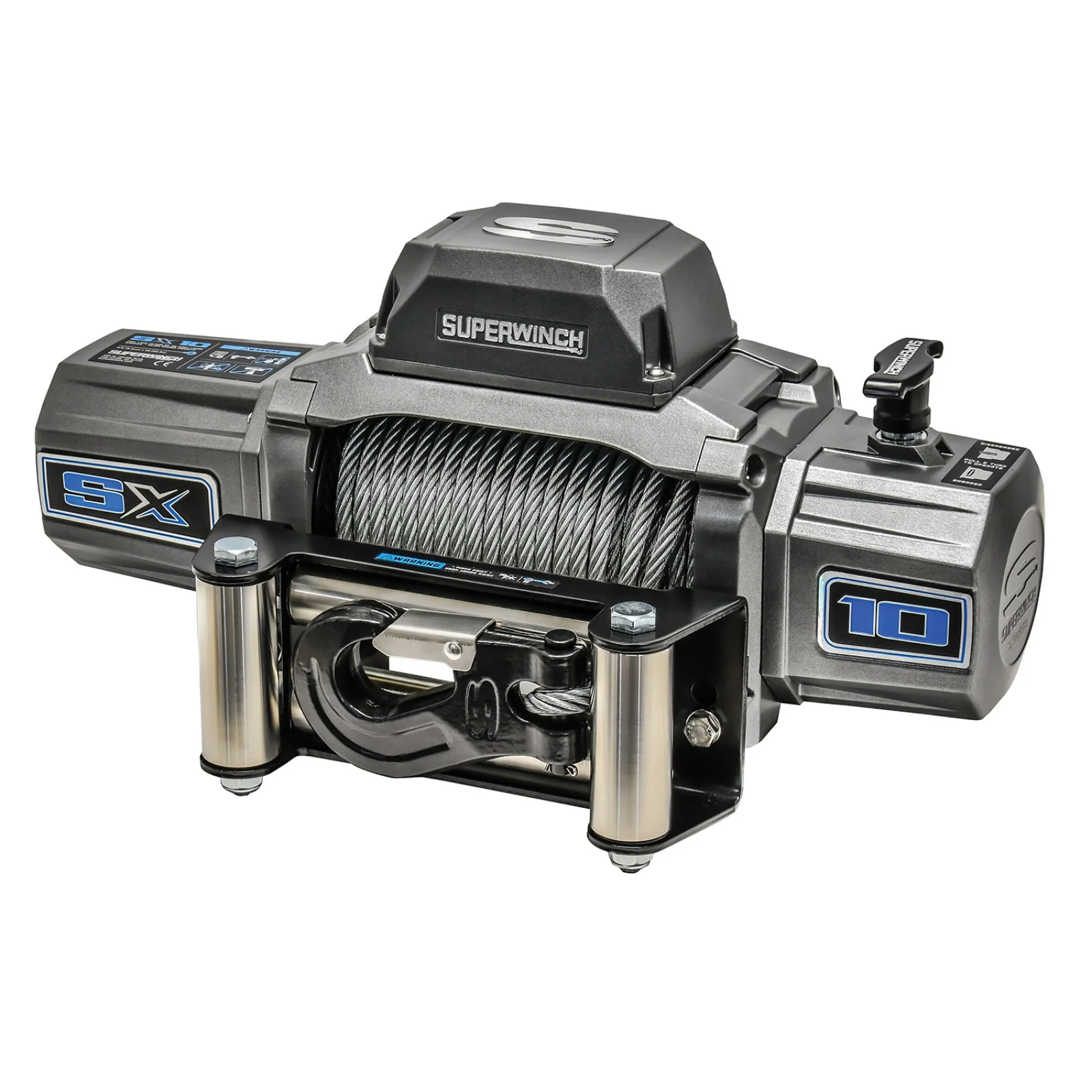

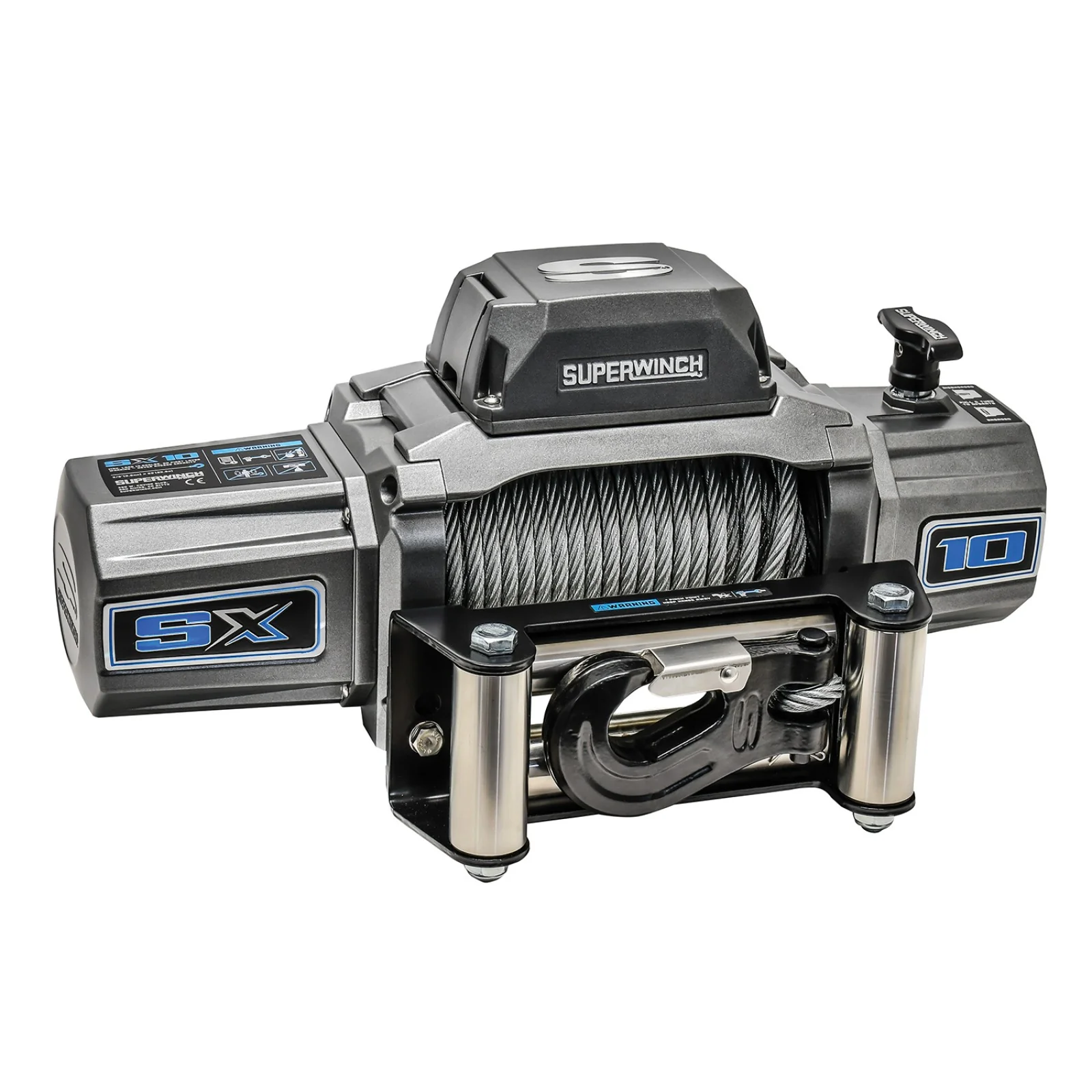

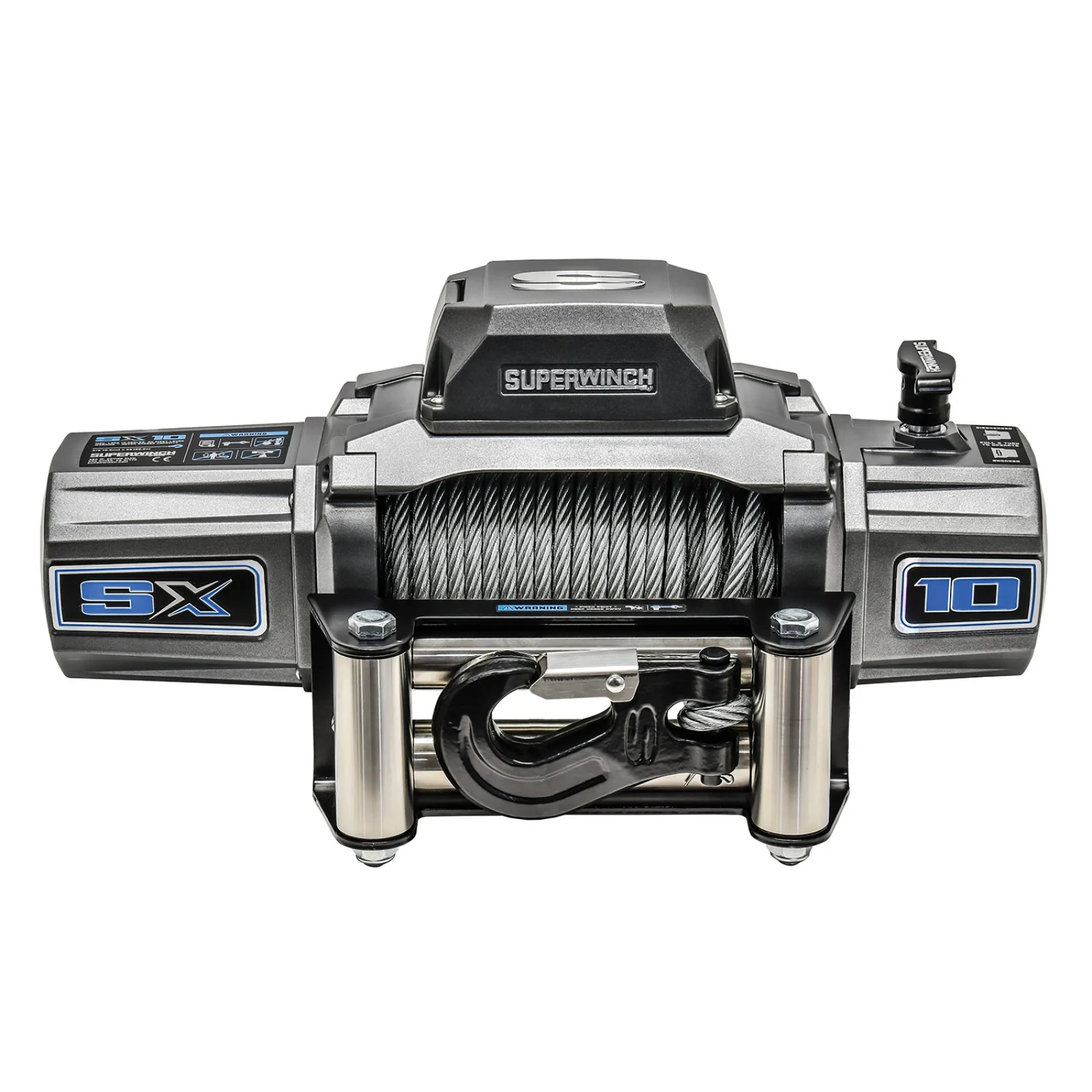

Superwinch SX10 12V DC 10,000 lb Wire Rope Winch

The Superwinch SX10 is built for enthusiasts who demand power, speed, and proven reliability in one package. With a bold modern design and industry-leading features, the SX10 delivers 10,000 lbs. of pulling capacity while standing up to the toughest recovery challenges.

---

Key Features

• 10,000 lb Capacity – Ideal for trucks, SUVs, and off-road vehicles requiring serious pulling power.

• 3/8" Steel Wire Rope – Heavy-duty strength for demanding recoveries.

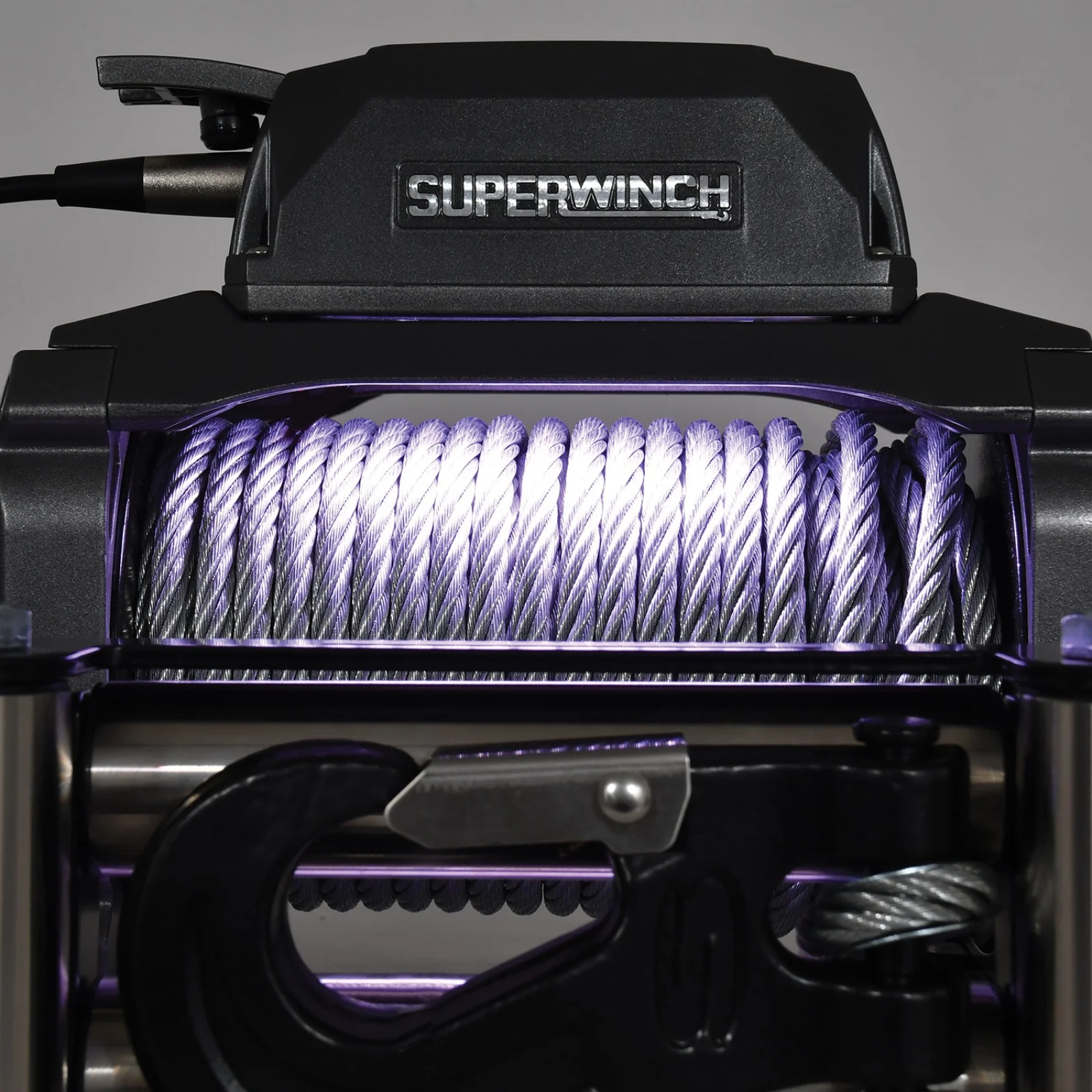

• Patented Drum Light – Enhances visibility during nighttime or low-light winching.

• Relocatable Die-Cast Aluminum Control Box – Flexible mounting options for a clean setup.

• 12 ft Lighted Wired Remote – Reliable control with visibility in dark environments.

• IP68 Dustproof & Waterproof Rating – Maximum protection against the elements for worry-free operation.

• Durable Finish – Metallic graphite powder coat resists corrosion and looks sleek.

---

Built to Perform

The SX Series exceeds the most rigorous standards of today’s modern vehicles. From the sealed construction to the advanced braking system, every detail is engineered for long-lasting performance in extreme environments.

With the SX10, you’re not just getting a winch—you’re getting confidence on every trail.



Video

Specifications

• 12V DC 10,000 lbs. rated line pull
• 5.5 HP sealed motor

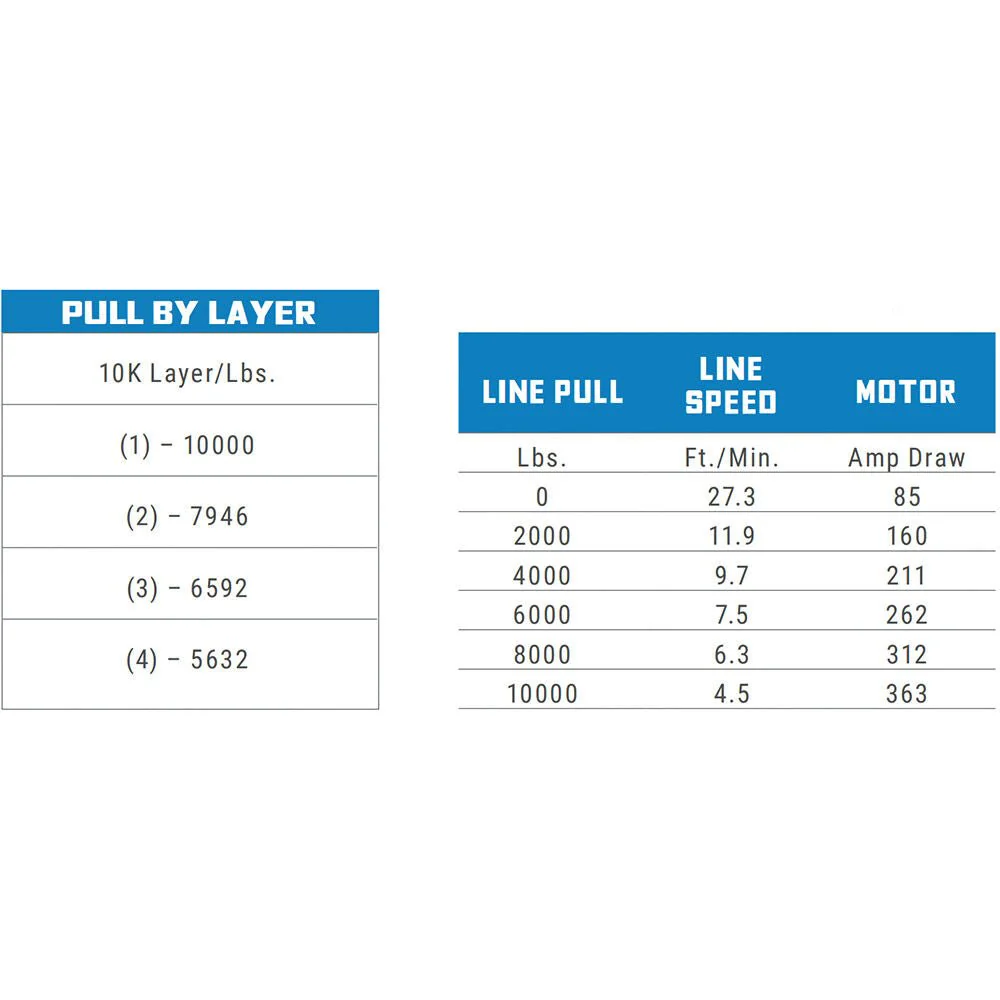

• Line Speed 85 Amps Motor Draw/27.3 FPM (8.32 MPM)

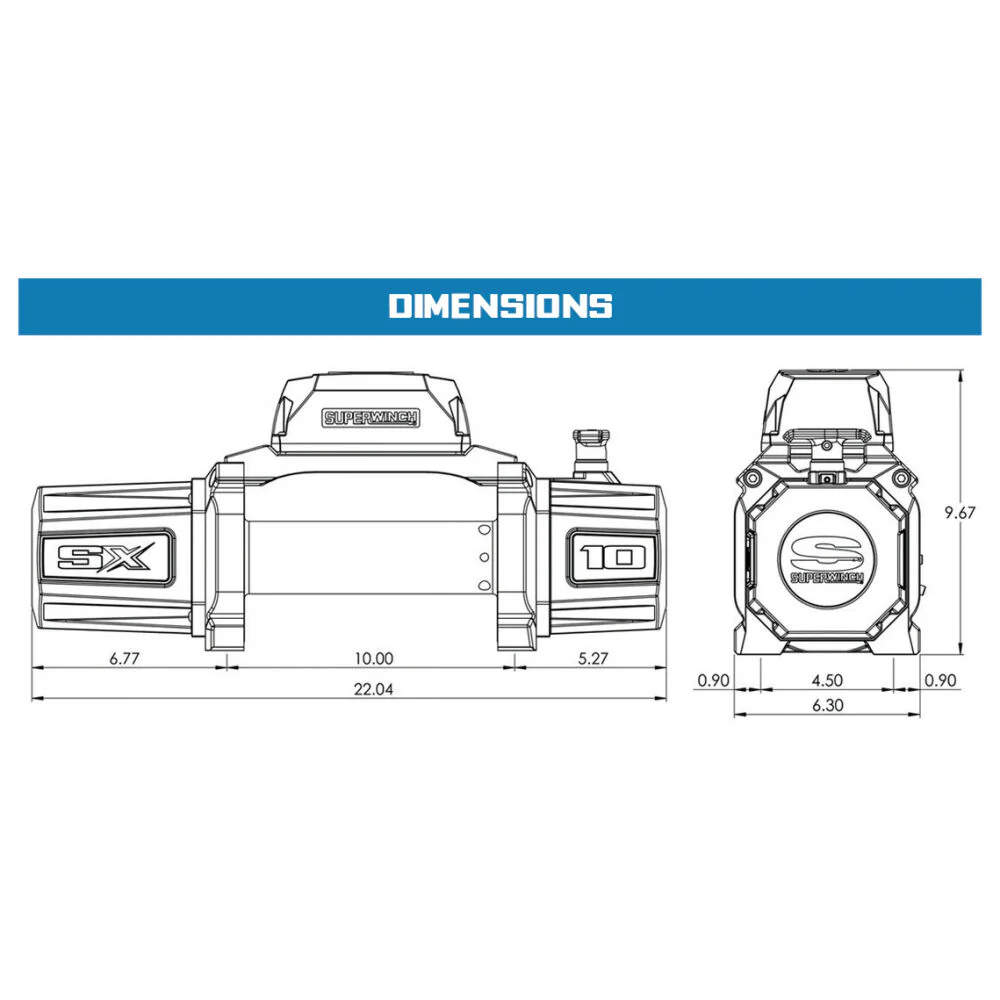

• 10"x 4.5" Standard Mounting Pattern

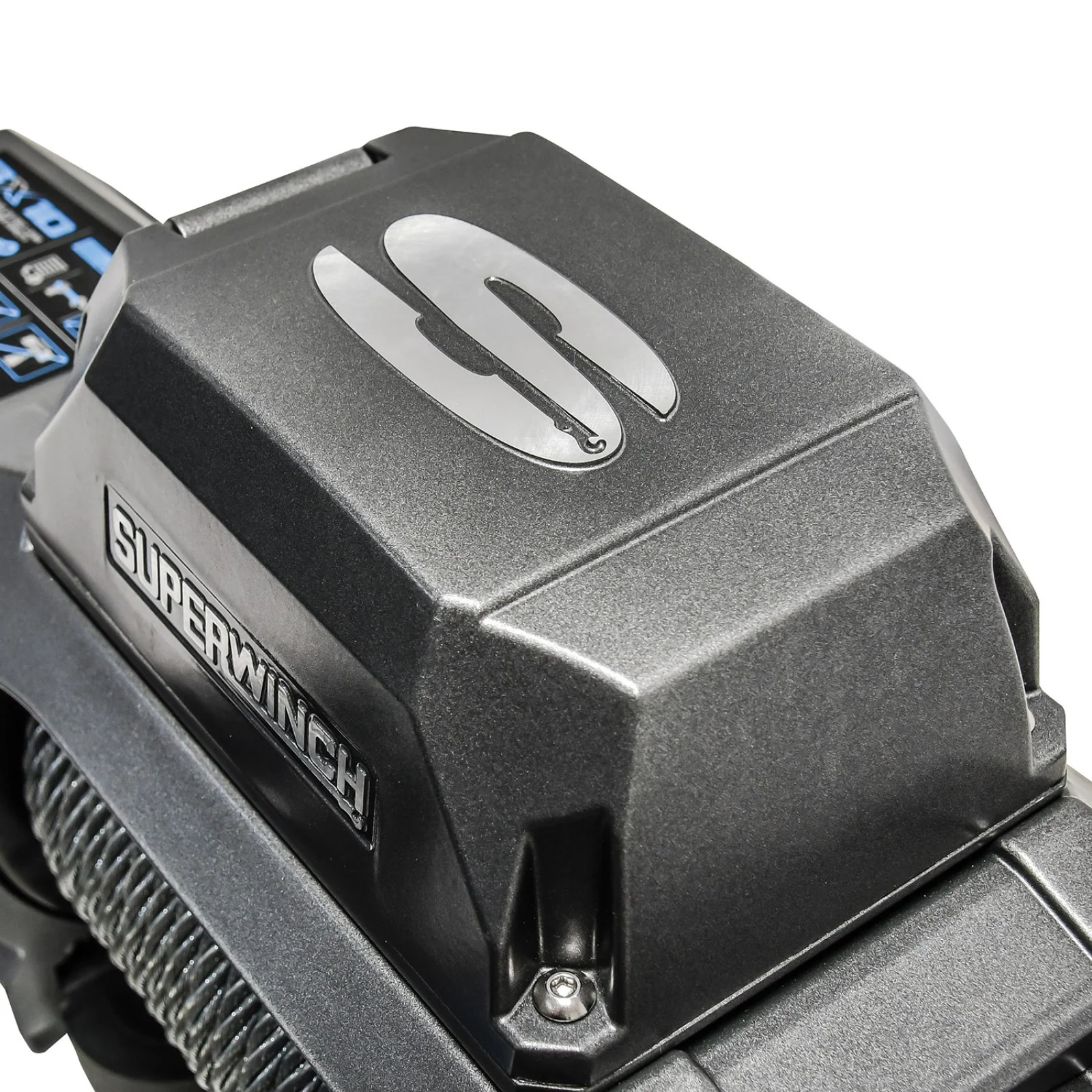

• Relocatable die-cast aluminum control box
• 12 ft handheld wired remote features flashlight with rechargeable lithium ion battery

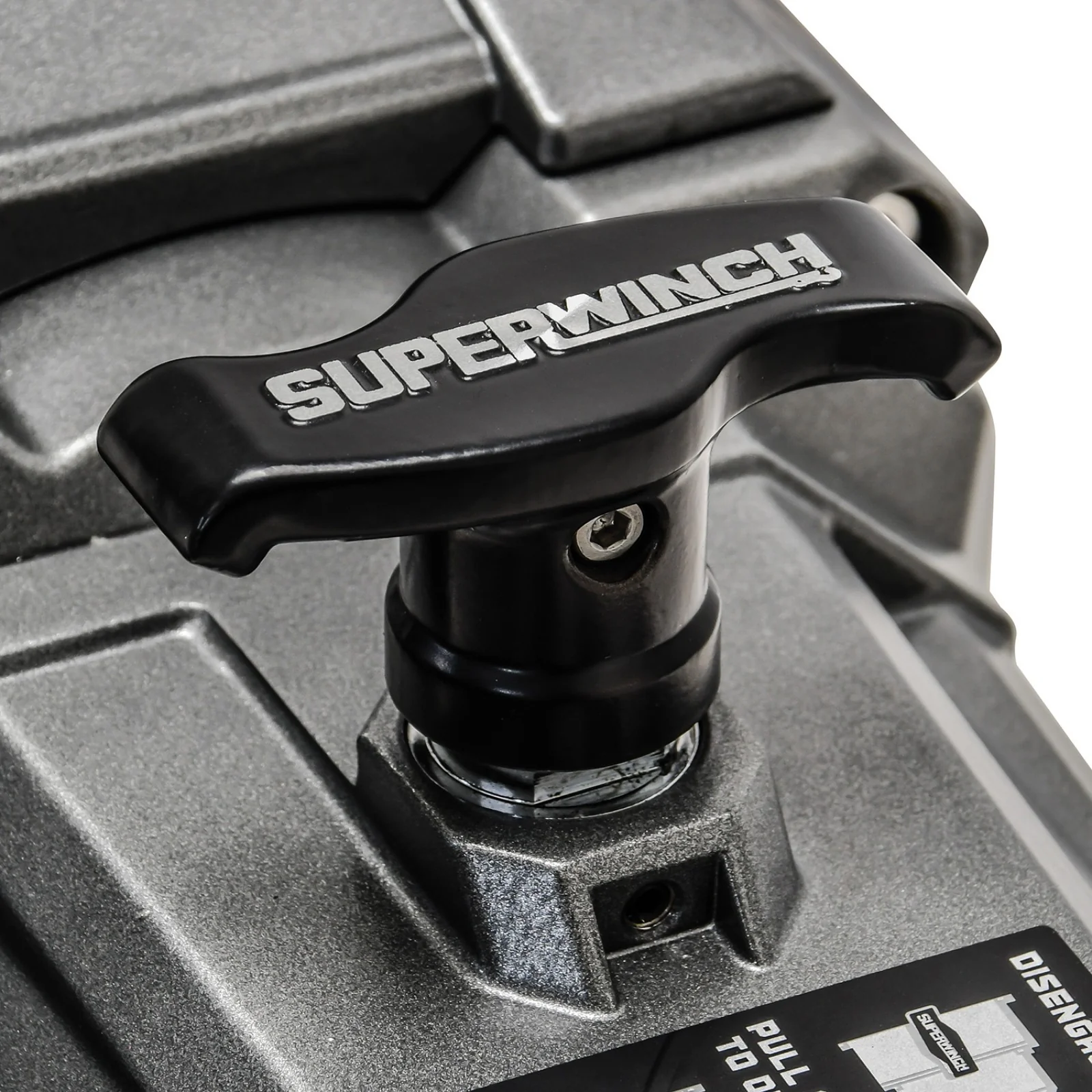

• Pull-and turn clutch handle
• 3-stage planetary gearing with 218:1 ratio

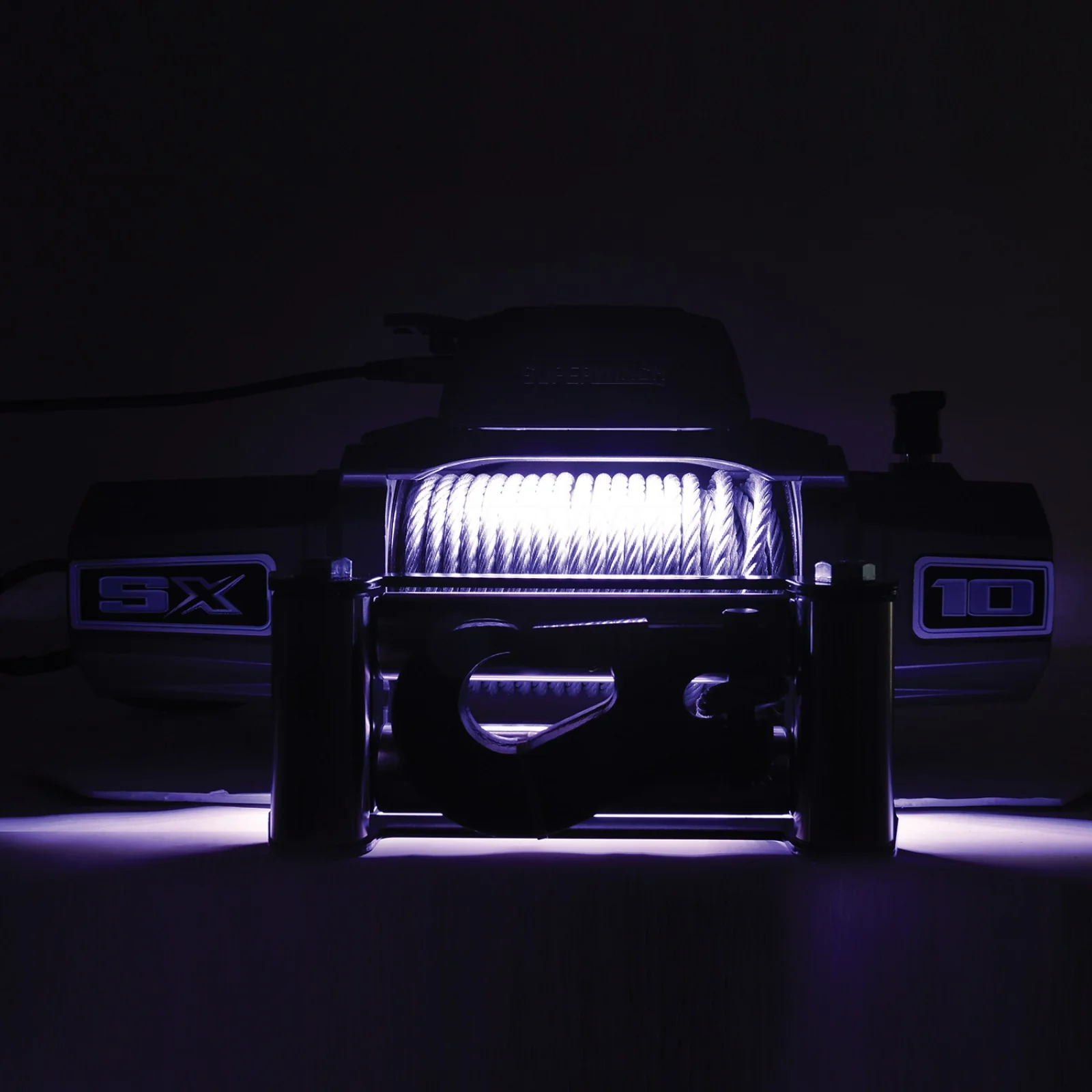

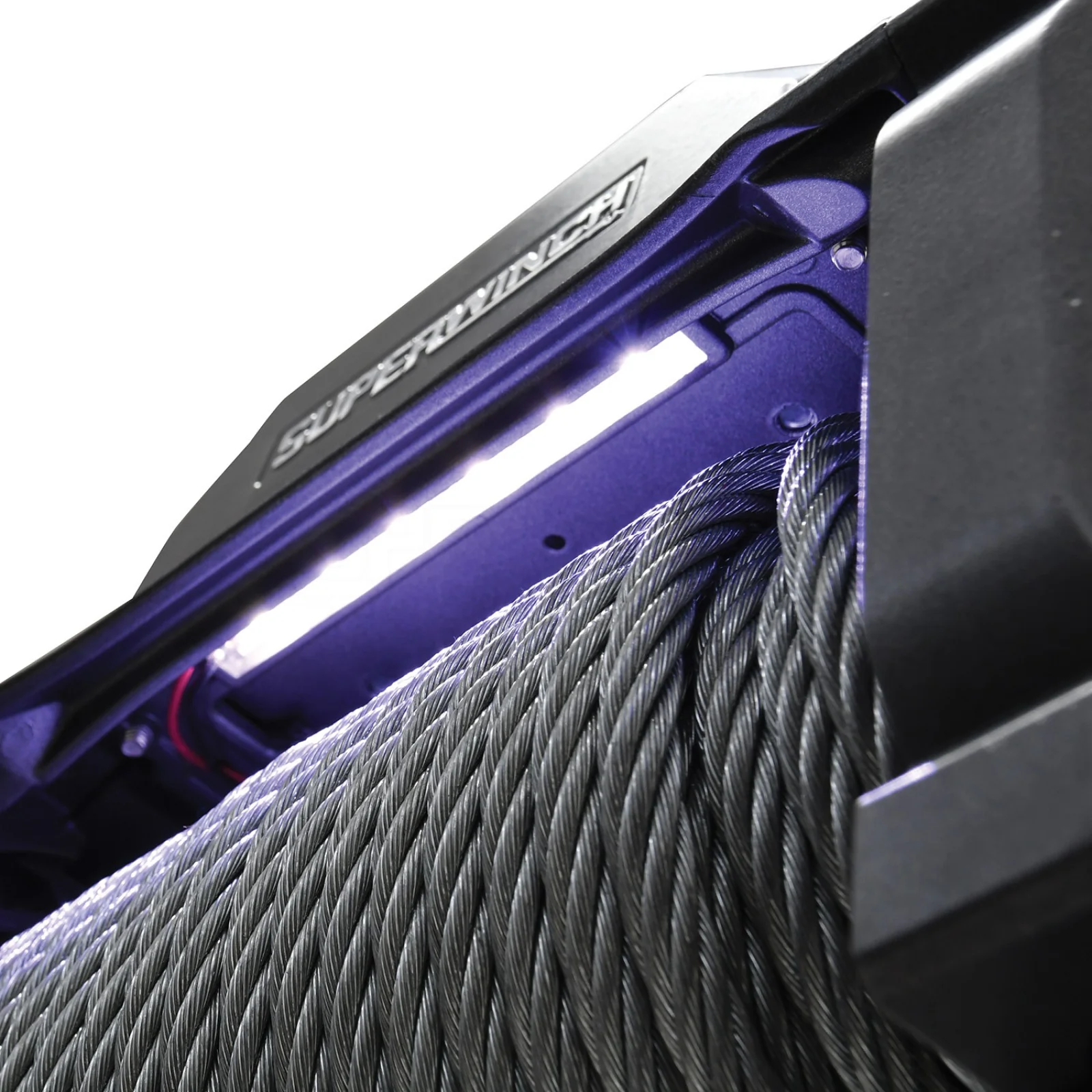

• Patented LED drumlight
• 3/8 in x 85 ft steel wire rope
• Heavy duty clevis winch hook

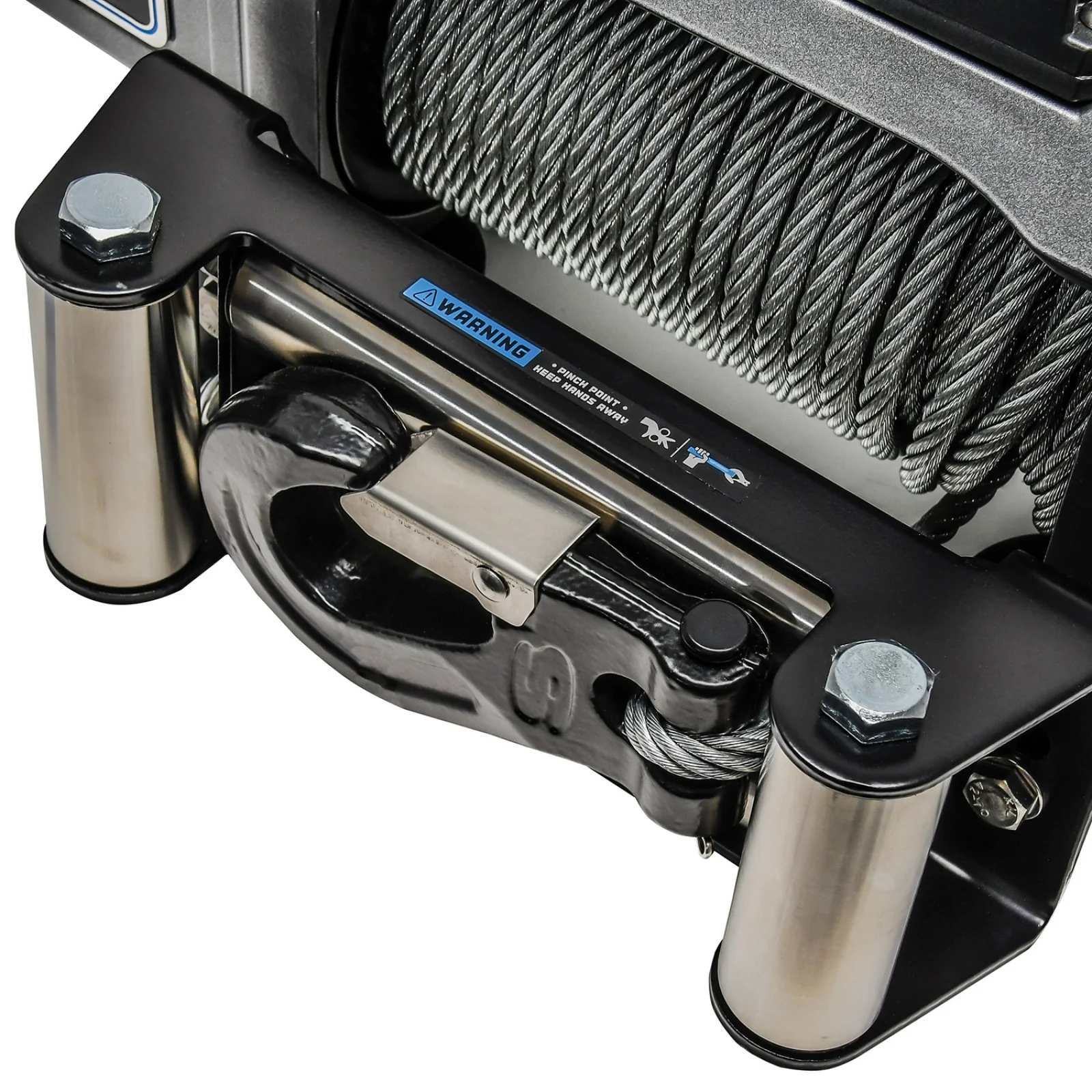

• Stainless steel 4-way roller fairlead
• 100% full load holding automatic mechanical brake
• IP68-rated waterproof and dustproof winch

Warranty

Mechanical Warranty: Limited Lifetime
Electrical Warranty: Limited 7 Year
