Smittybilt XRC Gen 2 Winches – Heavy-Duty Recovery Power You Can Trust

The Smittybilt XRC Gen 2 Winch Series delivers serious pulling performance and trail-tested durability for any off-road recovery situation. With capacities ranging from 9,500 lbs to 17,500 lbs, this winch lineup is built to tackle everything from weekend trail rides to extreme overlanding adventures.

Key Features:

• High-Performance Motor: Equipped with a 6.6 HP series wound motor for maximum torque and dependable power output.

• Upgraded Gear System: Features a 3-stage planetary gear system with revised gear ratios for faster line speeds and increased pulling power.

• Durable Construction: Rugged UV-resistant matte black finish, stainless steel hardware, and oversized aluminum crossbars provide long-lasting performance and sleek looks.

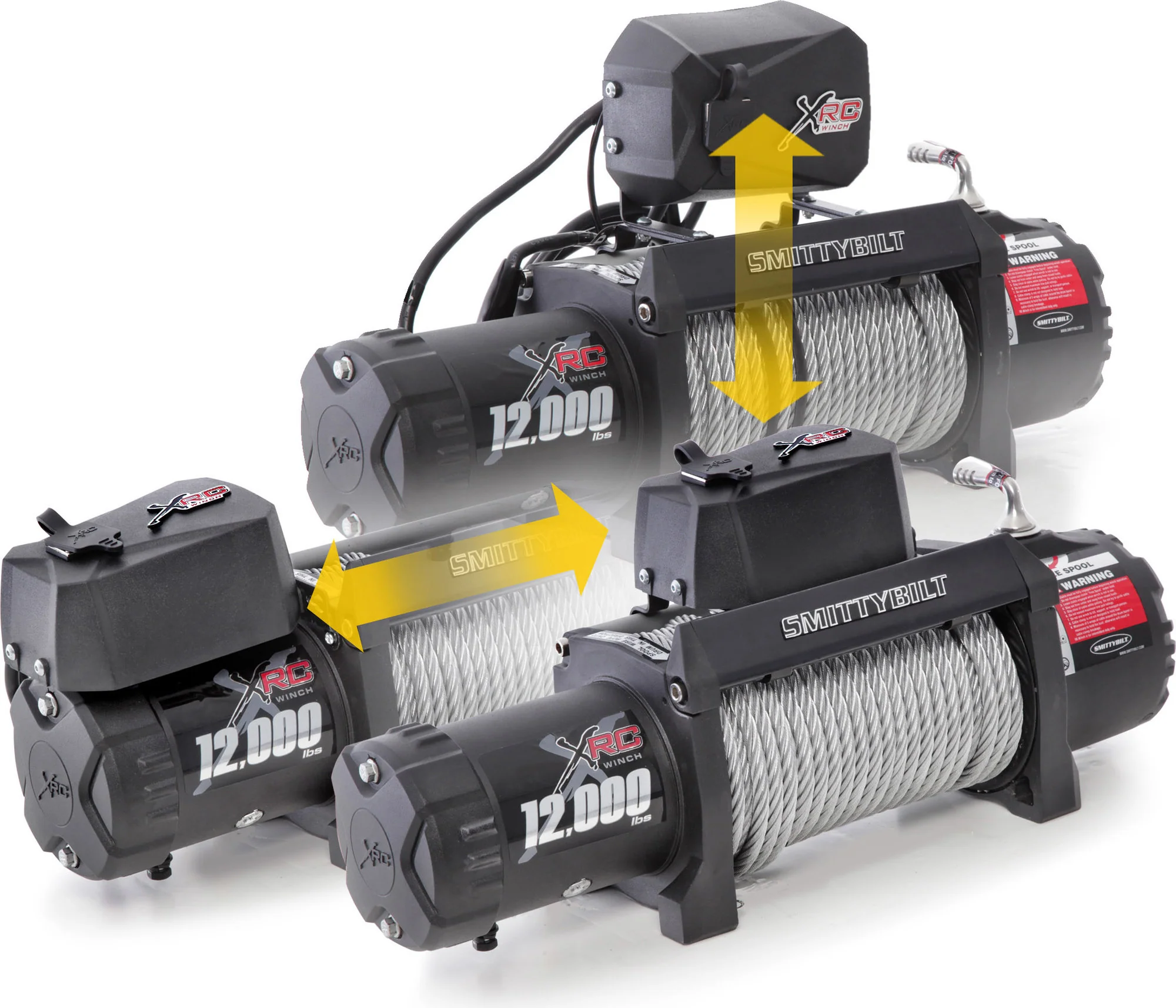

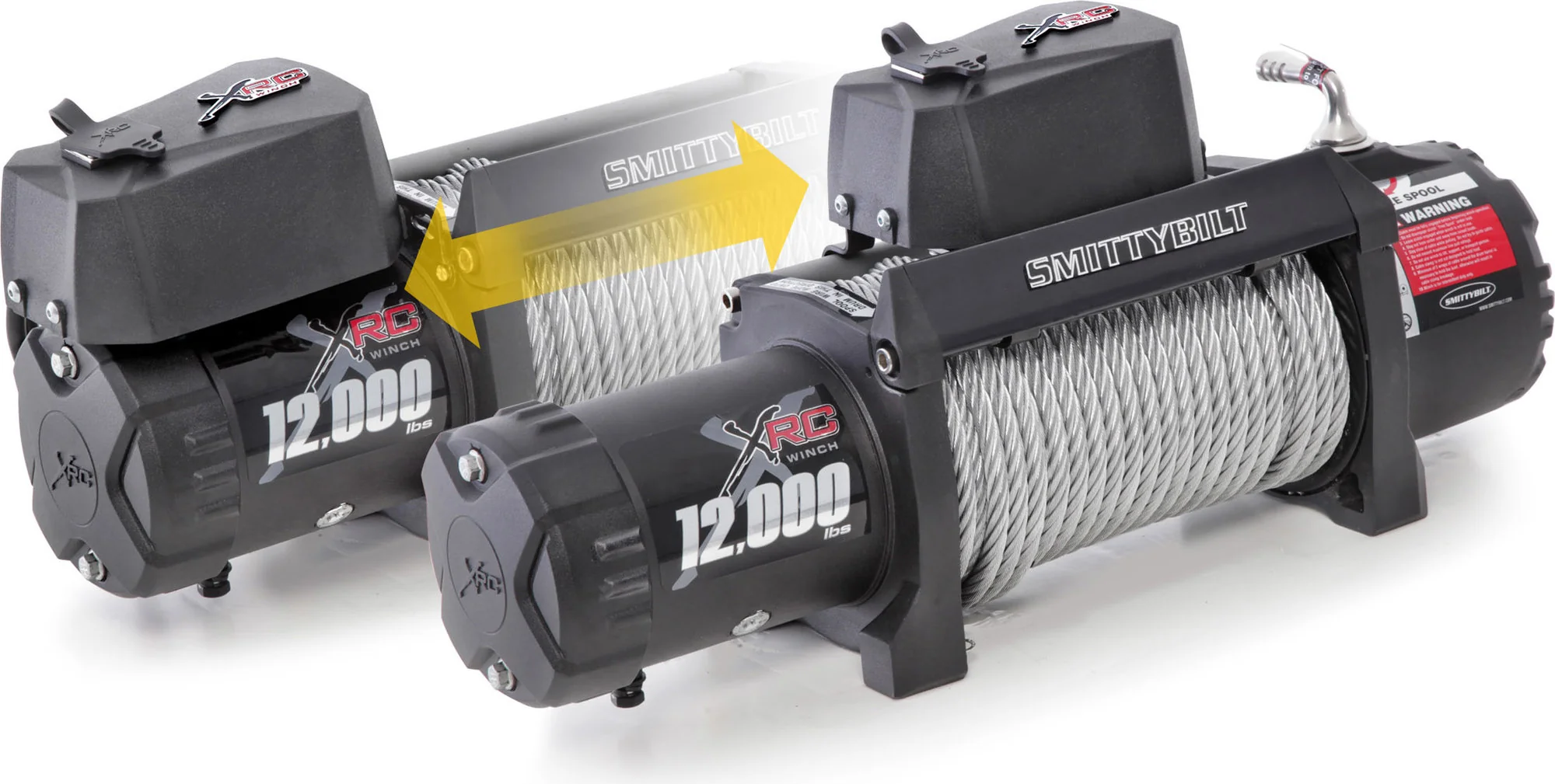

• Versatile Solenoid Box: Redesigned solenoid can be mounted in three different positions for customized fitment.

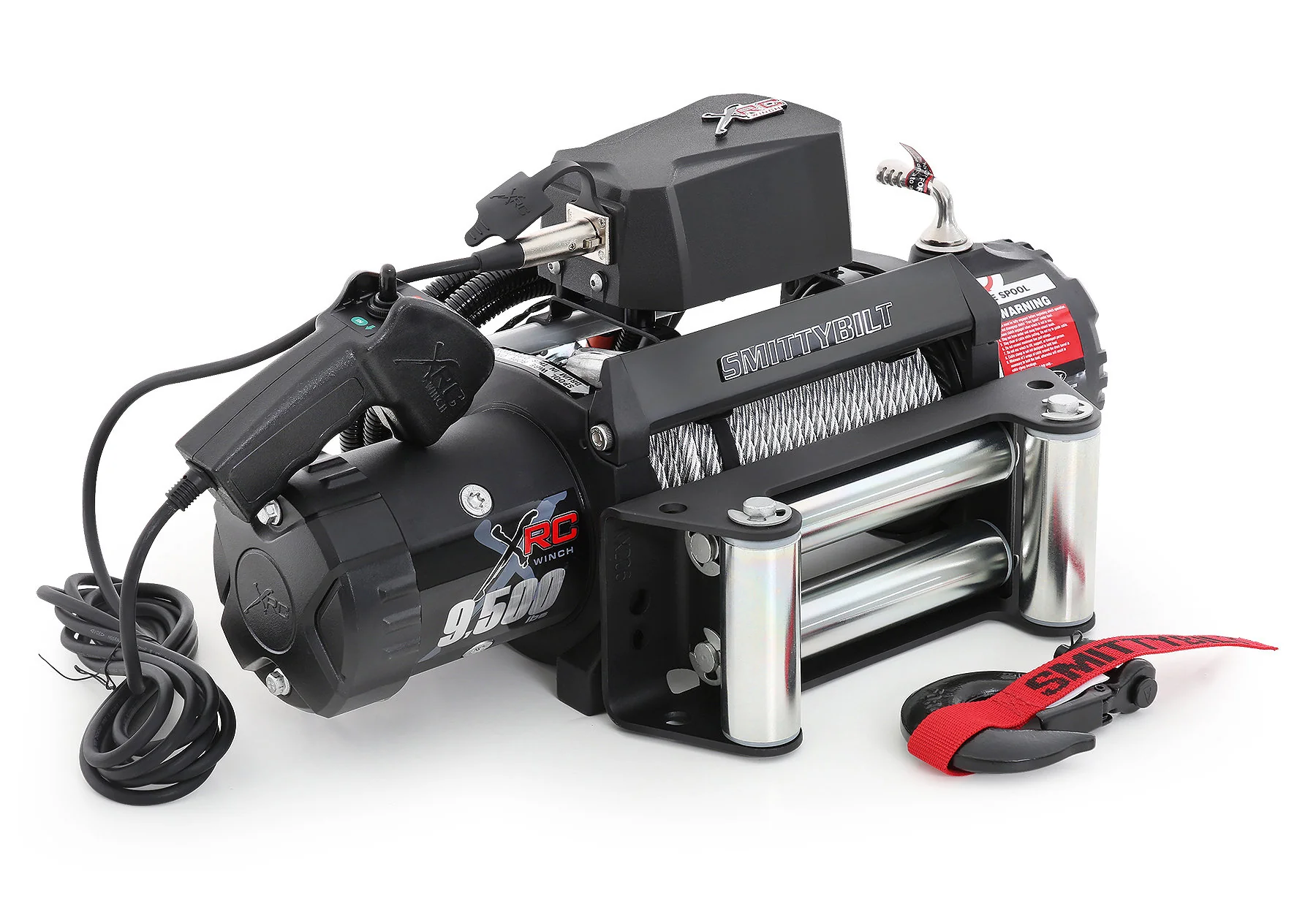

• Complete Recovery Kit: Includes a heavy-duty winch controller, four-way roller fairlead, forged steel tow hook, and all necessary hardware.

• Synthetic Option Available: For those looking for lighter weight and easier handling, the XRC Comp Series comes pre-equipped with a synthetic winch rope.

Whether you're climbing out of a deep mud hole or hauling a buddy to safety, the Smittybilt XRC Gen 2 Winch gives you the strength, speed, and reliability to get the job done—every time

Specs

• 3-Year Electrical / Limited-Lifetime Mechanical Warranty
• IP67 waterproof
• Weight 99lbs
• Rated Line Pull: 9,500Lbs (4,309kgs) single-line
• 2.5" drum diameter
• Bolt Pattern: 10" x 4.5 "
• Recommended Battery: 650CCA minimum for winching
• 5' battery power cables
• Brake: Automatic In-Drum
• Wired remote control with 11.5' Lead
• 4-way roller fairlead
• 3-stage planetary gearbox

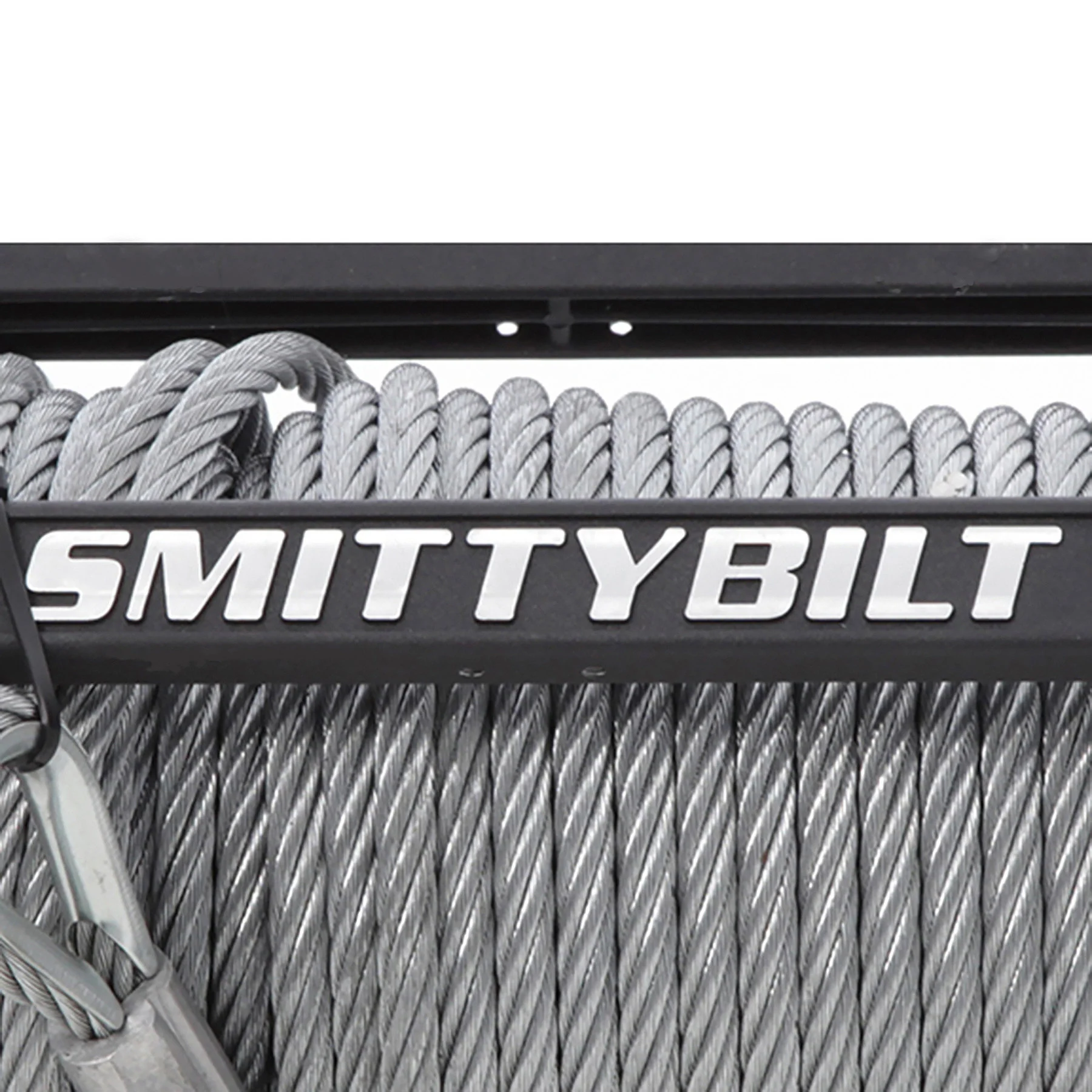

• 5/16" x 93.5' steel cable
• 6.6HP series-wound motor
• Dimensions: 22.3" L x 5.4" W x 9.4" H
• Sliding ring gear clutch
• 161.28:1 gear ratio


Warranty

Smittybilt offers extended warranties because we stand behind our products and want our customers to enjoy the freedom of off-roading without the worry and limits of fragile equipment. We understand the wear and tear these products will be subject to and our goal is to provide a comprehensive warranty to gives you confidence that the products you are outfitting your rig with will last for seasons to come. That’s the Smittybilt Advantage!
