SmittyBilt XRC 3.0 GEN3 Comp Series 3K UTV ATV Trailer Winch 4hp -Recon Recovery
DESCRIPTION

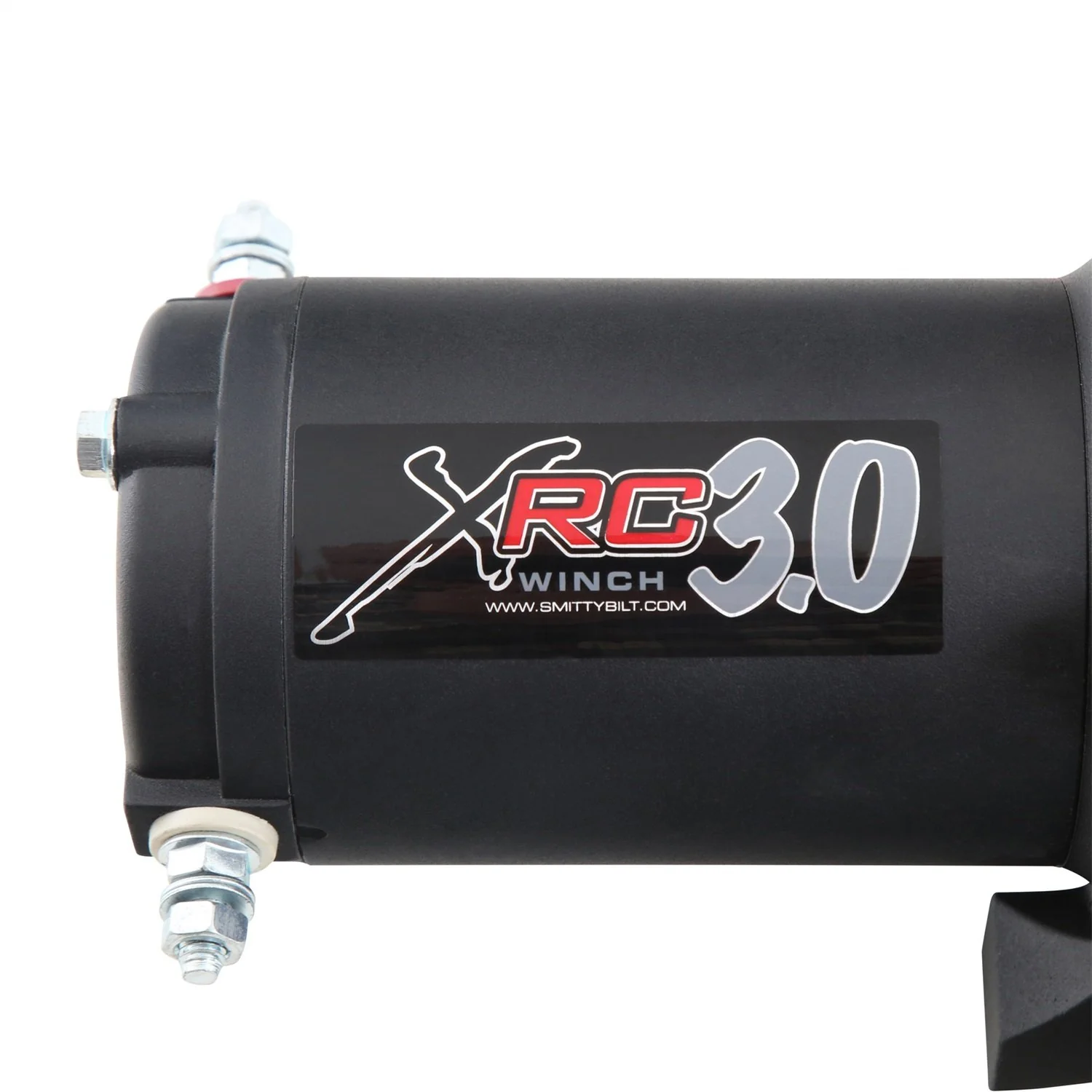

Smittybilts XRC 3 Winch encompasses all the best features you would want in a winch. Every XRC 3 (3,000 LB.) winch features a 3.9 HP Permanent Magnet Motor and a Planetary Gear System with 136:1 gear ratio that will deliver power and reliability at a premium price. This is a perfect recovery system for ATV & UTV applications, with the muscle and dependability to bail you out of any situation. The XRC 3 has all the heavy-duty toughness you're looking for.
Specs
Â

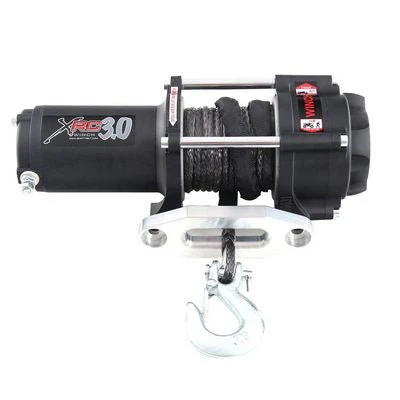

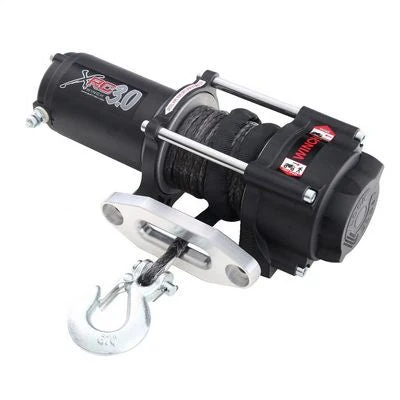

Synthetic Rope Option
- Not Vehicle Specific
- Rated line pull = 3000 lbs.
- Winch motor 3.9 HP
- Control = Remote switch, 12ft. lead
- Gear train = 2-Stage planetary
- Gear reduction ratio = 136:1
- Braking action = self-locking
- (71mm)
- Cable = 40 foot of synthetic DSK-75 rope, 1/7th weight of steel
- Fairlead = Hawse

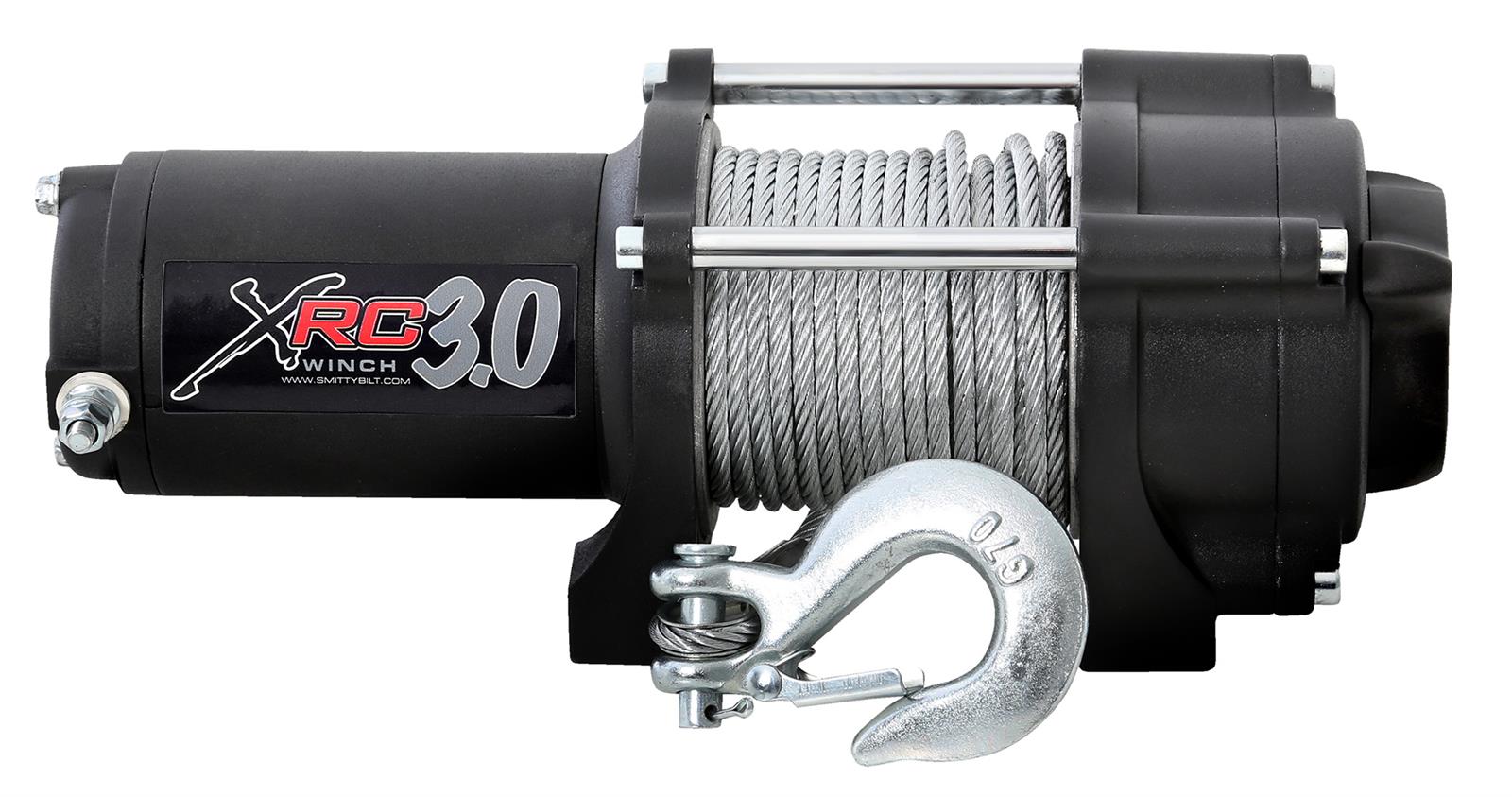

Steel Cable Option
- Not Vehicle Specific
- Rated line pull = 3000 lbs.
- Winch motor 3.9 HP
- Control = Remote switch, 11.5 foot lead
- Gear train = 2-Stage planetary
- Gear reduction ratio =153:1
- Braking action = self-locking
- Drum size = 2 inch
- L 2.8 inch (71mm)
- Cable = diameter (5.5mm) x (10m)
- Fairlead = 4-way roller fairlead
- Remote control included
- Battery = 175CCA min. for winching
- Battery leads = 8mm2, black -230mm, red- 230mm
- Finish = Black
- Overall dimensions = (LxWxH) 12.6 inch x 4.13 inch x 4.35
Installation
Warranty
Smittybilt offers extended warranties because we stand behind our products and want our customers to enjoy the freedom of off-roading without the worry and limits of fragile equipment. We understand the wear and tear these products will be subject to and our goal is to provide a comprehensive warranty to gives you confidence that the products you are outfitting your rig with will last for seasons to come. That’s the Smittybilt Advantage!
Smittybilt’s X20 GEN3 Winches, XRC GEN3 Winches and previous generations of X20 winches carry a lifetime mechanical warranty and a 5-year electrical warranty. XRC GEN2 Winches and all other Smittybilt Winches carry a lifetime mechanical warranty with a 3-year electrical warranty.
