DESCRIPTION

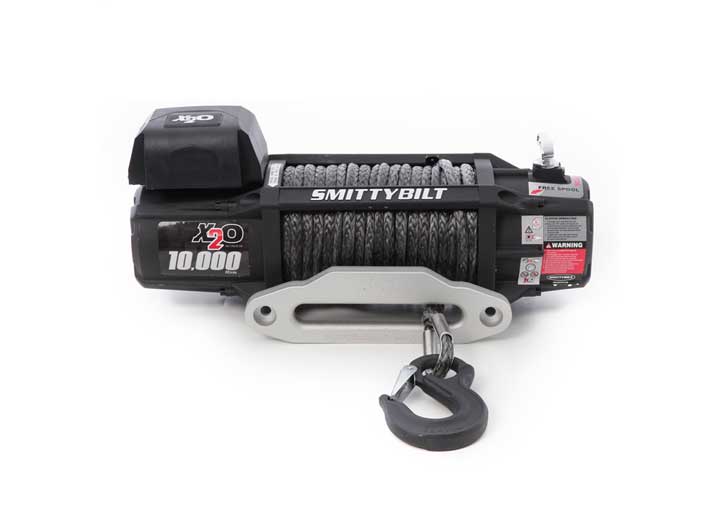

The Smittybilt X2O Winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O winch features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning-fast line speeds. If you're looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.

If the 10 Commandments of Off-Roading existed, they'd probably include Thou shalt never hit the trails without a winch."" Powering over super-rocky ground, pulling yourself out of a tight spot or helping out another rider these tasks are only possible with a powerful recovery winch. Fortunately, 4 Wheel Parts has exactly what you need. We stock Smittybilt X20 winches plus hundreds of other winch models, accessories and mounting gear at everyday low prices. So when it's time to gear up, 4 Wheel Parts is your best destination.

Specs

• Not Vehicle Specific
• Rated line pull = 10,000lbs. (4,545kgs) Single Line
• Motor: 6.6hp Series Wound
• Control: Remote Switch, 12 ft. (3.7m) lead
• Gear Train: 3-Stage Planetary
• Clutch: Sliding Ring Gear
• Brake: Automatic Out-Of-Drum
• Drum Size: Diameter 2.5 inch
• Cable: 98.5 feet 3/8 inch Diameter

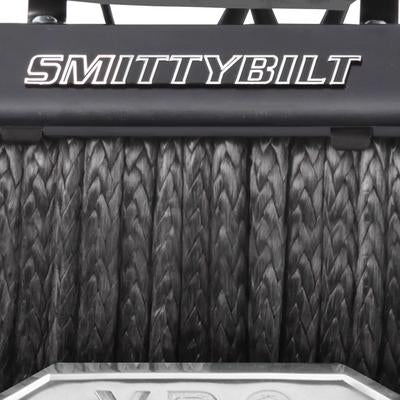

• Cable type: synthetic rope

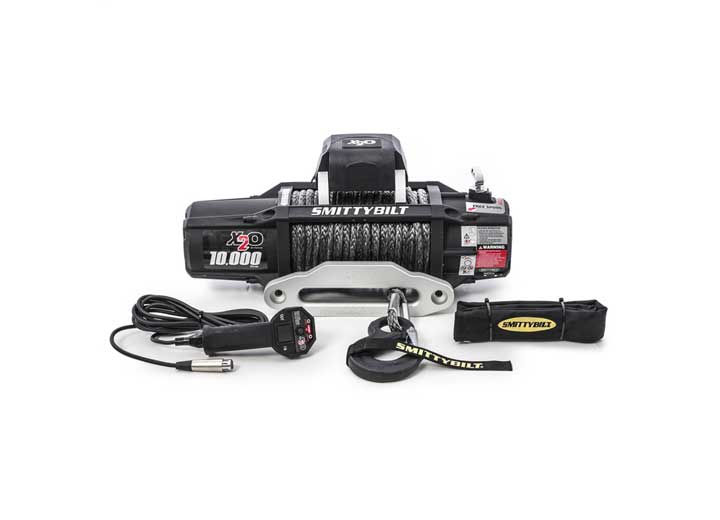

• Remote control Included
• Integrated Wireless Remote
• Recommended Battery: 650CCA Minimum for Winching
• Battery Leads: 25mm2, 72 inch(1.83m)1
• Finish: Textured black
• Weight: 67.0lbs. (30.4Kgs)
• Mounting Bolt Pattern: = 10.0 inch x 4.5 inch
• Overall Dimensions: (L x W x H) 22.3 x 5.4 x 9.4

Instructions

CLICK HERE FOR INSTRUCTIONS

Warranty

Smittybilt offers extended warranties because we stand behind our products and want our customers to enjoy the freedom of off-roading without the worry and limits of fragile equipment. We understand the wear and tear these products will be subject to and our goal is to provide a comprehensive warranty to gives you confidence that the products you are outfitting your rig with will last for seasons to come. That’s the Smittybilt Advantage!

Smittybilt’s X20 GEN3 Winches, XRC GEN3 Winches and previous generations of X20 winches carry a lifetime mechanical warranty and a 5-year electrical warranty. XRC GEN2 Winches and all other Smittybilt Winches carry a lifetime mechanical warranty with a 3-year electrical warranty.
