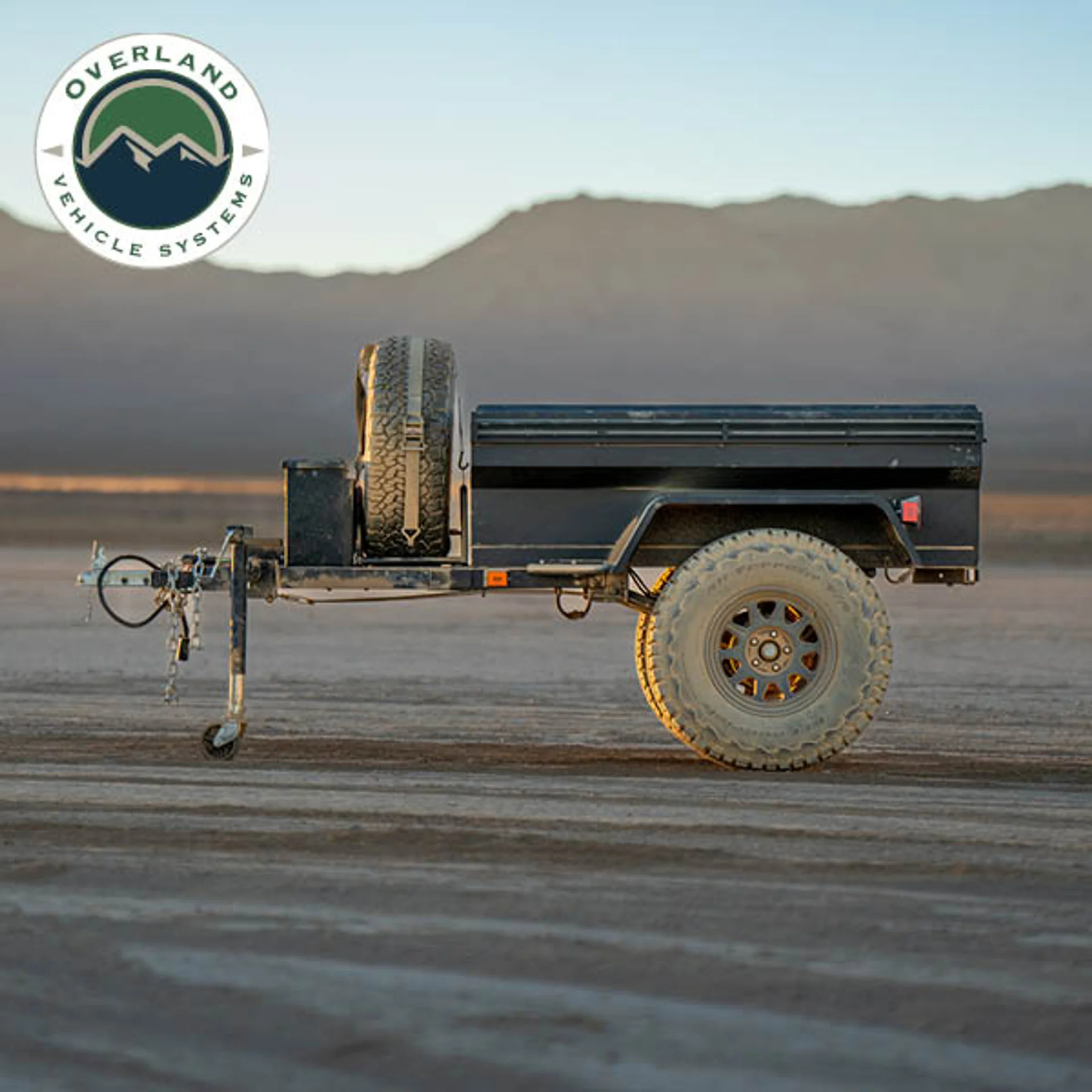

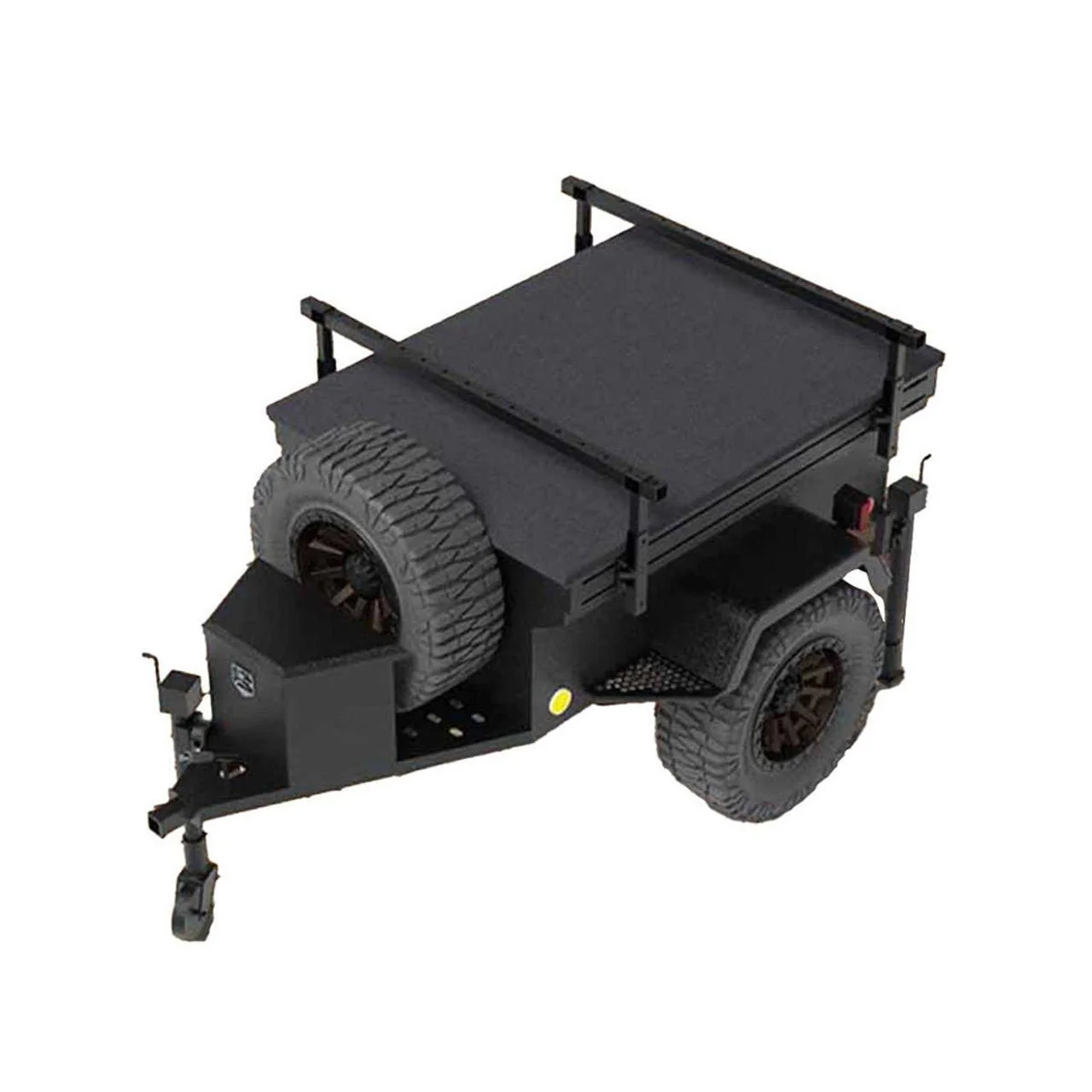

Overland Vehicle Systems Off-Road Trailer – Full Articulating Suspension

Engineered for rugged adventures and limitless versatility, the Overland Vehicle Systems Off-Road Trailer is your all-in-one solution for overlanding, hauling gear, or weekend escapes. Inspired by military-grade design and built for extreme off-road conditions, this trailer combines strength, utility, and innovation in a compact, tow-ready package.

Key Features:

• Full Articulating Suspension: Delivers superior handling and control across rough terrain.

• Rugged Construction: Built from alloy steel with electrostatic plating and a military-grade two-stage powder coat for extreme durability.

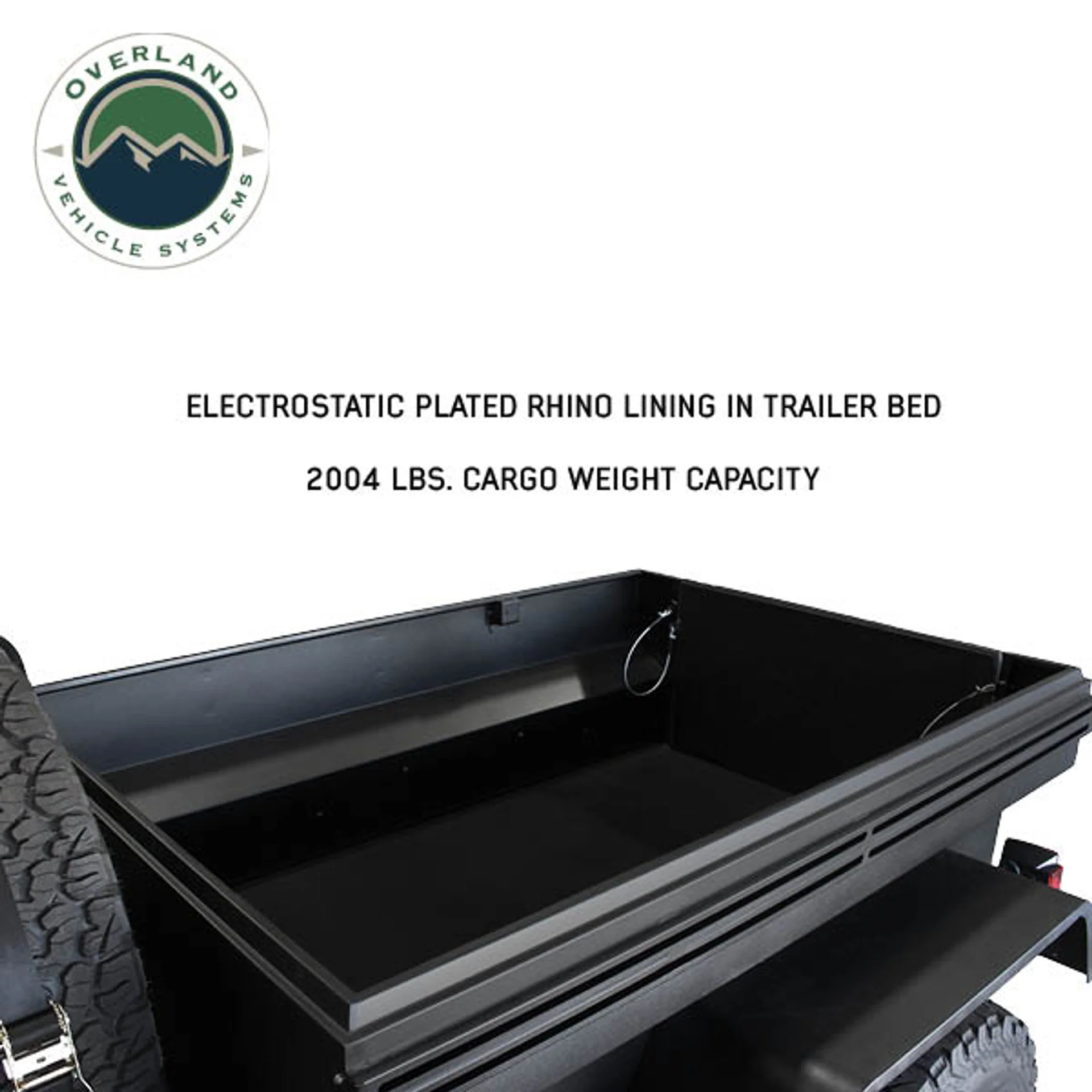

• Rhino-Coated Undercarriage: Provides unmatched resistance to moisture, debris, and trail abuse.

• Off-Road Ready: Fits up to a 37" tire

• Multi-Use Functionality: Converts easily into a utility trailer, motorcycle hauler, or basecamp rig.

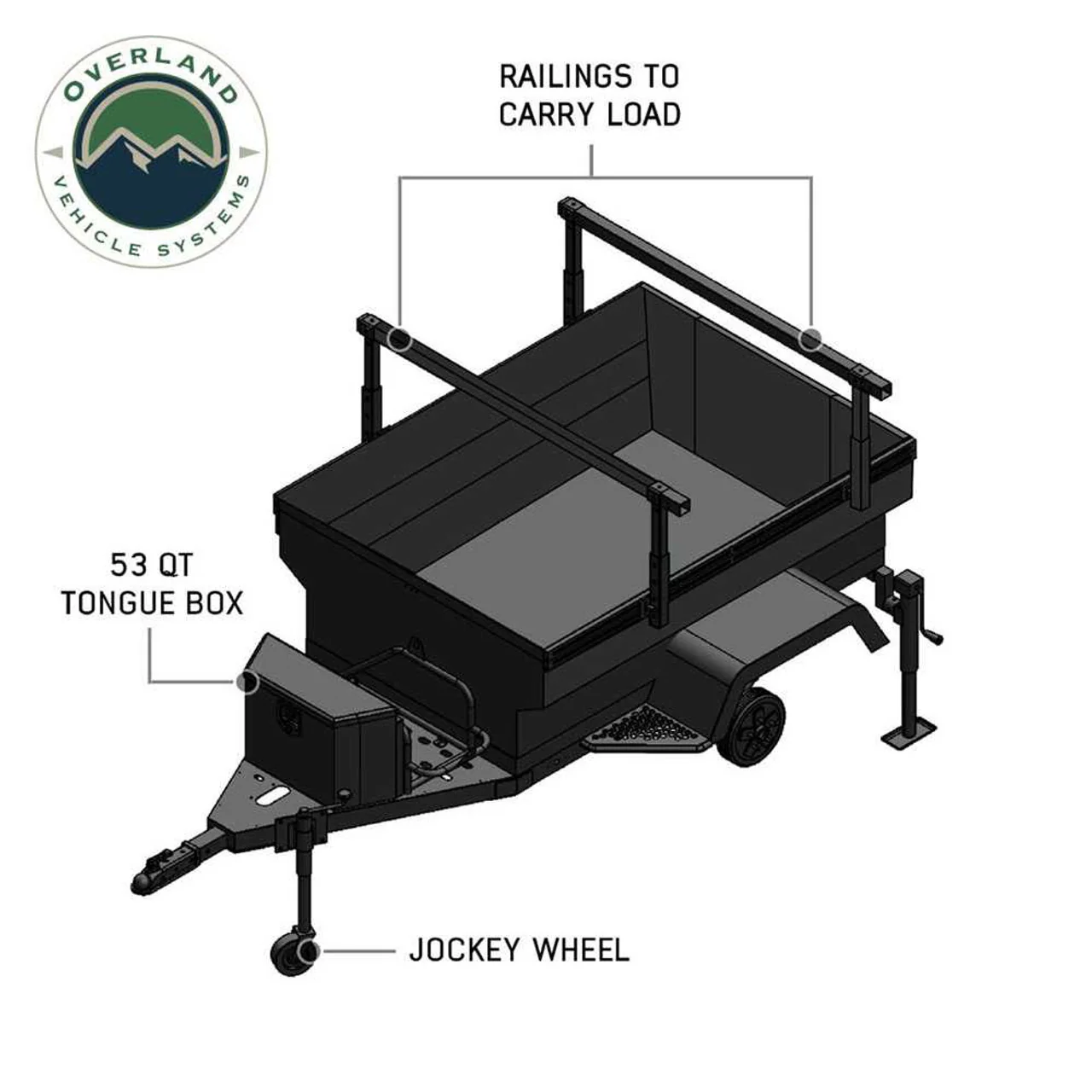

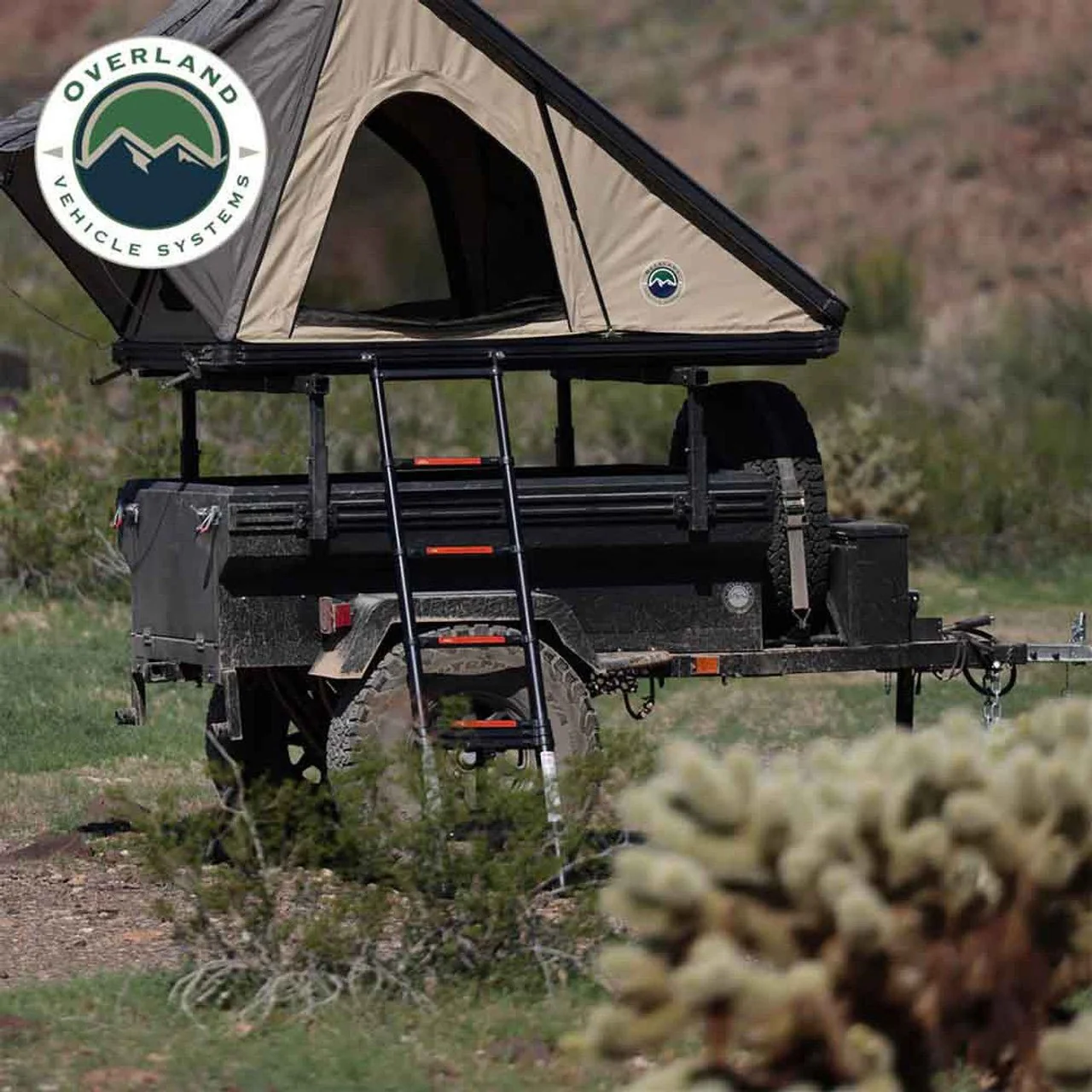

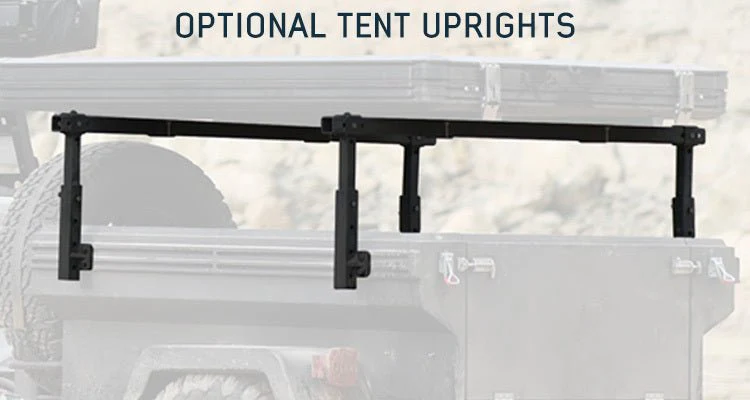

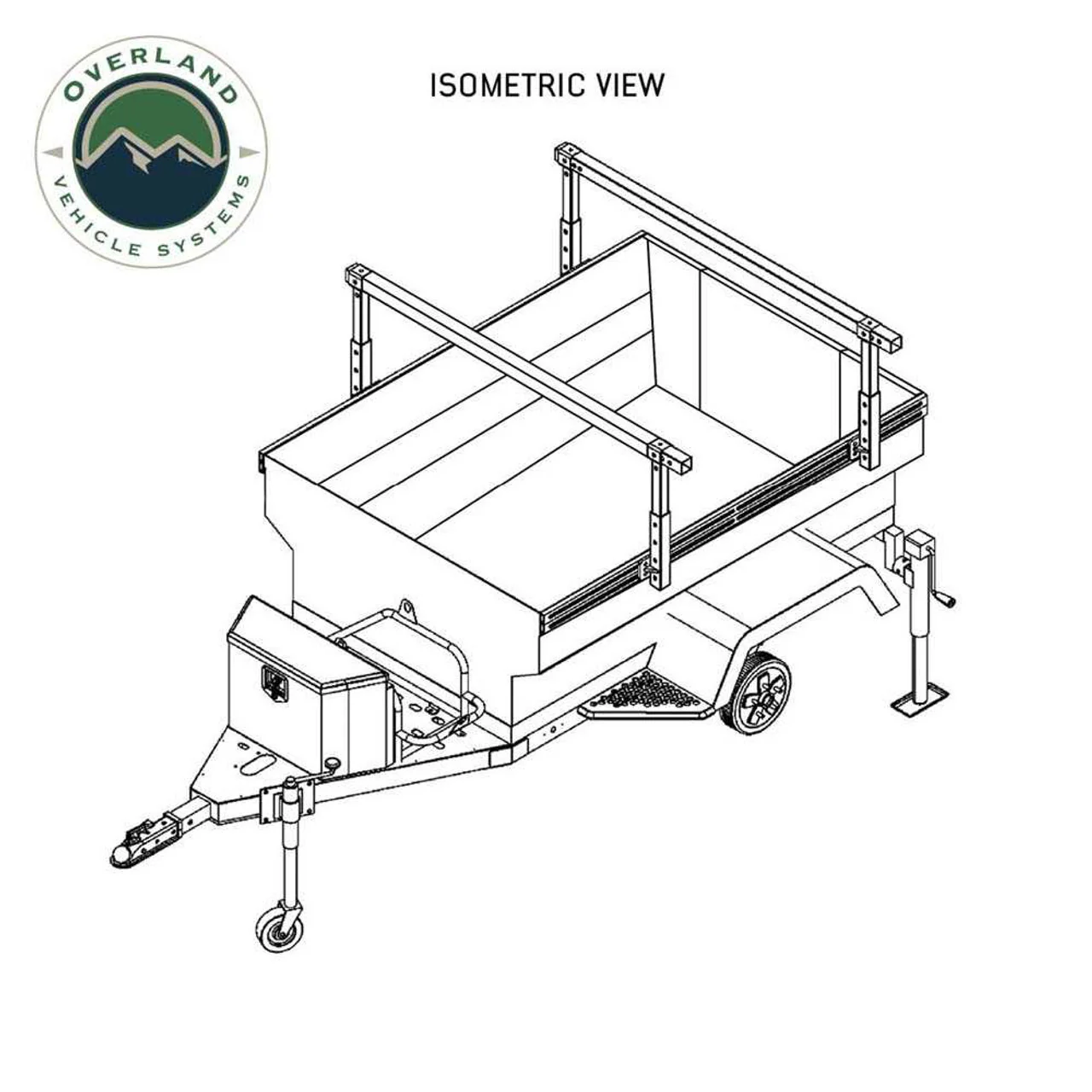

• Gear-Ready Setup: Crossbars and a 2" hitch coupler allow mounting rooftop tents, cargo boxes, bikes, and more.

• Safety First: Integrated 7-pin wiring harness and electric brakes offer safe towing—even on steep descents.

• Marine-Grade Hardware: Stainless steel components resist corrosion and ensure long-term reliability in any climate.

Whether you’re off the grid or at your favorite campsite, the Overland Vehicle Systems Off-Road Trailer is built to go further, carry more, and withstand anything nature throws your way. This isn’t just a trailer—it’s the ultimate companion for overlanders, adventurers, and gear haulers alike.

Specs



Specification	Details
Trailer Weight	1,250 lbs
Cargo Weight Capacity	2,014 lbs

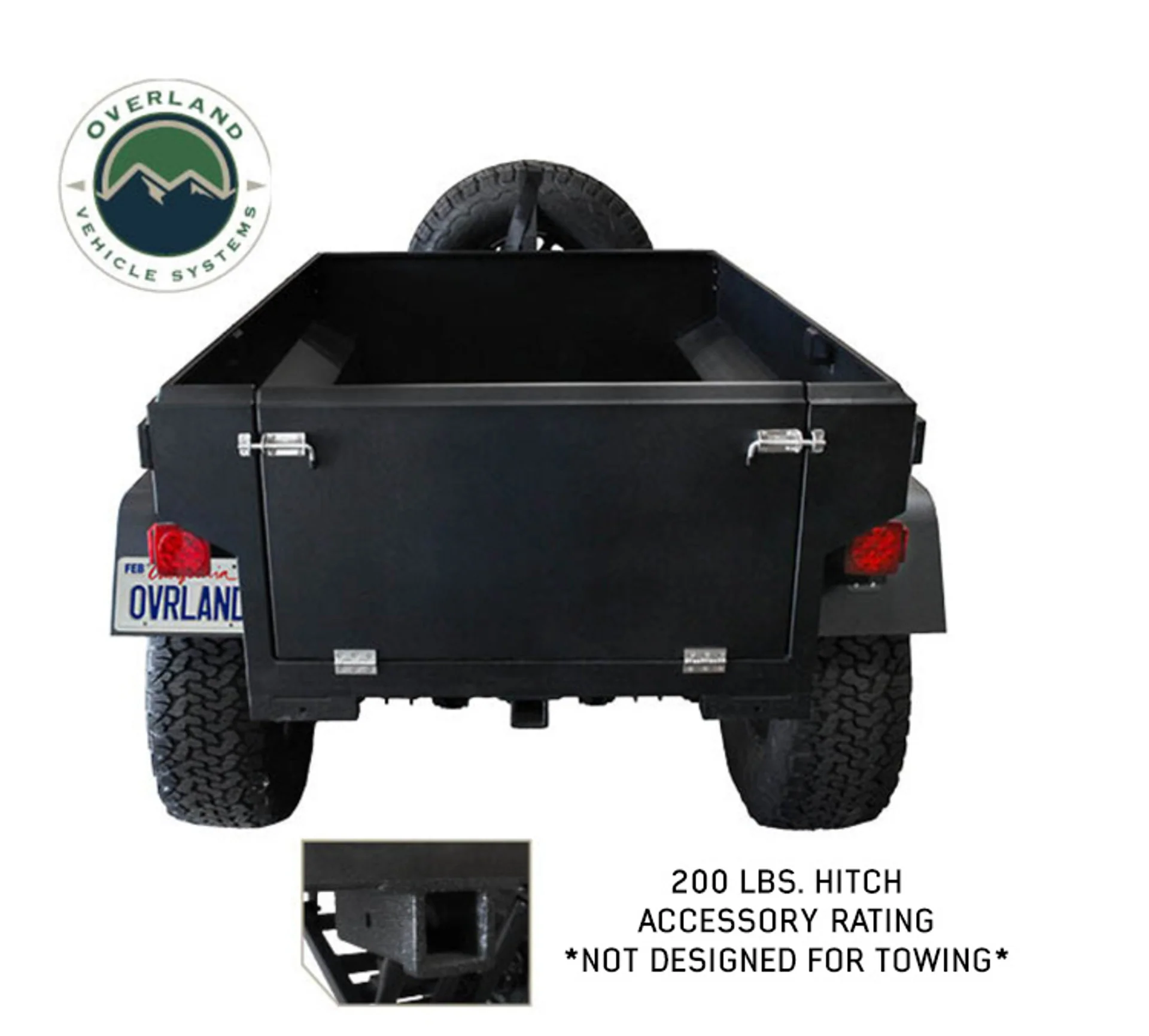

Accessory Hitch Tow Rating	200 lbs
Wheels & Tires	Includes 17" Steel Wheels & Tires
Tire Size	265/70/17

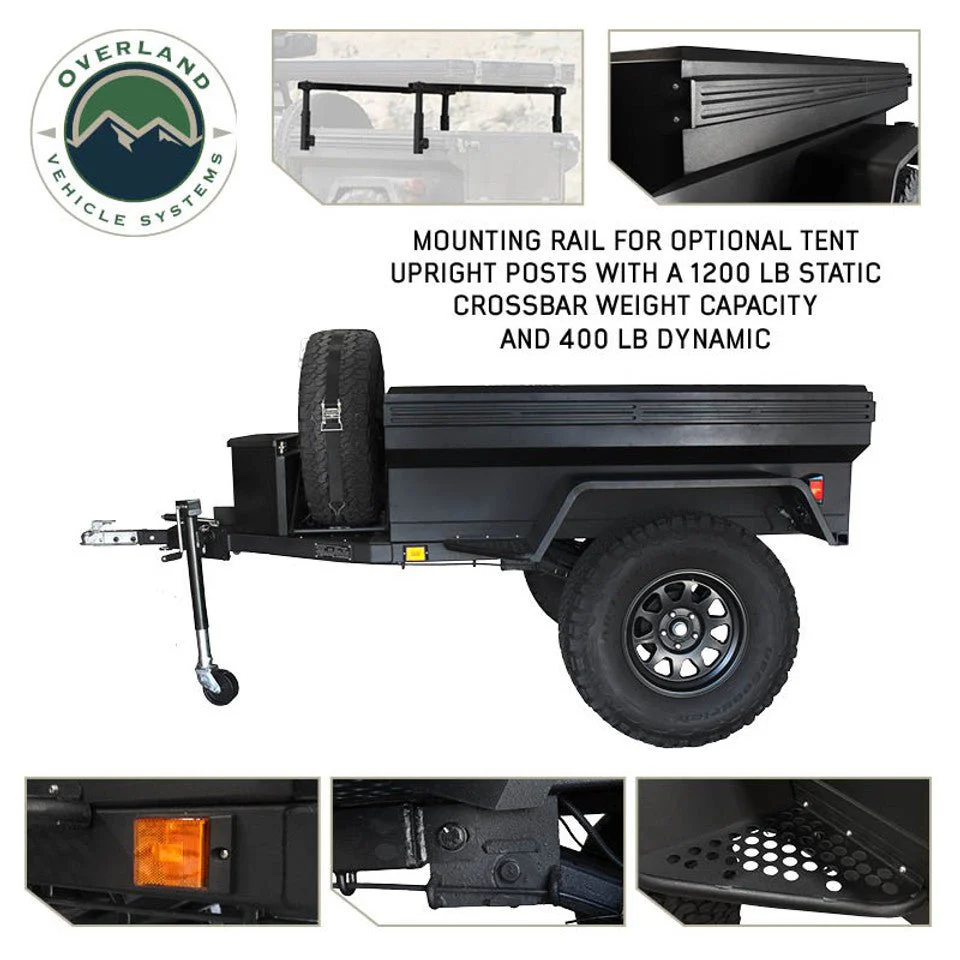

Crossbar Weight Capacity	800 lbs
Tailgate Weight Capacity	150 lbs
Warranty	Limited Lifetime Warranty



Features

• Integrated Breakaway System for Failsafe Safety
• Manual Parking Brake for Roll Control On Any Terrain
• 2" Front Receiver Accommodates Ball Coupler, Articulating Hitch, or Pintle Hook
• Removable Heavy-Duty Jockey Wheel and Tongue Jack

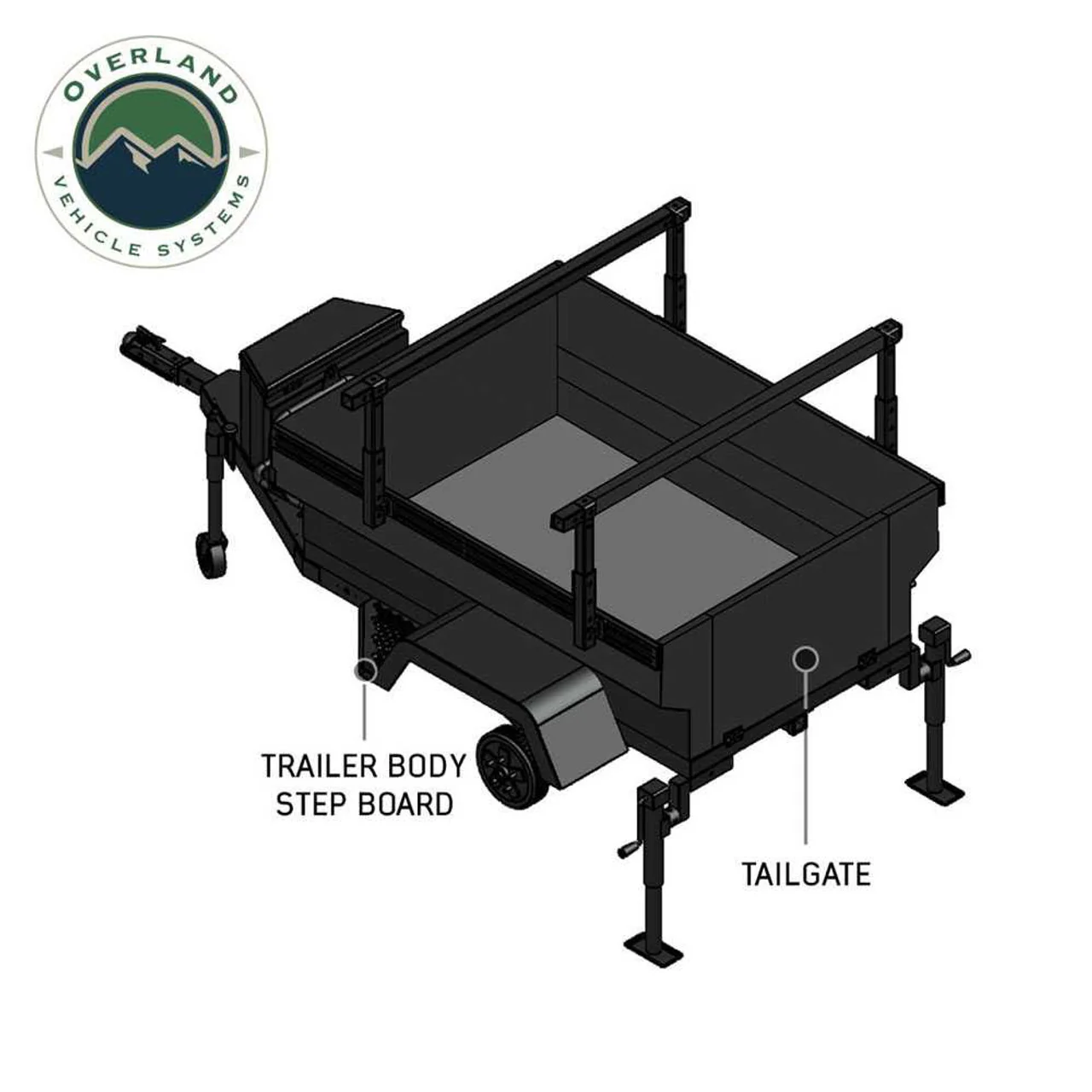

• Heavy-Duty Spring Pull Latch for Tailgate

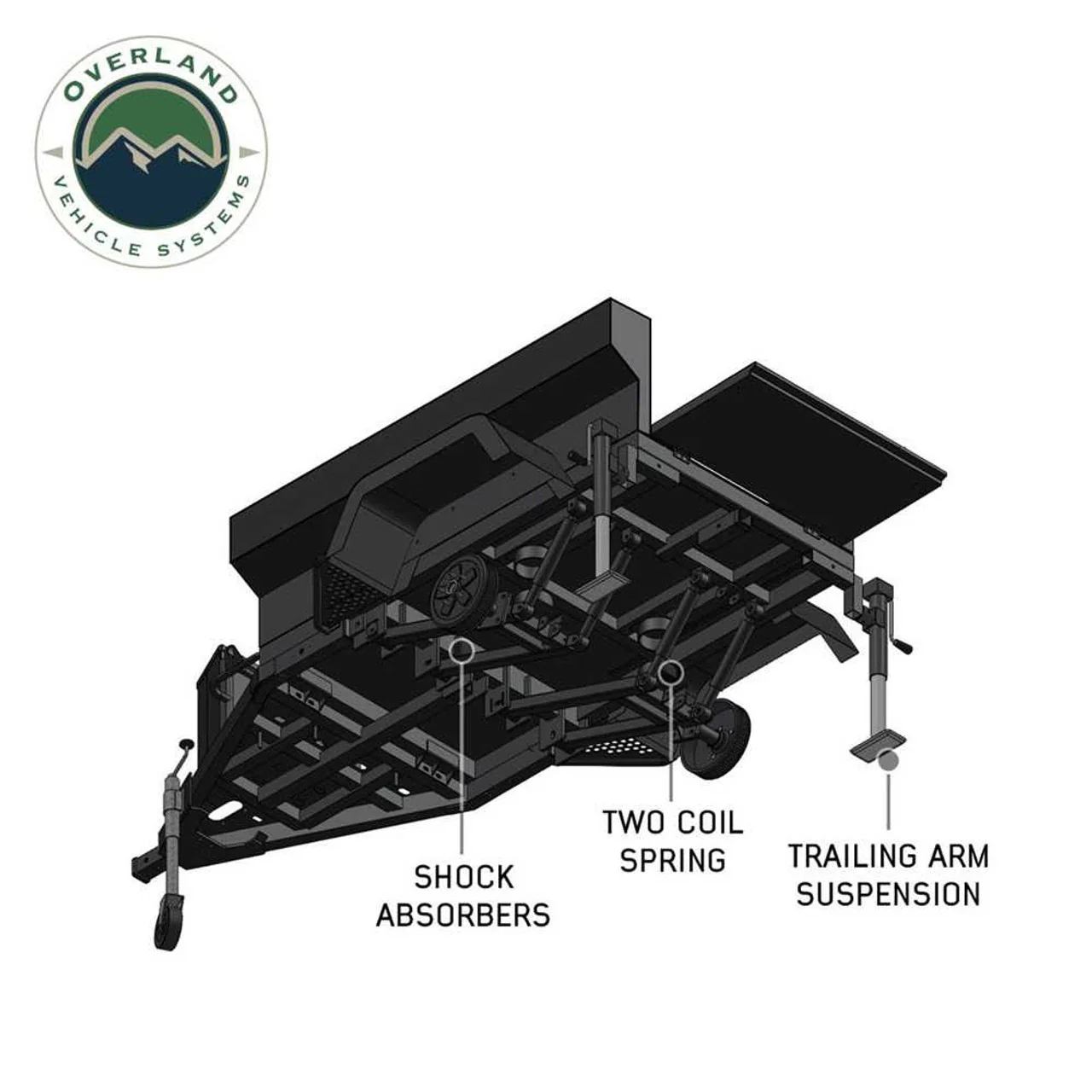

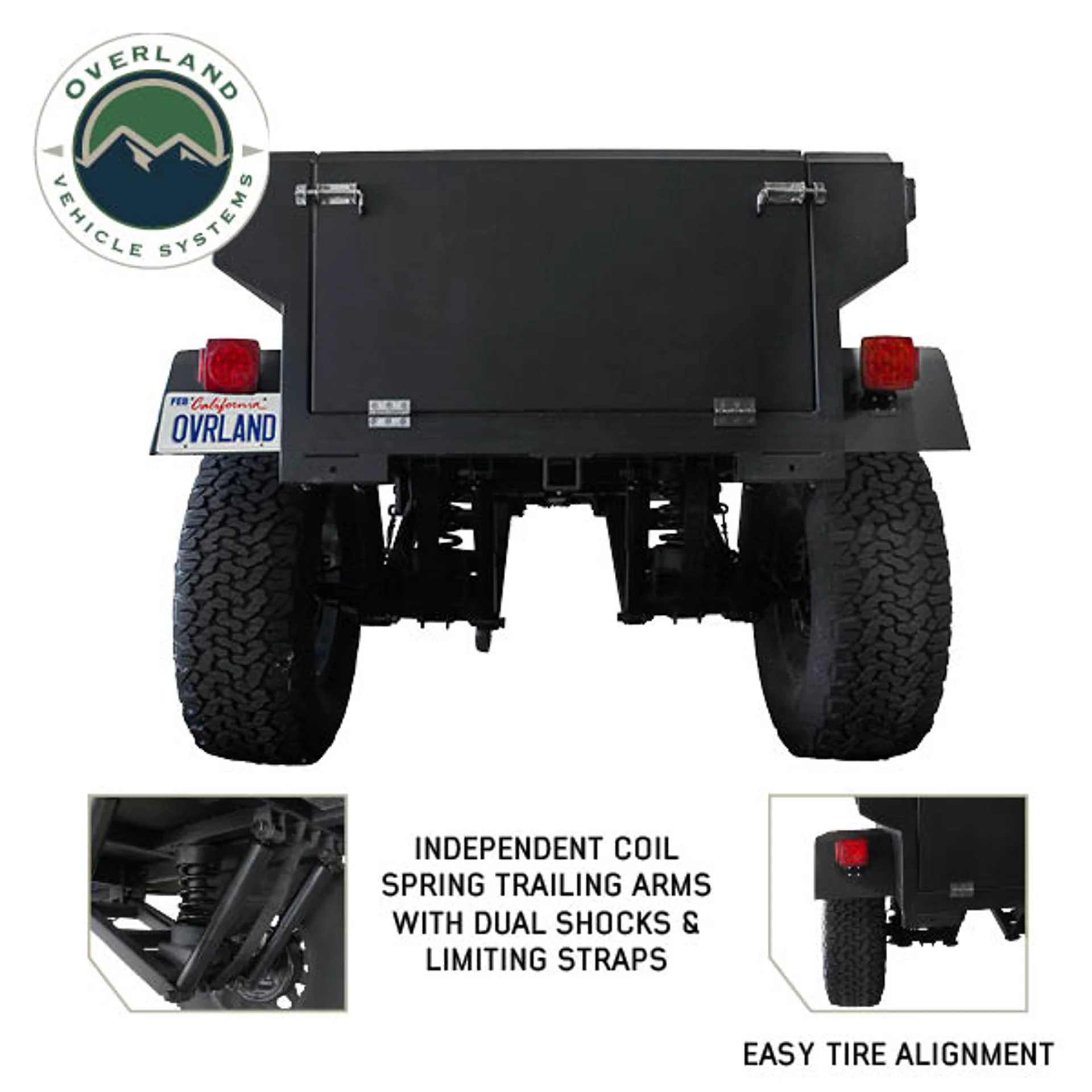

• Independent Coil Sprung Trailing Arms with Dual Shocks and Limiting Straps

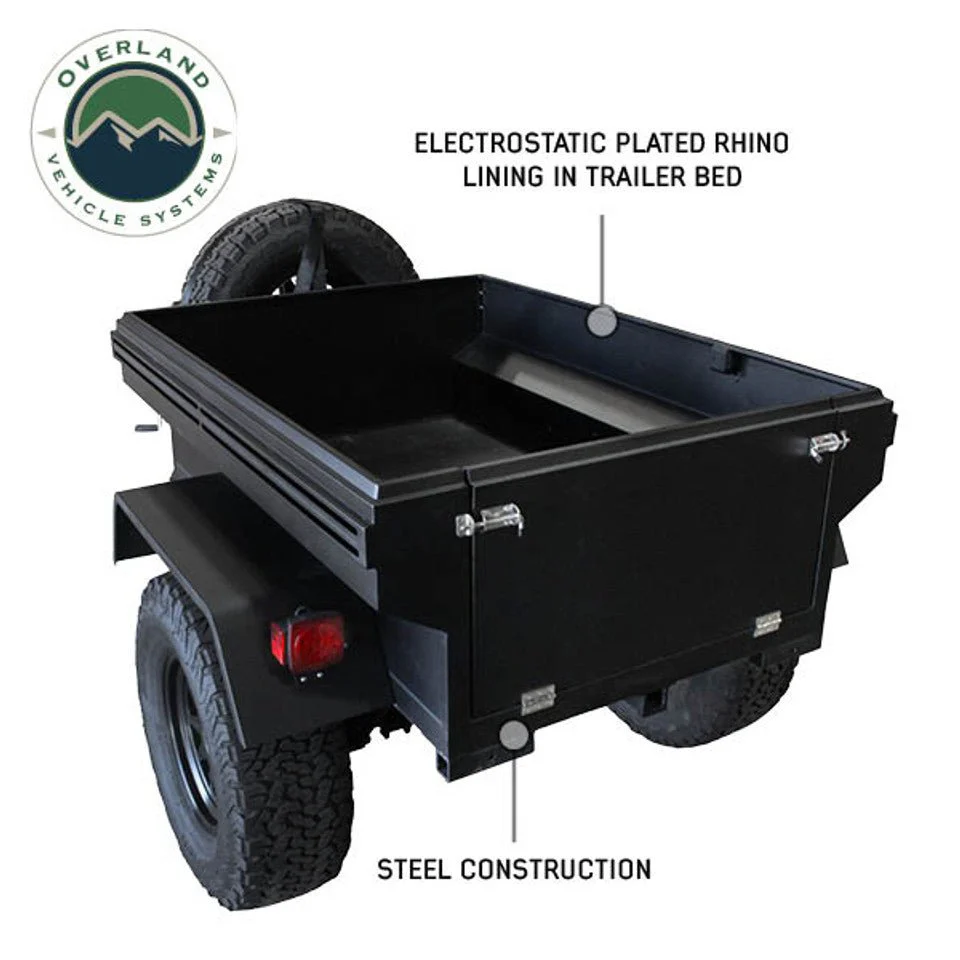

• XD Coating On Bed and Underside
• Wheels and Tires Included
• Manual Parking Brake with Electric 10" Drum Brakes
• DOT Tail Light/Brake Light and Side Markers
• 7-Pin Wiring Harness Designed to Integrate w/ Vehicle Wiring
• 7" of Travel Provides Better Off-Road Performance
• Steel Construction
• Marine-Grade 304 Stainless Steel Hardware

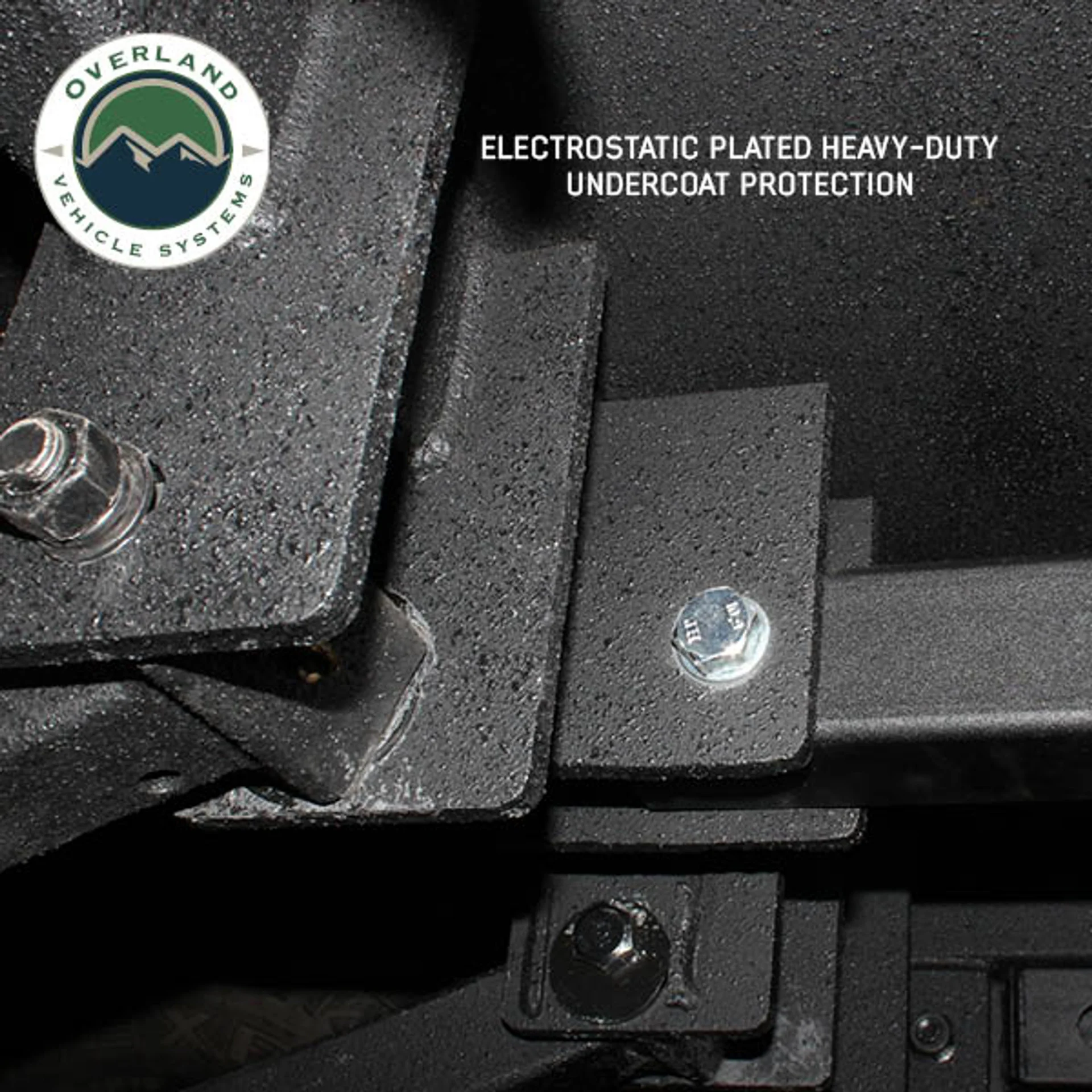

• Electrostatic Plated and Military-Grade Two-Stage Black Powder Coating Finish
• Quality Backed Warranty

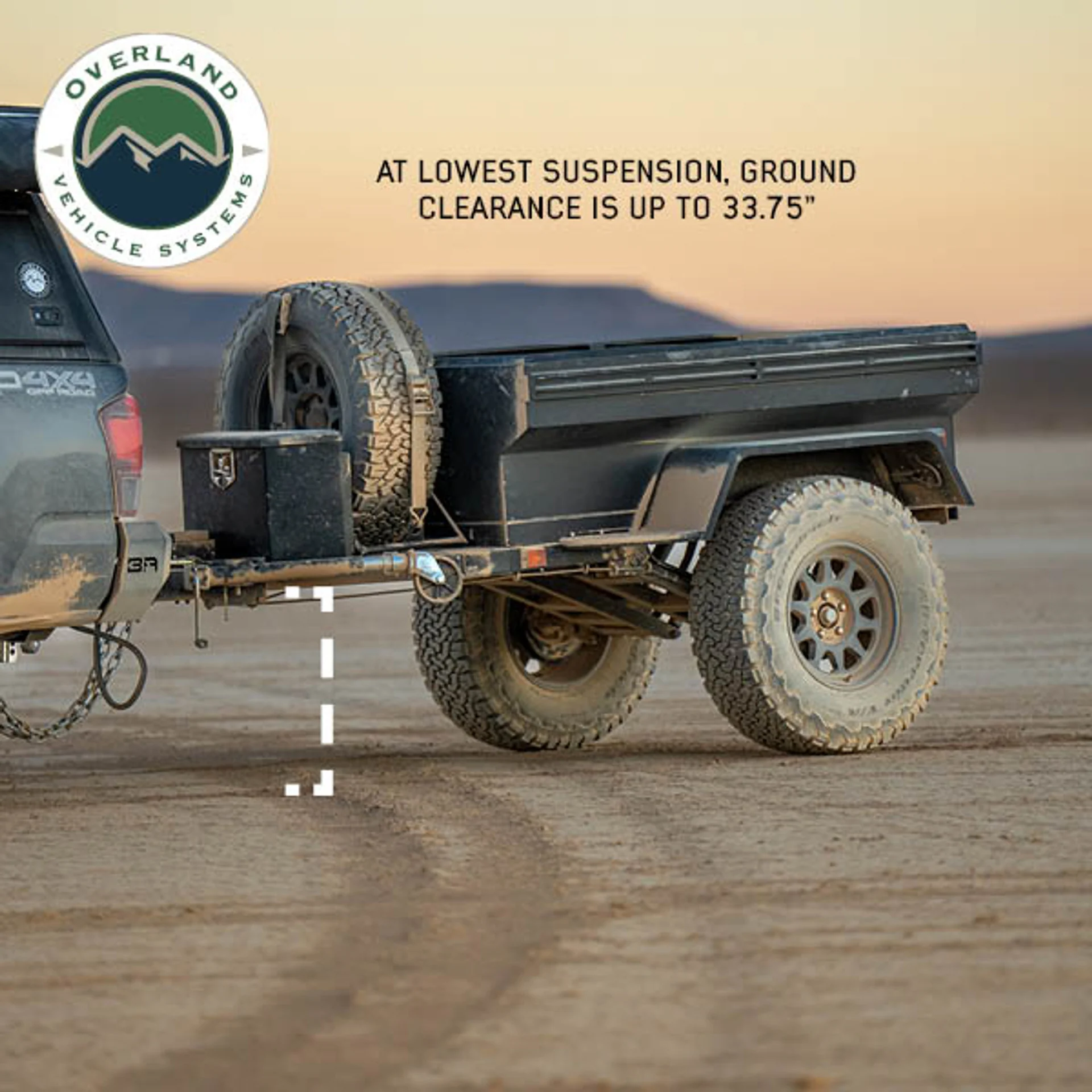

• At Lowest Suspension, Ground Clearance is up to 33.75" with 37" Tires.
• 11' Turning Radius
• Trailer is a Kit and must be assembled
