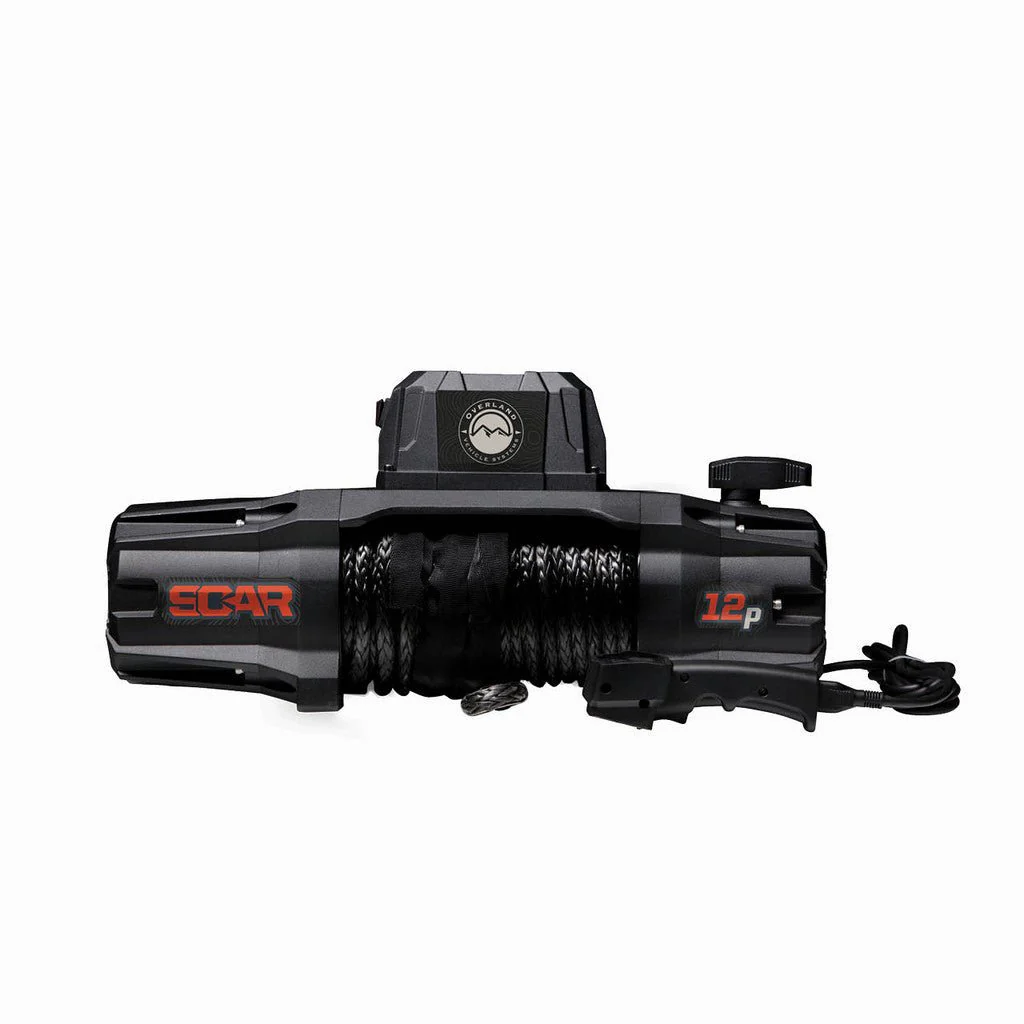

Overland Vehicle Systems S.C.A.R. 12S Wireless Winch – Model 19129901. Built for serious recovery power with a 12,000 lb line-pull rating, synthetic rope, full wireless control and engineered for modern overlanding builds.

• 12,000 lb single-line rated pull
• Heavy-duty series-wound motor with high line speed
• IP68-rated waterproof & dust-proof construction
• Includes 3/8" x up to ~90’ (or manufacturer spec) synthetic rope + fairlead
• Wireless remote + optional plug-in wired control lead
• 3-stage planetary gear train, low D-B output, rotating ring-gear clutch
• Standard 10" × 4.5" mounting bolt pattern for easy fitment
• Limited lifetime mechanical / 7-year electrical warranty included

---

Why Choose the S.C.A.R. 12S?

When the trail gets tough and you’re committed to overlanding, the S.C.A.R. 12S puts the performance in your build. With heavy gauge wiring, a high horsepower motor, and IP68 rating protecting the internals, this winch is made to withstand water crossings, mud, and deep scrambles. Coated in black for stealth-good looks and engineered to mount universally, it’s as ready for your bumper as you are for the adventure.

Key Features

• High-Output Motor: Powerful series wound motor gives strong pulls under load and fast recovery speed when you need it.
• Weather-Sealed: IP68 rating means water, mud and dust don’t stop you from getting it done.
• Wireless Control: Standard wireless remote with long-reach plug-in lead gives flexibility on-site.
• Synthetic Rope: Lightweight, strong and safer than steel cable; paired with aluminum hawse for smooth spooling.
• Universal Fit: Standard 10" x 4.5" mount pattern fits most aftermarket bumpers; easy bolt-in replacement or upgrade.
• Trusted Warranty: Limited lifetime mechanical + 7-year electrical ensures reliability you can count on.

Specifications

• Single Line Rated Pull: 10,000lb
• Motor: 6.5hp Series Wound
• Waterproof: IP68 Rated
• Voltage: 12V
• Control: Wireless Remote w. 11.5’ Lead with Built in Alkaline LR23A Battery
• Gear Train: 3 Stage Planetary Gear Systems with Ring Gear
• Gear Ratio: 181:1
• DB Output: Low
• Clutch: Rotating Ring Gear
• Braking Action: Automatic Out-Of-Drum
• Drum Size: 2.5” x 8.8”
• Mounting Bolt Pattern: 10” x 4.5”
• Overall Dimensions: 21.3” L x 6.3” W x 6.5” H (10" Tall with Solenoid)
• Line Speed: 42’ Per Minute
• Synthetic Line: 3/8” x 85’

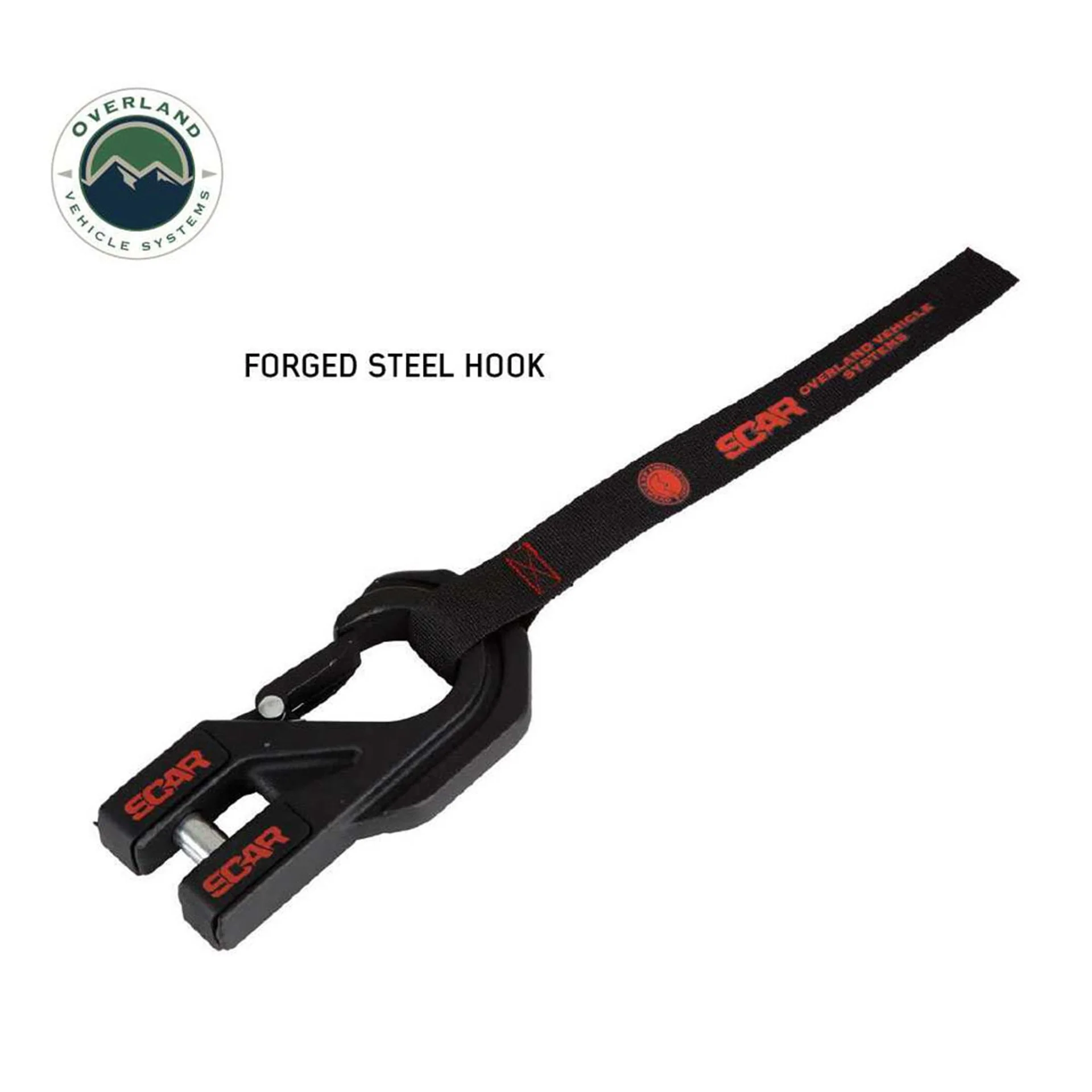

• Hook: Heavy Duty with Clip
• Fairlead: Aluminum Hawse Fairlead
• Electric Cable: 70” x 25 mm2
• Solenoid: 500A (Heavy – Duty)
• Recommended Battery: 650CCA Minimum.
• Weight: 64 lbs
• Warranty: Limited Lifetime Warranty Mechanical, 7 Year Electrical

In the Box

• S.C.A.R. 12S Winch (pre-spooled with synthetic rope)
• Wireless remote control
• Plug-in wired control lead
• Aluminum hawse fairlead (or included fairlead as spec’d)
• Heavy-duty hook with keeper clip
• Mounting hardware, power cables & solenoid
• Instructions and warranty paperwork

Installation

Fits standard 10" x 4.5" mounting pattern — compatible with most aftermarket winch-ready bumpers and custom mounts. Professional installation recommended. Always follow recovery safety protocols and guidelines.

Warranty

Backed by a Limited Lifetime Mechanical Warranty and a 7-Year Electrical Warranty from Overland Vehicle Systems. Keep your receipt and register your product for maximum protection.

Important: Always use rated recovery straps, a dampener, and clear the line path before operating. Ensure your vehicle’s battery and electrical system are in good health before heavy pull events.
