Overland Vehicle Systems S.C.A.R. 12,000lb Winch – Built for Power, Performance & Ultimate Recovery

Tackle the toughest recoveries with confidence using the OVS S.C.A.R. 12,000lb Winch with Cable Wire Rope. Engineered for extreme durability and strength, this winch delivers uncompromising performance when you need it most—whether you're buried in mud, stuck in snow, or navigating rugged trails.

---

Key Features: Unmatched Strength & Durability

• 12,000 lb Rated Line Pull
  Heavy-duty pulling power for full-size trucks, SUVs, and off-road rigs.

• High-Strength Steel Cable Rope
  Designed to resist abrasion and harsh terrain while offering long-term durability.

• Built for All-Terrain Use
  Optimized for recovery in mud, sand, snow, and rocky environments.

---

High-Performance Motor & Drivetrain

• 6.5 HP Series-Wound Motor
  Delivers impressive 42 ft/min line speed with low noise output for rapid recoveries.

• 3-Stage Planetary Gear System
  Precision-engineered for smooth and efficient power transfer under heavy load.

• Military-Grade Cone Brake
  Built into the motor for automatic engagement and zero-creep operation—even under reverse pulls or high-stress situations.

• Oversized 6061 Aircraft-Grade Aluminum Engagement Handle
  Easy to operate in all conditions, offering strength and reliability.

---

Why Choose the S.C.A.R. 12K Cable Winch?

• Reliable, consistent performance—even in extreme environments

• Rugged, off-road-ready construction

• Optimized for repetitive and high-stress recoveries

• Compatible with most aftermarket bumpers

---

When every pull counts, the Overland Vehicle Systems S.C.A.R. 12,000lb Cable Winch delivers the strength, speed, and control to get you back on the trail—no matter what the terrain throws your way.

Specs

• Single Line Rated Pull: 12,000 lbs

• Motor: 6.5 HP Series Wound

• Waterproof Rating: IP68

• Voltage: 12V

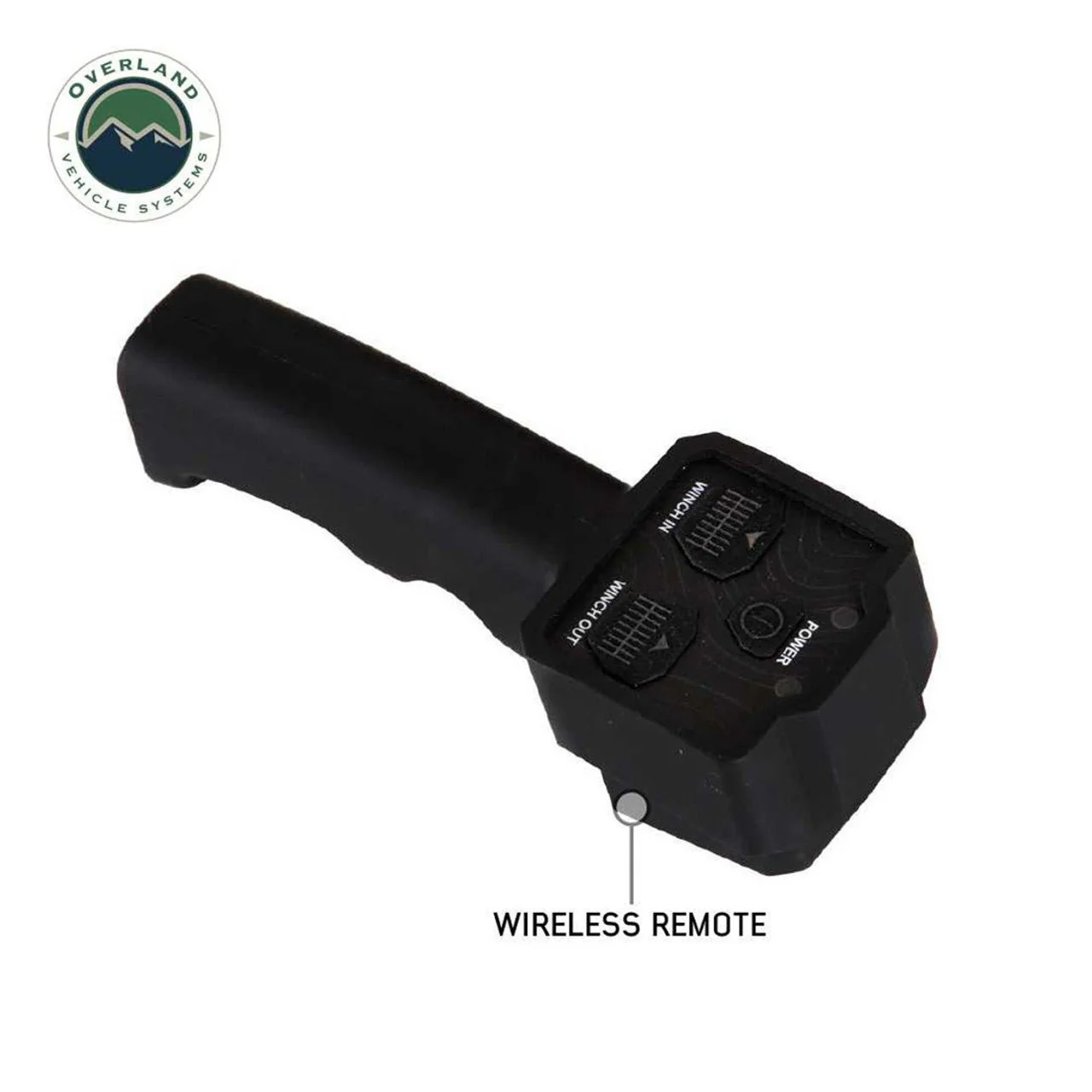

• Remote Control: Wireless with 11.5’ lead, built-in Alkaline LR23A battery

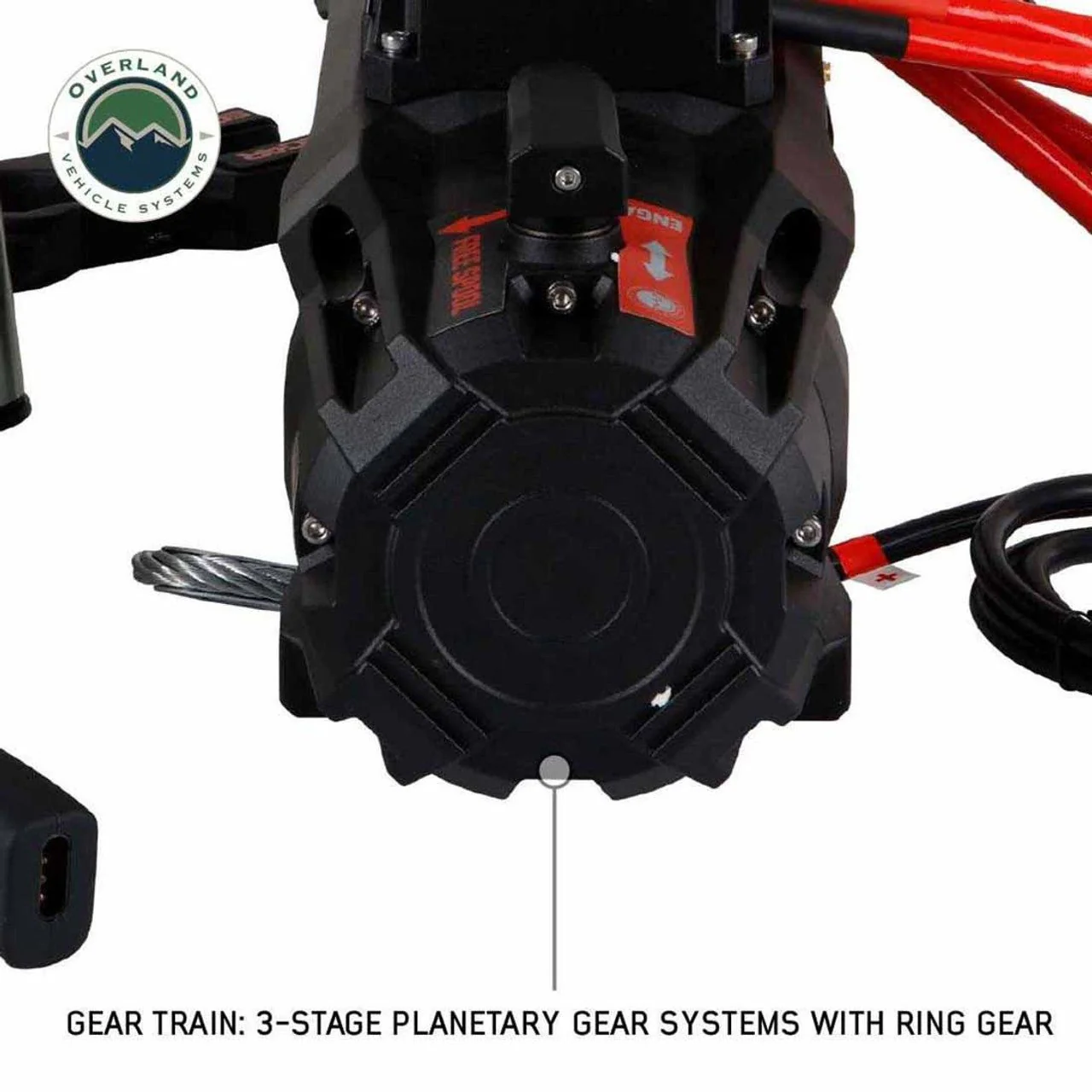

• Gear Train: 3-Stage Planetary with Ring Gear

• Gear Ratio: 218:1

• Noise Output: Low dB

• Clutch: Rotating Ring Gear

• Braking Action: Automatic Out-of-Drum

• Drum Size: 2.5” x 8.8”

• Mounting Bolt Pattern: 10” x 4.5”

• Dimensions: 21.3” L x 6.3” W x 7.9” H

• Line Speed: 42 feet per minute

• Steel Cable: 3/8” x 85’

• Hook: Heavy-duty with safety clip

• Fairlead: 4-way roller

• Electric Cable: 70” x 25 mm²

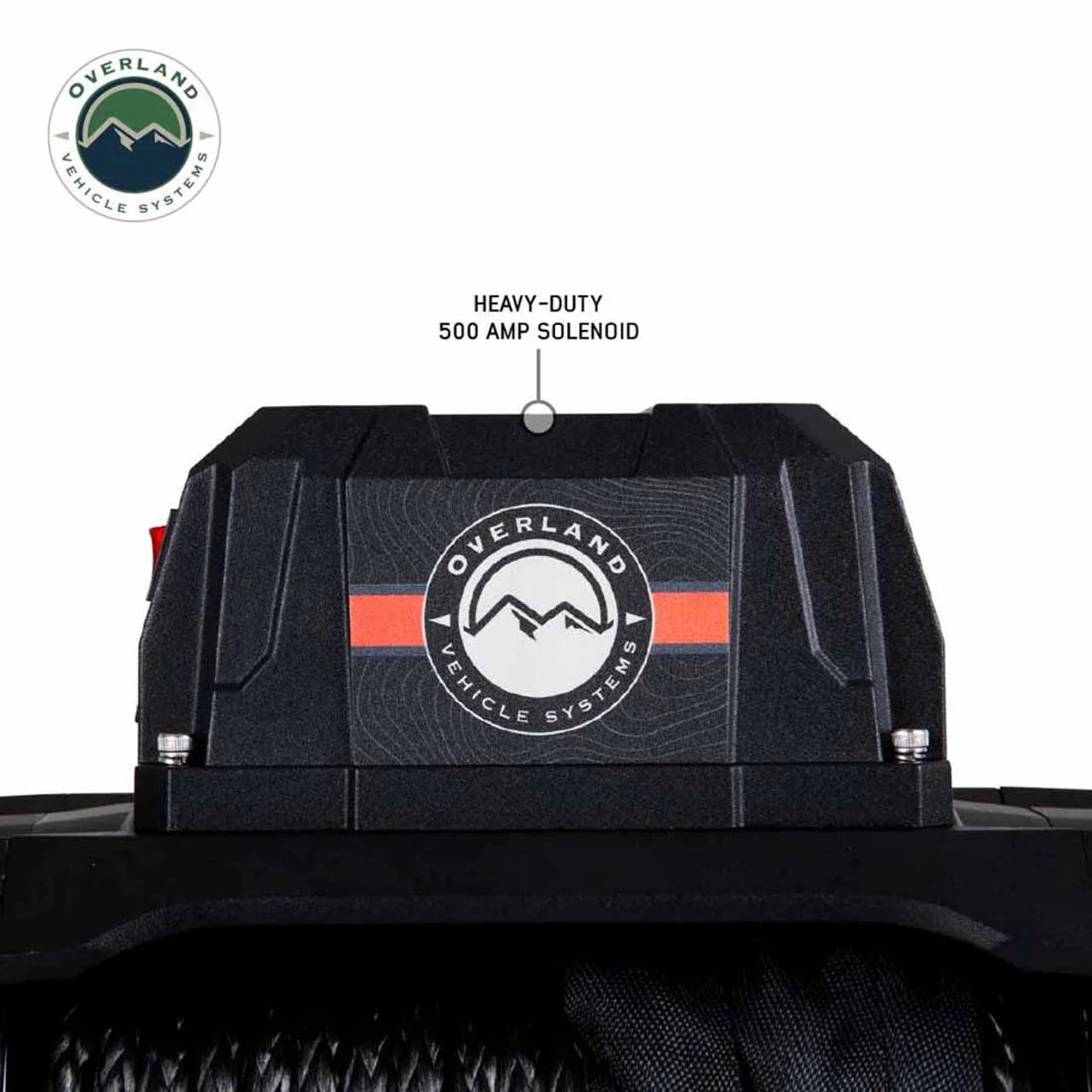

• Solenoid: 500A (Heavy-Duty)

• Recommended Battery: 650 CCA minimum

• Weight: 86 lbs

• Warranty: Limited Lifetime (Mechanical) / 7-Year (Electrical)

Features

The Overland Vehicle Systems S.C.A.R. 12,000lb Winch with Steel Cable is built to handle the toughest recovery situations with confidence and ease. Featuring a powerful 6.5 HP Series Wound motor, a 3-stage planetary gear system with ring gear, and IP68-rated waterproofing, this winch is engineered for extreme conditions and reliable performance.

It includes an integrated wireless remote with an 11.5’ removable lead and a built-in lithium battery for versatile control. The winch mounts easily with a standard 10” x 4.5” bolt pattern and includes a heavy-duty hook and 85’ of 3/8” steel cable to handle demanding loads with durability and strength.

A 500A heavy-duty solenoid ensures consistent power delivery in all weather conditions, while the ergonomic clutch lever and 12V operation allow for smooth, dependable use—even when the engine is off.

---

Key Features:

• 12,000 lb rated line pull

• 6.5 HP Series Wound Motor

• 3-Stage Planetary Gear System

• IP68 Waterproof Rating

• Wireless Remote with 11.5’ lead and lithium battery

• Standard 10” x 4.5” mounting pattern

• 85’ of 3/8” steel cable and heavy-duty hook

• 500A heavy-duty solenoid

• 12V power source for operation independent of engine

• Ergonomic clutch lever for easy engagement

---

Whether you're tackling tough trails or prepping for emergencies, the S.C.A.R. 12K Winch gives you the confidence and capability to go further. Designed for serious off-roaders, this winch is your ultimate recovery solution.

Warranty

Overland Vehicle Systems Overland Vehicle Systems S.C.A.R. 12K Winch with Steel Cable comes with a Limited Lifetime Warranty Mechanical, 5 Year Electrical.
