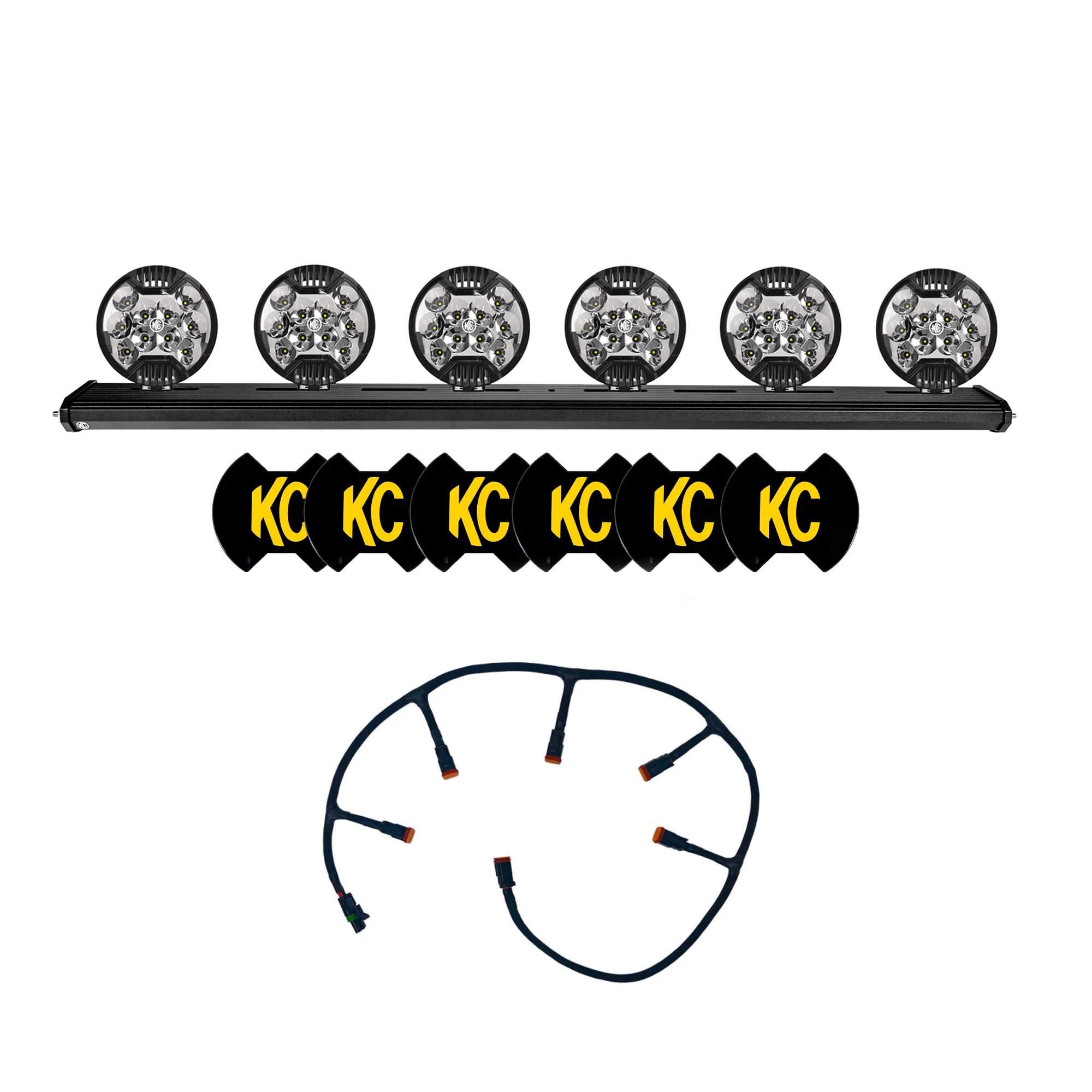

KC's 50" Xross Bar provides an overhead mounting solution to mount 6 SlimLite LED lights to many vehicle types. Spot Beams with good fill for powerful, balanced lighting. Includes wiring and switch.

Powered by efficient LED technology, this KC HiLites SlimLite LED Xross Bar delivers 43,560 lm of raw light output, 15,000 lx at 10 meters through a tightly focused beam that throws light far down-range, ideal for high-speed driving and long-distance visibility. The system runs at 50W per light, operating on 9V-32V, with a 25.0 a draw. A 5000K color temperature provides clear, natural-looking light, while IP68 sealing keeps moisture, dust, and debris out for true off-road durability.

Slotted Mounting Holes

With pre-configured mounting holes, the Xross Bar can securely hold anywhere from 2 to 9 lights with ease. Slotted holes allows for extra customization and to accommodate a variety of light sizes. KC also offers 6-light overhead halogen or LED lighting kits, that allow you to mount and position 6 lights overhead with ease to provide powerful off road lighting output.

Integrated Wire Management

KC Xross bar

Features

• Designed to Securely Mount (6) 6" Halogen or LED Lights Overhead
• 6063 T6 Extruded Aluminum Construction
• Satin Black Powder Coat Finish
• Low Profile Aerodynamic Design to Reduce Drag and Wind Noise
• Can be Mounted Directly in Place of Any Standard 50" Overhead LED Light Bar
• LED Light Kits Use Xross Bar Specific Wiring Harnesses for a Clean, Plug-N-Play Install
• Integrated Wire Management Using a Recessed Channel and R-Clips for a Clean Install

Light Performance

Photometric data per light:

• Raw Lumens: 43,560 lm
• Lux @ 10 Meters: 15,000 lx

Specifications

• SKU / Part Number: 97064
• UPC: 84709970642
• Product Family: SlimLite LED
• Product Type: Xross Bar
• Category: Off-Road Light
• IP Rating: IP68
• Beam Pattern: Spot
• Light Temperature: 5000K
• Voltage: 9V-32V
• Wattage: 50W
• Amp Draw: 25.0 a
• Dimensions: H - 1.911" x D - 3.605" x W - 51.39" (Universal 50" Xross Bar Only)
• Note: Maximum height will vary depending on size of light mounted to KC 50" Overhead Xross Bar Light Mount

Parts Included

• (1) 50" Extruded Aluminum Xross Bar Light Mount-Light Kits Include Wiring and Light Switches
• (10) Wire Management R-Clips

Warranty

Manufacturer Warranty: 5-Year Limited Warranty

This item has exceptions to the warranty period. Please visit kchilites.com/warranty for details and exceptions.

KC HiLites stands behind every product they build. For warranty claims or questions, contact Recon Recovery at sales@reconrecovery.com or 1-800-359-9397.

IMPORTANT: This product ships in two parts labled Box 1 and Box 2
