KC's Classic 6" Daylighter Halogen feature powerful 100W Halogen Bulbs in spread pattern, shock-mounted steel black housing, parabolic reflectors and glass lens. System includes complete relay wiring harness, switch kit, and light covers.

Built around proven H3 halogen technology, this KC HiLites Daylighter HAL 6" delivers 2,452 lm of raw light output, a peak intensity of 171,675 cd through a wide beam that fills your peripheral vision and lights up the trail edges as well as the road ahead. The system runs at 100W per light, operating on 9V-32V, with a 16.67 a draw. A 4000K color temperature provides clear, natural-looking light, while IP68 sealing keeps moisture, dust, and debris out for true off-road durability.

Performance Halogen and Precision Optics

6" Daylighter Halogens deliver up to 1,717 lx @10m of light output with a beam distance of 829 meters in a spread beam pattern. Tempered glass lens, precision optical reflectors with bright H3 Halogen bulbs combine to improve range and clarity.

Available Beam Pattern and Advantages

Different beam patterns offer specific lighting benefits to meet your lighting needs.

Spread Beam -Provides a balanced wider beam of light that increases peripheral visibility, as well improved forward facing light for an increased range of visibility.

Adjustable Mounting for Accuracy and Precision

Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.

Race Proven Strength & Durability

The race-proven steel housing combined with over 40 years of testing to provide a strong and durable combination that will withstand the most severe conditions.

Features

• 100W Halogen Bulbs
• Black Steel Housing
• Tempered Glass Lens
• Spread Beam Pattern

Light Performance

Photometric data per light:

• Raw Lumens: 2,452 lm
• Peak Candela: 171,675 cd
• Lux @ 10 Meters: 1,717 lx
• Beam Distance (Meters): Spread- 829m

Specifications

• SKU / Part Number: 234
• UPC: 84709002343
• Product Family: Daylighter HAL
• Product Type: 6"
• Category: Off-Road Light
• IP Rating: IP68
• Beam Pattern: Spread
• Light Temperature: 4000K
• Voltage: 9V-32V
• Wattage: 100W
• Amp Draw: 16.67 a
• Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"

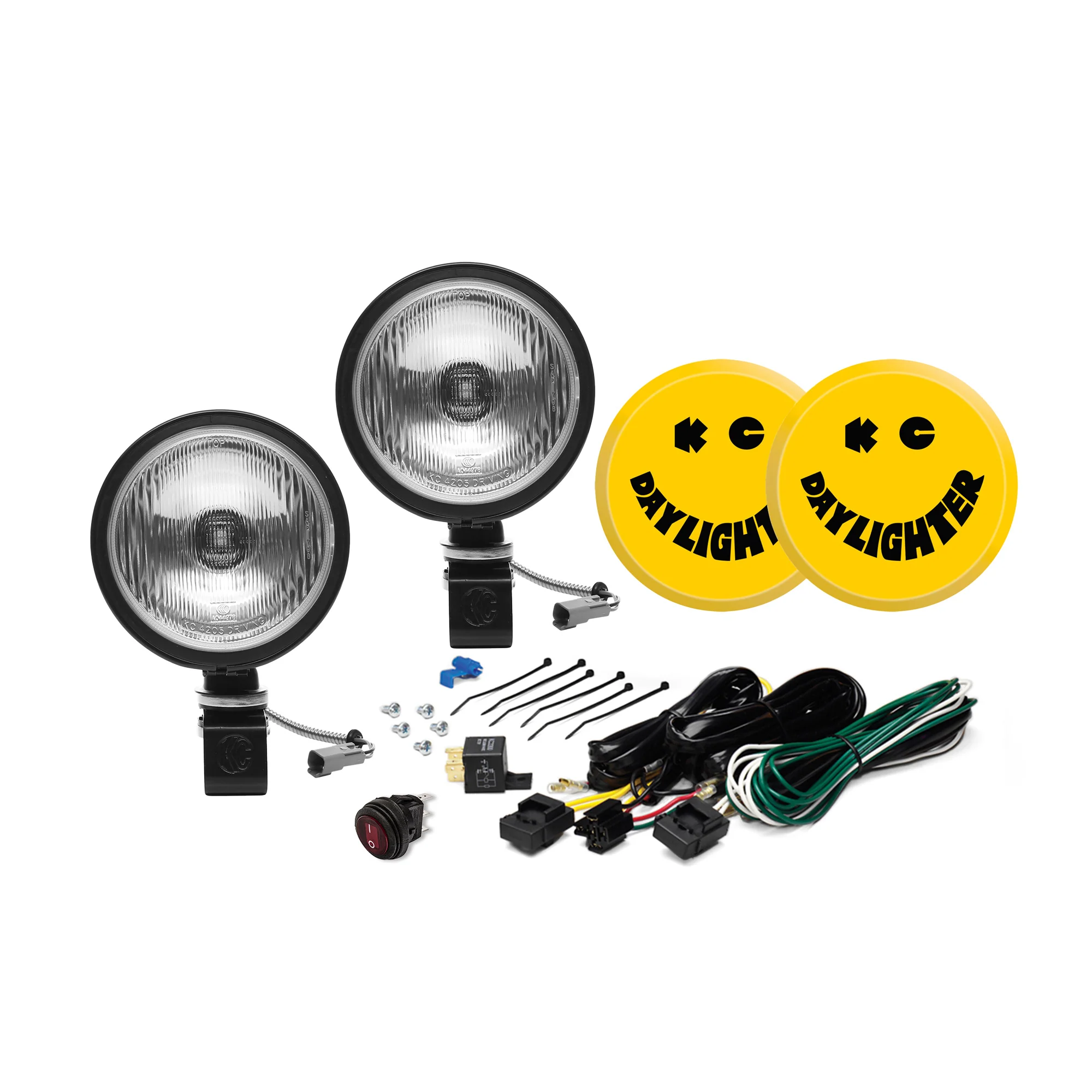

Parts Included

• (2) 100W 6" Daylighter Halogen lights
• Deluxe Plug-N-Play Wiring Harness with 30 amp LED Switch
• (2) Protective Light Covers

Warranty

Manufacturer Warranty: Limited Lifetime Warranty

This item has exceptions to the warranty period. Please visit kchilites.com/warranty for details and exceptions.

KC HiLites stands behind every product they build. For warranty claims or questions, contact Recon Recovery at sales@reconrecovery.com or 1-800-359-9397.
