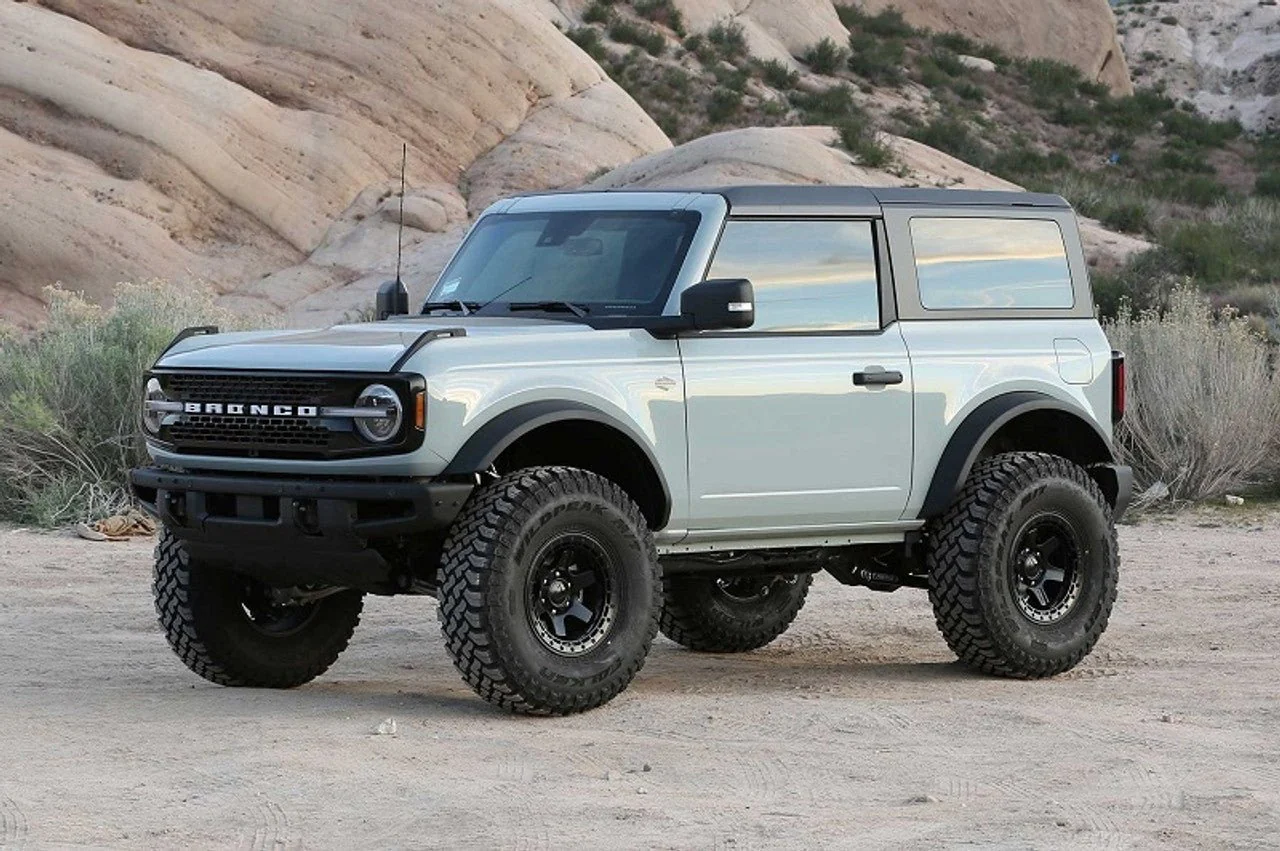

The Ford Bronco is back—and it’s more capable than ever. Designed as a true on- and off-road SUV, the 2021+ Bronco demands suspension components that can match its strength and performance. Elevate Suspension Tube Upper Control Arms were developed specifically to complement the Bronco’s rugged design, delivering enhanced durability, improved suspension geometry, and increased off-road capability—without cutting corners or inflating the price.

Built to the same standards as Elevate’s premium billet arms, these tube upper control arms feature massive 1-inch FK stainless steel uniballs with heat-treated races and bodies, paired with custom-machined, heat-treated 17-4 stainless steel pins and caps for exceptional strength and long-term reliability. This combination provides smooth articulation, increased load capacity, and confidence in demanding conditions.

The arms themselves are constructed from CNC-bent 4130 chromoly tubing, measuring 1.25 inches in diameter with a .120-inch wall thickness, delivering outstanding rigidity and impact resistance for aggressive trail use and daily driving alike.

What truly sets Elevate apart is their innovative squeak-free bushing system. These bind-free bushings require zero grease and no maintenance, eliminating the annoying squeaks common with traditional bushings. Designed for longevity, the bushings are built to last and backed by a lifetime warranty for added peace of mind.

Elevate Tube Upper Control Arms increase strength, improve coil clearance, simplify alignment with built-in camber and caster correction, and maximize wheel travel—making them an ideal upgrade for lifted Broncos seeking improved handling and off-road performance. Finished in a durable two-stage gloss black powder coat with a clear topcoat, they deliver both corrosion resistance and a clean, aggressive appearance.

Key Features

• CNC-bent 1.25” diameter, .120” wall 4130 chromoly tubing

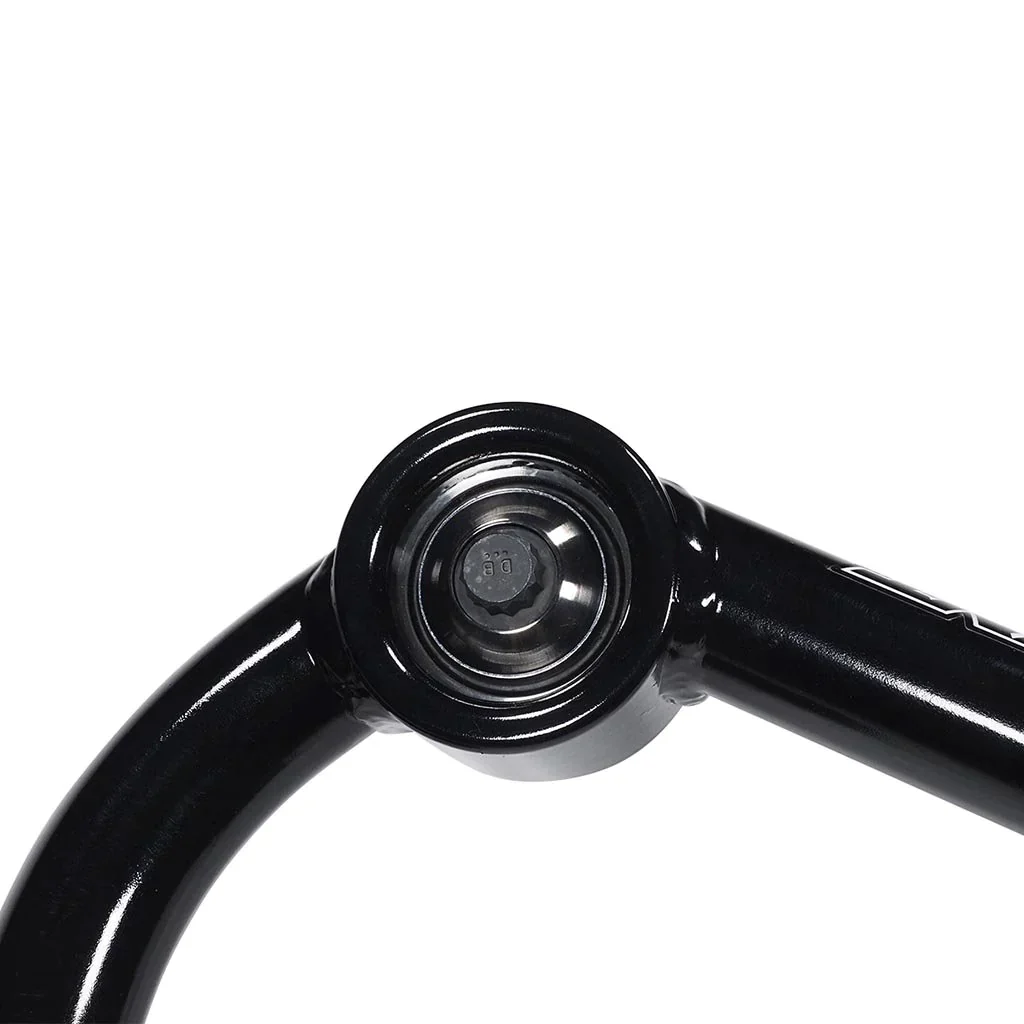

• 1” FK stainless steel heat-treated uniballs with PTFE liners

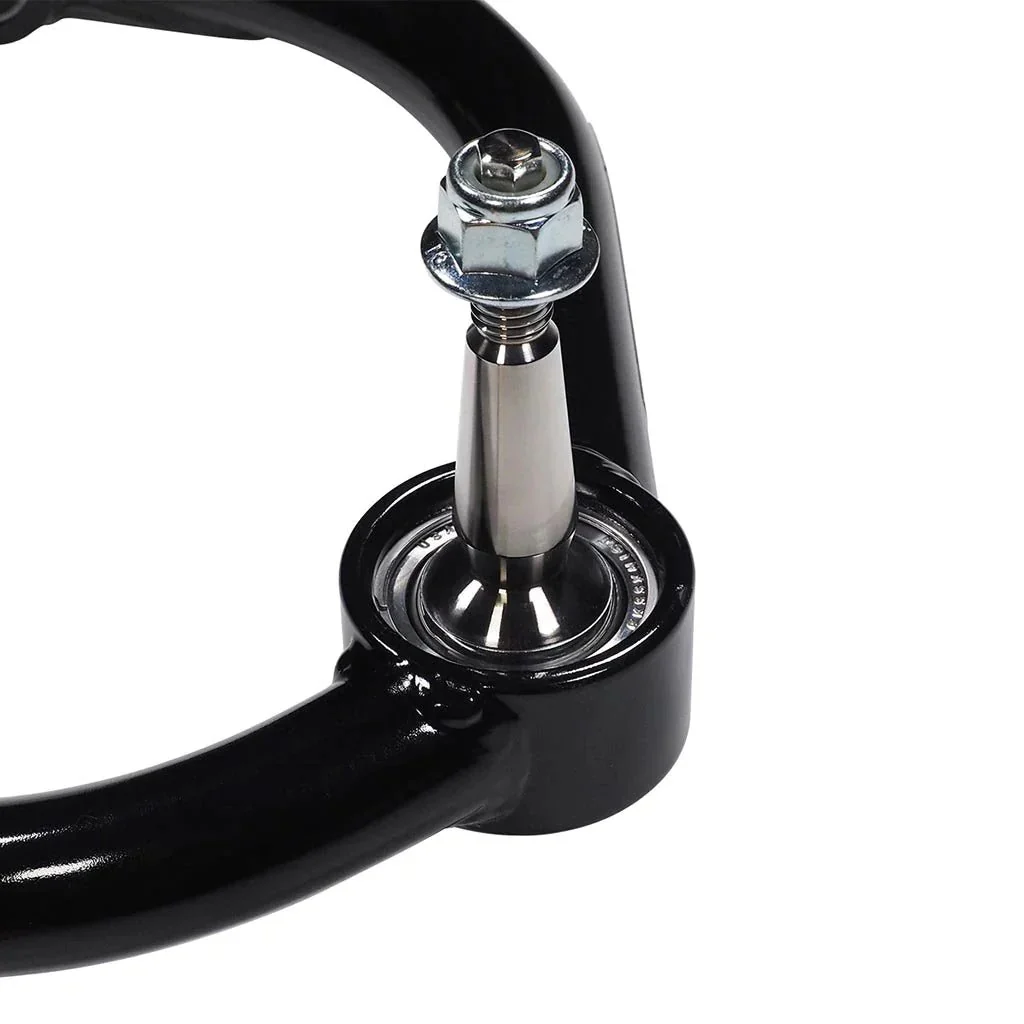

• Custom 17-4 stainless steel heat-treated pins and caps

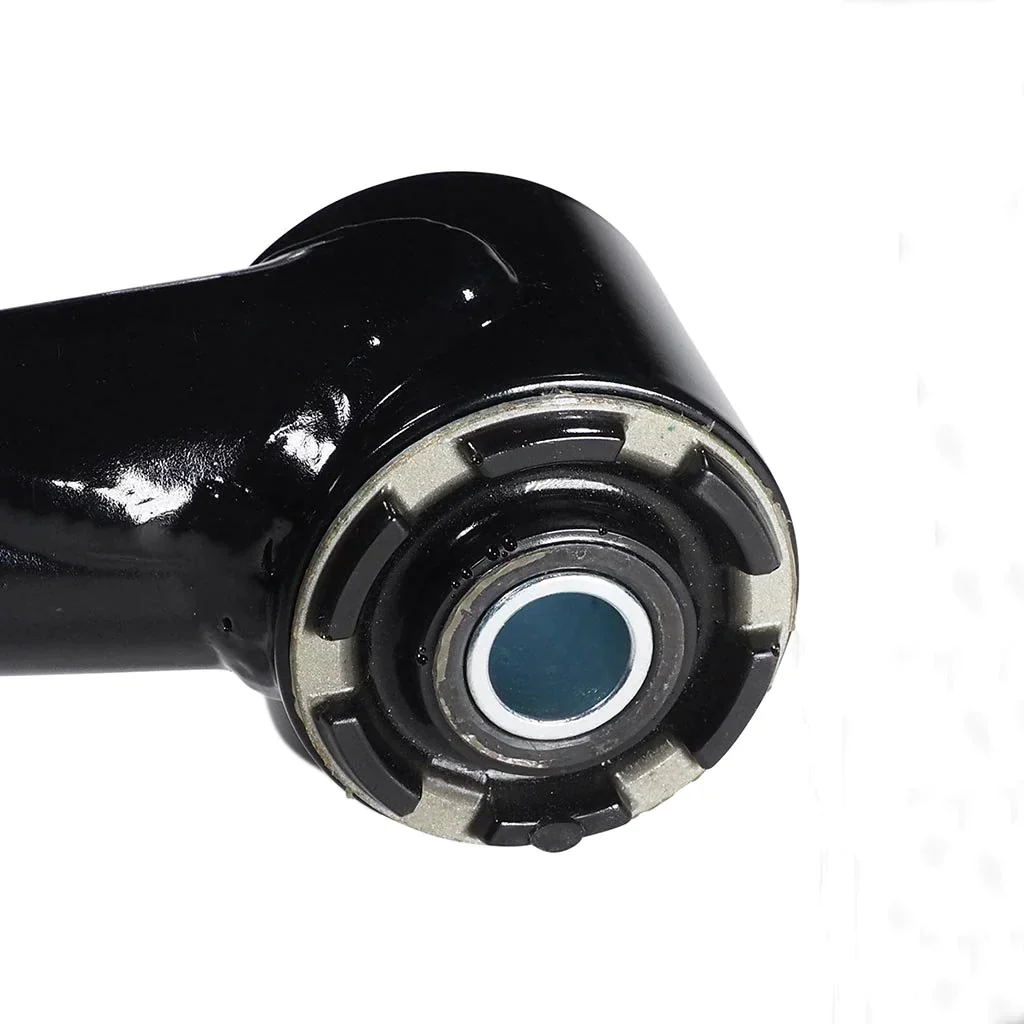

• Squeak-free, zero-maintenance bushings—no grease required

• Built-in camber and caster correction for proper alignment

• Designed for maximum coil clearance and wheel travel

• Reinforced bushing pivot barrels for added strength

• Durable two-stage gloss black powder coat with clear finish
